LRE 5550 (UT-03834) - Homelite Generator Brush Head - Generator Parts Diagram

Generator

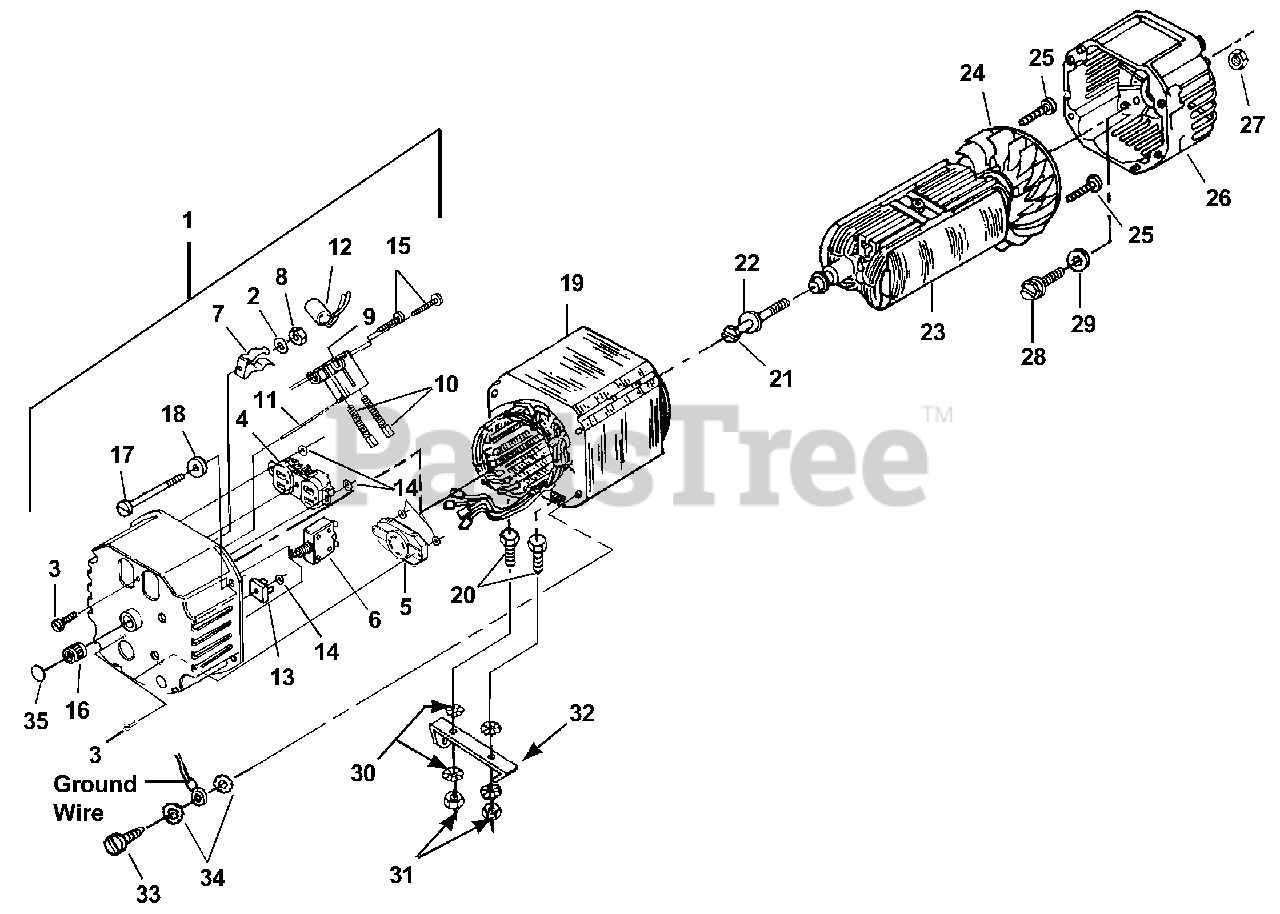

Brush Head - Generator Parts Diagram

  • Title
1

Homelite 06923

COMPLETE BRUSH HEAD

$

$

Currently unavailable

2

Homelite 83004

WASHER-Lock (ext.)
(Superseded to 83119)

$3.99

$

Usually ships in 3-7 days

0

3

Homelite 80630

SCREW-Mach. Pan Hd. (6-32 X 1/2")

$

$

Not available

4

Homelite UP03498

RECEPTACLE-Duplex (Nema 5-20R)
(Superseded to 51373)

$

$

Not available

5

Homelite UP03478

RECEPTACLE-Locking (120V/240V) (Nema L14-20R)
(Superseded to 46508)

$

$

Not available

6

Homelite UP03489

BREAKER-Circuit (20 amp.)
(Superseded to 09183)

$

$

Not available

7

Homelite 02435

CLIP-Spring Cap

$

$

Not available

8

Homelite 81002

NUT-Hex (6-32)

$

$

Not available

9

Homelite UP03449

BRUSH HOLDER

$36.99

$

Usually ships in 3-7 days

0

10

Homelite UP03736

BRUSH & RETAINER KIT

$

$

Not available

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 02860

CAPACITOR (w/Lead)

$

$

Currently unavailable

13

Homelite 95672

RECTIFIER

$37.99

$

Usually ships in 3-7 days

0

14

Homelite UP06528

WASHER-Shaft Retention
(Superseded to 02437)

$5.99

$

Usually ships in 3-7 days

0

15

Homelite UP03403

SCREW-Pan Hd. (6-19 X 3/4 )
(Superseded to 82526)

$

$

Not available

16

Homelite UP03450

BEARING-Needle
(Superseded to 03044)

$

$

Not available

17

Homelite UP03430

BOLT-Stator

$22.99

$

Usually ships in 3-7 days

0

18

Homelite UP03418

WASHER-Flat

$5.49

$

Usually ships in 3-7 days

0

19

$

$

Currently unavailable

20

Homelite UP03381

SCREW- Hex Hd. (5/16-18 X 3/4")
(Superseded to 80083)

$

$

Not available

21

Homelite UP03425

BOLT-Rotor
(Superseded to 4885207)

$

$

Not available

22

Homelite UP03407

WASHER-Lock (5/16")
(Superseded to 83002)

$4.49

$

Usually ships in 3-7 days

0

23

$

$

Currently unavailable

24

Homelite UP03737

FAN-Generator

$

$

Not available

25

Homelite UP03403

SCREW-Pan Hd. (6-19 X 3/4")
(Superseded to 82526)

$

$

Not available

26

Homelite 020269

END BELL
(Superseded to UP06695)

$

$

Not available

27

Homelite UP03400

NUT-Hex (1/4-20)
(Superseded to 81267)

$

$

Not available

28

Homelite UP03390

SCREW-Hex Hd. (5/16-24 X 3/4")

$

$

Not available

29

Homelite UP03412

WASHER-Lock

$

$

Currently unavailable

30

Homelite UP03413

WASHER-Lock (int./ext.)

$

$

Currently unavailable

31

Homelite UP03397

NUT-Hex (5/16-18)

$

$

Not available

32

Homelite UP03459

SUPPORT-Engine
(Superseded to 063781)

$

$

Not available

33

Homelite UP03406

SCREW-Taptite (10/24 X 3/4")
(Superseded to 82538)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 83121

WASHER-Lock (int./ext.)

$

$

Not available

35

Homelite UP03437

PLUG-Expansion
(Superseded to 02438)

$

$

Not available
