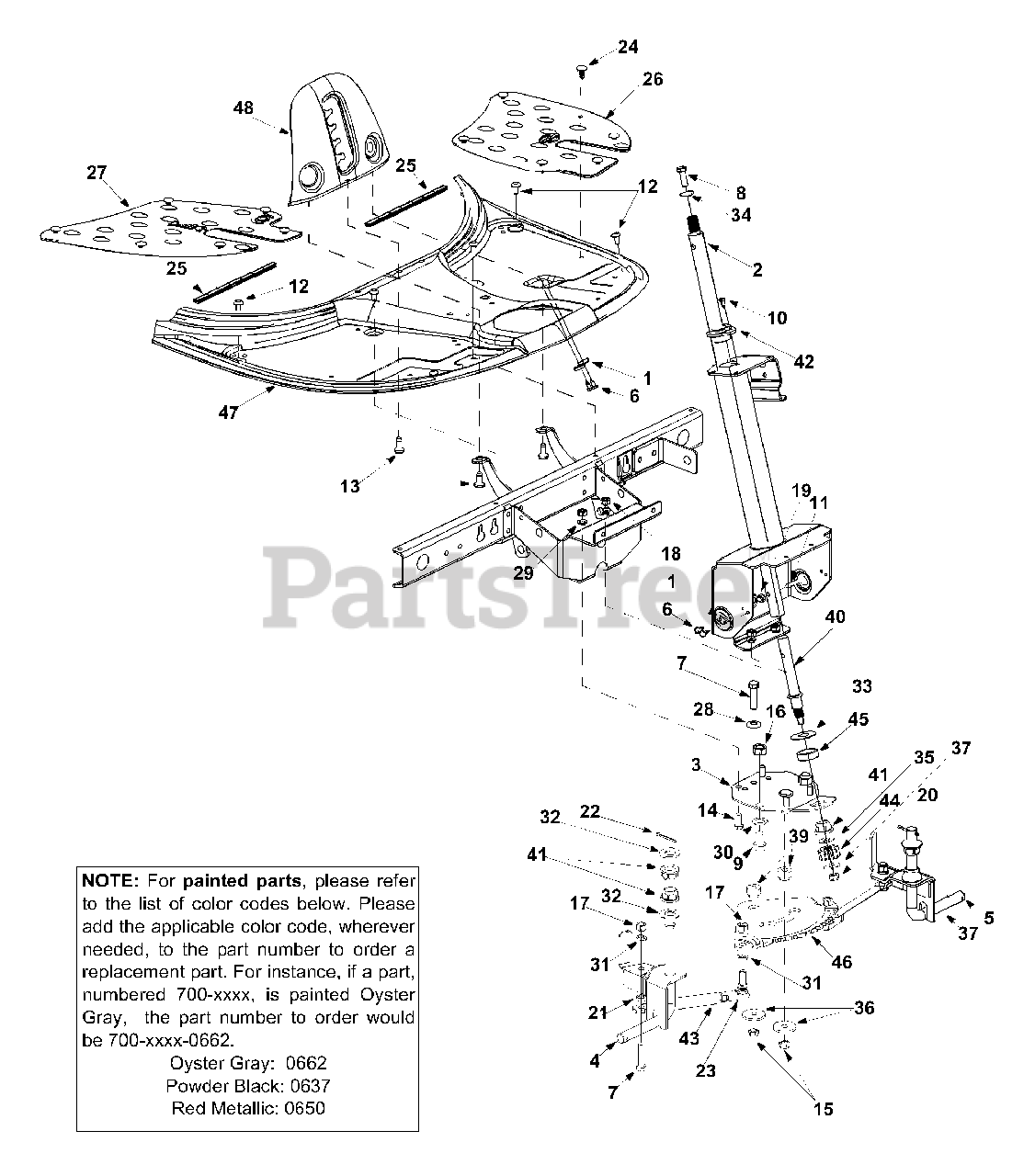

LR-927 (13A-344-190) - White Outdoor 27" Rear-Engine Riding Mower (2004) Steering Parts Diagram

27" Rear-Engine Riding Mower

Steering Parts Diagram

  • Title
1

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

2

White Outdoor 650-0007

Steering Tube Assembly
(Superseded to 650-0007-0637)

Variations

White Outdoor 650-0007-0637

TUBE ASSY-STEERING - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 683-0033A

Steering Support Bracket

$

$

Not available

4

White Outdoor 683-0178A

Front Axle Assembly: RH
(Superseded to 983-0178A)

$

$

Not available

5

White Outdoor 683-0179A

Front Axle Assembly: LH
(Superseded to 983-0179A)

$

$

Not available

6

White Outdoor 710-0224

Hex Screw AB
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0459A

Hex Screw 3/8-24 x 1.5" Gr.5 Sp.

$6.99

$

In Stock, Qty 8

0

8

White Outdoor 710-0643

Lock Screw 5/16-18 x 1.0" Gr.5

$6.99

$

In Stock, Qty 5

0

9

White Outdoor 710-0689

Hex Screw 1/2-13 x 0.75"

$6.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0837

Oval C-Sunk Screw #10-16 x 0.625"

$4.49

$

In Stock, Qty 5

0

11

White Outdoor 710-0958

Hex Screw 1/4-20 x 1.25 Gr.5 Sp.
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

12

White Outdoor 710-1017

AB Screw 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

13

White Outdoor 710-1611B

Self-Tapping Screw 5/16-18 x 0.75"

$6.99

$

In Stock, only 2 left!

0

14

White Outdoor 710-3008

Hex Screw 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-0116

Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

16

White Outdoor 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 13

0

18

White Outdoor 712-0267

Hex Nut
(Superseded to 912-3010)

$

$

Not available

19

White Outdoor 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

$4.49

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 20+

0

22

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 723-0156

Ball Joint
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

24

White Outdoor 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

25

$3.99

$

Usually ships in 3-6 days

0

26

White Outdoor 735-0674

Floor Pad: LH

$

$

Not available

27

White Outdoor 735-0266A

Floor Pad: RH

$

$

Not available

28

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

$4.49

$

In Stock, only 2 left!

0

31

$3.99

$

In Stock, Qty 20+

0

32

$4.49

$

In Stock, Qty 20+

0

33

$

$

Not available

34

White Outdoor 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

35

$4.99

$

In Stock, Qty 20+

0

36

$6.99

$

In Stock, Qty 7

0

37

$4.49

$

In Stock, Qty 20+

0

?38

737-3007

Grease

$

$

Not available

39

White Outdoor 738-0541

Spacer
(Superseded to 938-0541)

$

$

Not available

40

White Outdoor 738-3089A

Steering Adapter

$

$

Not available

41

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

42

White Outdoor 741-0356

Bearing: Steering Column
(Superseded to 741-0356A)

$7.49

$

In Stock, only 3 left!

0

$

$

Not available

44

White Outdoor 748-0290

Pinion Gear
(Superseded to 948-0290)

$

$

Not available

45

White Outdoor 750-0532

Spacer
(Superseded to 950-0532)

$

$

Not available

46

White Outdoor 783-0411

Gear: Steering Segment

$

$

Not available

47

White Outdoor 783-0565C

Upper Frame Cover

Variations

White Outdoor 783-0565C-0499

COVER-UPPER FRAME - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0565C-0637

COVER-UPPER FRAME - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0565C-0662

No Longer Available COVER-UPPER FRAME - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0565C-0665

COVER-UPPER FRAME - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0565C-0721

COVER-UPPER FRAME - SEARS RED (0721)

$

$

Not available

White Outdoor 783-0565C-4044

COVER-UPPER FRAME - CRAFTSMAN RED (4044)

$

$

Not available

$

$

48

MTD 783-1013

Lift Plate

Variations

White Outdoor 783-1013-0637

COVER - POWDER BLACK (0637)

$

$

Not available

$

$
