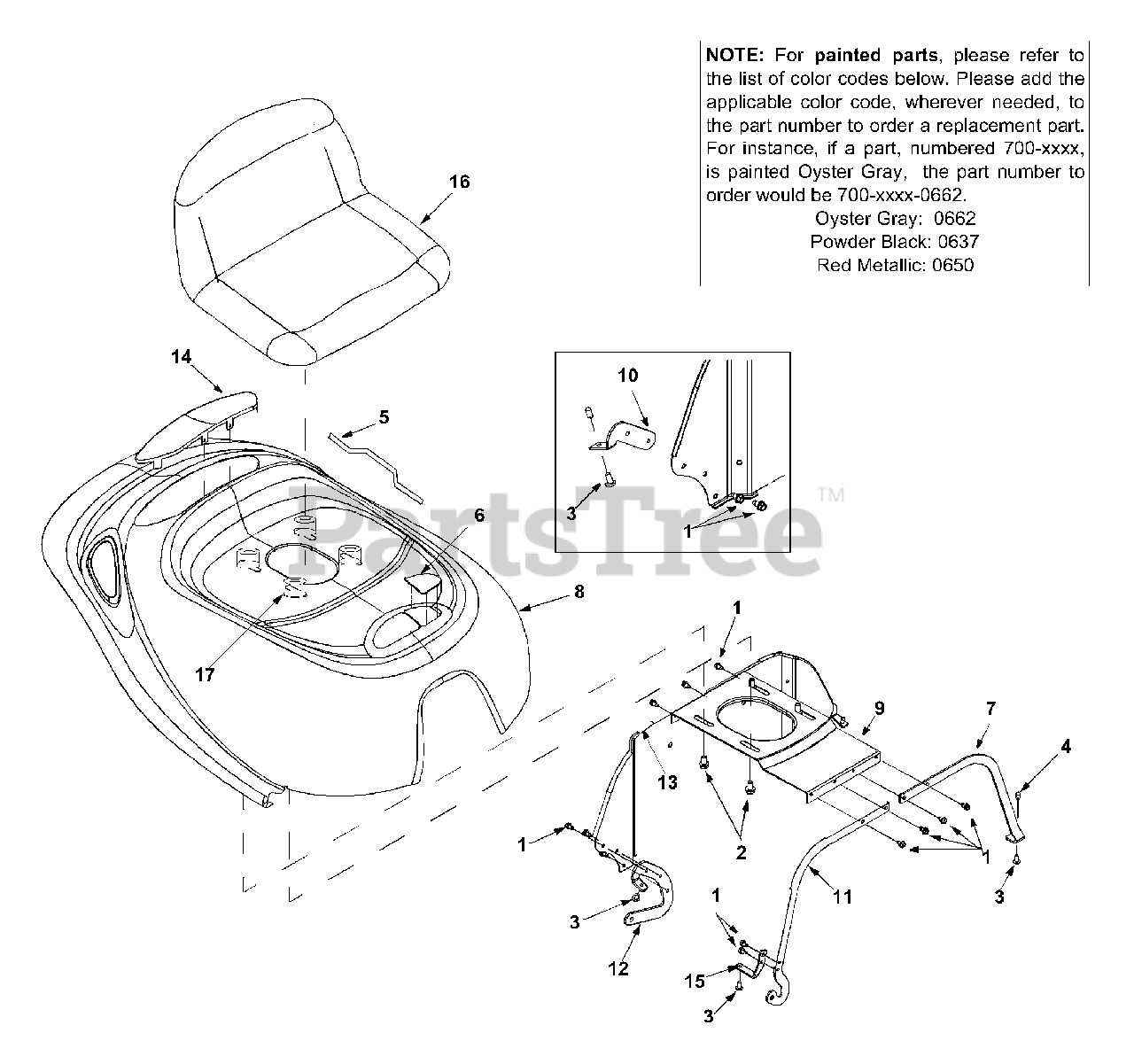

LR-927 (13A-344-190) - White Outdoor 27" Rear-Engine Riding Mower (2003) Seat & Hood Assembly Parts Diagram

27" Rear-Engine Riding Mower

Seat & Hood Assembly Parts Diagram

  • Title
1

White Outdoor 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-1017

Torx AB Screw 1/4-14 x 0.625

$8.49

$

In Stock, Qty 9

0

4

White Outdoor 720-0238

Rod End Grip

$3.99

$

In Stock, only 1 left!

0

5

$3.99

$

Usually ships in 3-6 days

0

6

White Outdoor 731-1691A

Grass Bag Lens

$

$

Not available

7

White Outdoor 783-0410

Bracket Reinforcement: Hood
(Superseded to 783-0410-0637)

Variations

White Outdoor 783-0410-0637

BRACKET-HOOD REINF - POWDER BLACK (0637)

$

$

Not available

$

$

8

Variations

White Outdoor 783-0445-0499

No Longer Available HOOD - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0445-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0445-0662

HOOD - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0445-0665

HOOD - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0445-0721

HOOD - SEARS RED (0721)

$

$

Not available

White Outdoor 783-0445-4044

HOOD - CRAFTSMAN RED (4044)

$

$

Not available

$414.99

$

Usually ships in 3-6 days

0

9

Variations

White Outdoor 783-0446-0637

PLATE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 783-0447

Hood Bracket

$

$

Not available

11

White Outdoor 783-0448

Hood Bracket: Reinforcement

Variations

White Outdoor 783-0448-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 783-0449A

Hinge Bracket: Rear
(Superseded to 783-0449A-0637)

Variations

White Outdoor 783-0449A-0637

BRACKET-HOOD HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 783-0451A

Pivot Plate: Rear Hood

Variations

White Outdoor 783-0451A-0637

PLATE-HOOD PIVOT R - POWDER BLACK (0637)

$

$

Not available

$

$

14

Variations

White Outdoor 783-0545-0637

No Longer Available SCREEN-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 783-0562

Hinge Bracket: Front

Variations

White Outdoor 783-0562-0637

BRACKET-HOOD HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

16

White Outdoor 757-04016

Seat: Low Back
(Superseded to 957-04016)

$

$

Not available

17

White Outdoor 738-04008

Spacer
(Superseded to 938-04008)

$

$

Not available
