LR-927 (13A-344-190) - White Outdoor 27" Rear-Engine Riding Mower (2003) Fuel Tank & General Assembly Parts Diagram

27" Rear-Engine Riding Mower

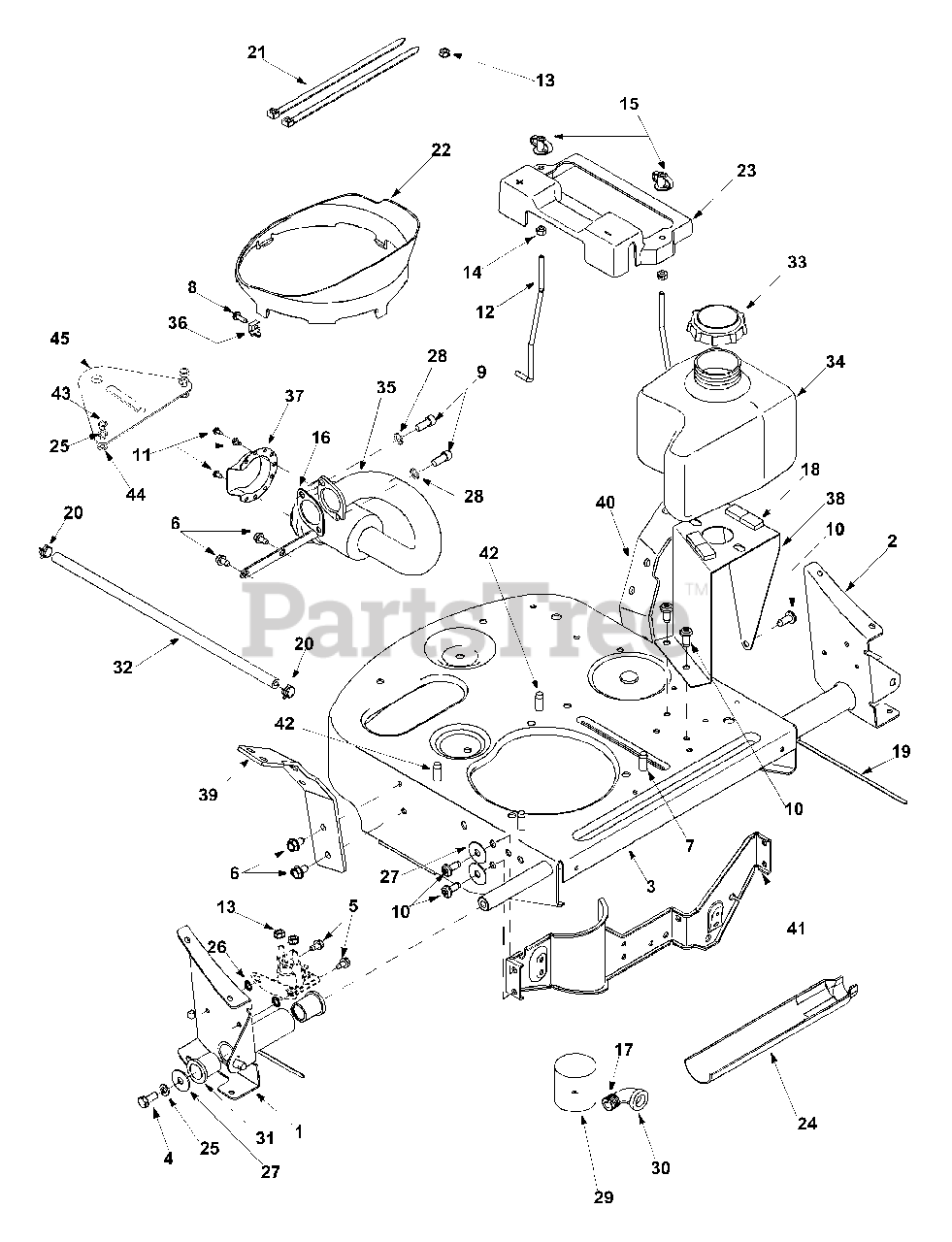

Fuel Tank & General Assembly Parts Diagram

  • Title

1

White Outdoor 683-0190B

Rail Support: Frame Assembly RH

Variations

White Outdoor 683-0190B-0637

FRAME ASSY-RAIL RH - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 683-0191B

Rail Support: Frame Assembly LH

Variations

White Outdoor 683-0191B-0637

FRAME ASSY-RAIL LH - POWDER BLACK (0637)

$

$

Not available

$

$

3

683-0401B

Frame Assembly

$

$

Not available

4

White Outdoor 710-0157

Hex Bolt 5/16-24 x 0.75"

$4.49

$

In Stock, Qty 8

0

5

White Outdoor 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0604A

TT Screw 5/16-18 x 0.625"

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0654A

TT Sems Screw 3/8-16 x 1.0"

$4.49

$

In Stock, only 3 left!

0

8

White Outdoor 710-1237

T Screw #10-32 x 0.625"

$4.49

$

Usually ships in 3-6 days

0

9

White Outdoor 710-1314A

Soc. Hd. Screw 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-1611B

TT Screw 5/16-18 x 0.75"

$6.99

$

In Stock, only 2 left!

0

11

White Outdoor 710-1502

AB Screw 8-18 x 0.375"

$

$

Not available

12

White Outdoor 711-04143

Battery Hold -Down Rod

$

$

Not available

13

White Outdoor 712-0271

Sems Nut

$4.49

$

In Stock, Qty 10

0

14

White Outdoor 712-0291

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

15

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

17

721-0331

Sealant: Loctite (TM) (not serviceable)

$

$

Not available

18

White Outdoor 722-3022

Foam Tape: 0.625 x 0.25 thk.
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

19

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

20

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

21

White Outdoor 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

22

White Outdoor 731-04282

Plen
(Superseded to 931-04282)

$

$

Not available

23

White Outdoor 731-0707A

Battery Cover

$

$

Not available

24

White Outdoor 731-1682A

Oil drain Sleve

$7.99

$

In Stock, Qty 6

0

25

White Outdoor 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0222

External Lock Washer

$5.99

$

In Stock, only 3 left!

0

27

White Outdoor 736-0123

Flat Washer
(Superseded to 936-0123)

$6.49

$

Usually ships in 3-6 days

0

28

White Outdoor 736-0607

Lock Washer 1/4

$3.99

$

In Stock, Qty 20+

0

29

737-0169

SAE 30W Oil (not serviceable)

$

$

Not available

30

White Outdoor 737-0125

Elbow Feeting

$

$

Not available

31

White Outdoor 741-0516

Flange Bearing
(Superseded to 741-0516B)

$6.49

$

In Stock, Qty 20+

0

32

751-0535

Fuel Line Hose

$

$

Not available

33

White Outdoor 751-3071

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

34

White Outdoor 751-3214

Fuel Tank
(Superseded to 951-3214)

$

$

Not available

35

White Outdoor 751-9986

Muffler
(Superseded to 951-9986A)

$97.99

$

Usually ships in 3-6 days

0

36

White Outdoor 751B213146

Clamp Casing: Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

37

White Outdoor 751B222261

Muffler Deflector

$10.99

$

In Stock, only 1 left!

0

38

White Outdoor 783-04100

Tank Bracket
(Superseded to 783-04100-0637)

Variations

White Outdoor 783-04100-0637

BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

$

$

39

White Outdoor 783-04144

Support Bracket RH
(Superseded to 783-04144-0637)

Variations

White Outdoor 783-04144-0637

BRACKET-SUPPORT RH - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 783-04260

Support Bracket LH
(Superseded to 783-04260-0637)

Variations

White Outdoor 783-04260-0637

BRACKET-SUPPORT LH - POWDER BLACK (0637)

$

$

Not available

$

$

41

783-08098

Support Bracket: Transaxle

$

$

Not available

42

White Outdoor 710-3008

Hex Screw 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$

$

Not available

44

White Outdoor 726-0201

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

45

White Outdoor 783-0561

Hitch Plate
(Superseded to 783-0561A-0637)

Variations

White Outdoor 783-0561-0637

Hitch Plate - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

46

White Outdoor 725-1704

Battery
(Superseded to 925-1707D)

Note: (not shown)

$

$

Not available
