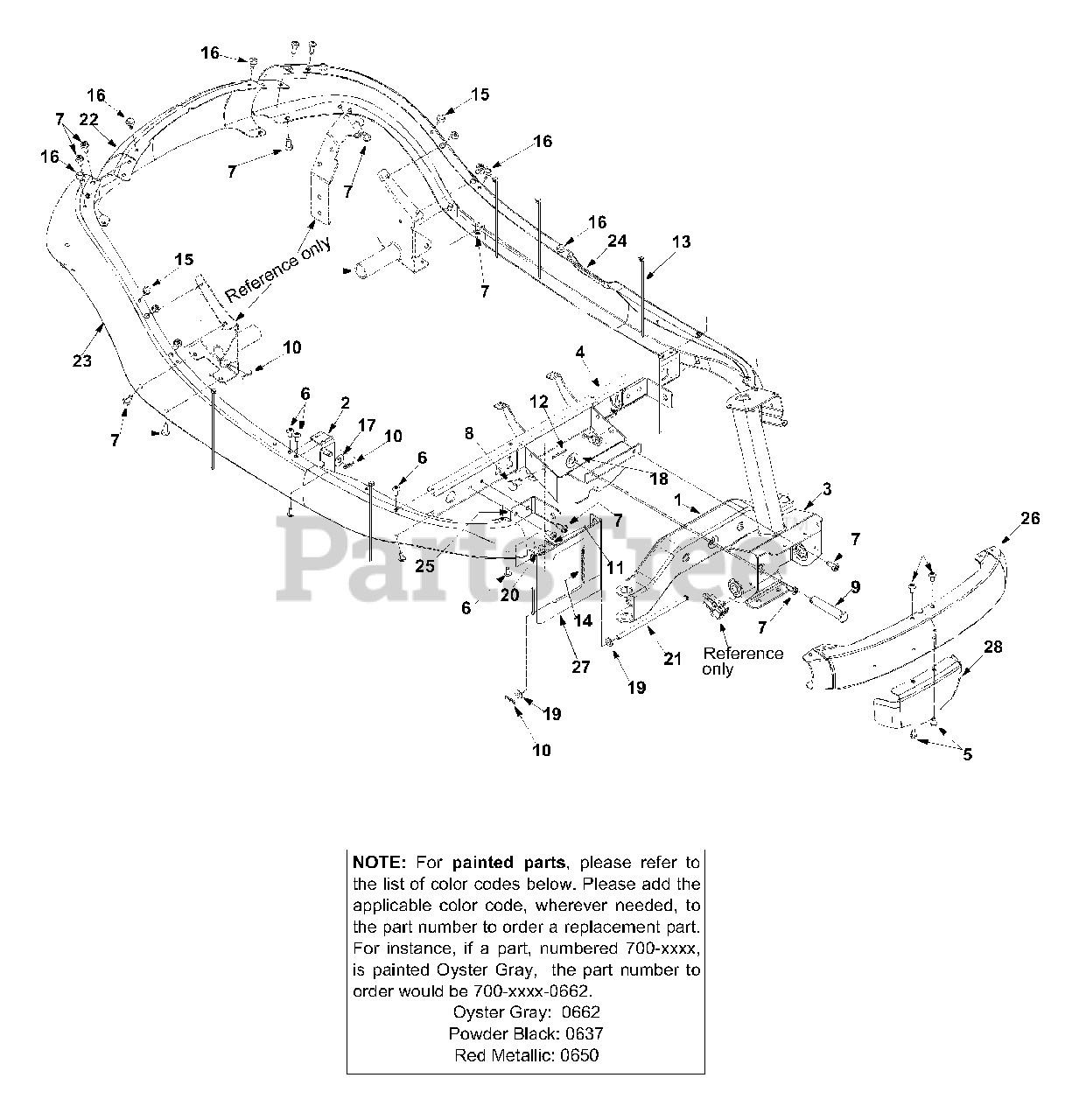

LR-927 (13A-344-190) - White Outdoor 27" Rear-Engine Riding Mower (2003) Frame Assembly Parts Diagram

27" Rear-Engine Riding Mower

Frame Assembly Parts Diagram

  • Title

1

White Outdoor 683-0142

Pivot Bar Assembly

Variations

White Outdoor 683-0142-0637

PIVOT BAR ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0142-0665

PIVOT BAR ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

$

$

2

White Outdoor 683-0160

Bracket Assembly: Hood Pivot

$

$

Not available

3

White Outdoor 683-0163A

Steering Support Bracket

Variations

White Outdoor 683-0163A-0637

BRACKET-STEERING - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 683-0264A

Channel Assembly: Front Frame
(Superseded to 683-0264A-0637)

Variations

White Outdoor 683-0264A-0637

CHANNEL ASSY-FRONT - POWDER BLACK (0637)

$147.99

$

Usually ships in 3-6 days

0

$147.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0599

TT screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1017

AB Screw 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 8

0

7

White Outdoor 710-1611B

TT Screw 5/16-18 x 0.75"

$6.99

$

In Stock, only 2 left!

0

8

White Outdoor 711-0332

Clevis Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 12

0

9

White Outdoor 711-1165

Clevis Pin

$13.99

$

Usually ships in 3-6 days

0

10

White Outdoor 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 714-0147

Hairpin Clip

$4.99

$

In Stock, Qty 6

0

12

White Outdoor 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 732-0829

Extension Spring
(Superseded to 932-0829)

$

$

Not available

15

White Outdoor 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 1 left!

0

16

White Outdoor 735-0271

Bumper
(Superseded to 735-0271A)

$8.99

$

In Stock, only 1 left!

0

17

White Outdoor 736-0101

Flat Washer
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

18

White Outdoor 736-0187

Flat Washer

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

20

White Outdoor 736-3019

Flat Washer

$5.99

$

In Stock, Qty 11

0

21

White Outdoor 747-0985

Deck Rod

$

$

Not available

22

White Outdoor 783-04231

Rail: Rear Frame

Variations

White Outdoor 783-04231-0637

RAIL-FRAME REAR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04231-0638

RAIL-FRAME REAR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04231-0650

RAIL-FRAME REAR - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04231-0674

RAIL-FRAME REAR - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-04231-0721

RAIL-FRAME REAR - SEARS RED (0721)

$

$

Not available

White Outdoor 783-04231-4044

RAIL-FRAME REAR - CRAFTSMAN RED (4044)

$

$

Not available

$

$

23

White Outdoor 783-04248

Rail: Frame RH

Variations

White Outdoor 783-04248-0637

RAIL-FRAME-RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04248-0638

No Longer Available RAIL-FRAME-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04248-0650

RAIL-FRAME-RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04248-0674

RAIL-FRAME-RH - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-04248-0721

RAIL-FRAME-RH - SEARS RED (0721)

$

$

Not available

White Outdoor 783-04248-4044

RAIL-FRAME-RH - CRAFTSMAN RED (4044)

$

$

Not available

$

$

24

White Outdoor 783-04252

Rail: Frame LH

Variations

White Outdoor 783-04252-0637

RAIL-FRAME LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04252-0638

RAIL-FRAME LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04252-0650

RAIL-FRAME LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04252-0674

RAIL-FRAME LH - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-04252-0721

RAIL-FRAME LH - SEARS RED (0721)

$

$

Not available

White Outdoor 783-04252-4044

RAIL-FRAME LH - CRAFTSMAN RED (4044)

$

$

Not available

$

$

25

White Outdoor 783-0554

Cam Bracket

Variations

White Outdoor 783-0554-0637

BRACKET-CAM - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0554-0665

BRACKET-CAM - YARDMAN GREEN (0665)

$

$

Not available

$

$

26

White Outdoor 783-0564A

Frame: Upper Front

Variations

White Outdoor 783-0564A-0637

FRAME-UPPER FRONT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0564A-0648

FRAME-UPPER FRONT - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0564A-0650

FRAME-UPPER FRONT - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0564A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

27

White Outdoor 783-0605

Stabilizing Bracket: Deck
(Superseded to 783-0605-0637)

Variations

White Outdoor 783-0605-0637

BRACKET-STABILIZER - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 783-0811A

Front Bumper

Variations

White Outdoor 783-0811A-0637

COVER STEERING - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0811A-0498

COVER STEERING - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0811A-0638

COVER STEERING - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0811A-0648

COVER STEERING - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0811A-0650

COVER STEERING - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0811A-0665

COVER STEERING - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0811A-0716

COVER STEERING - CUB YELLOW-99 (0716)

$

$

Not available

$

$
