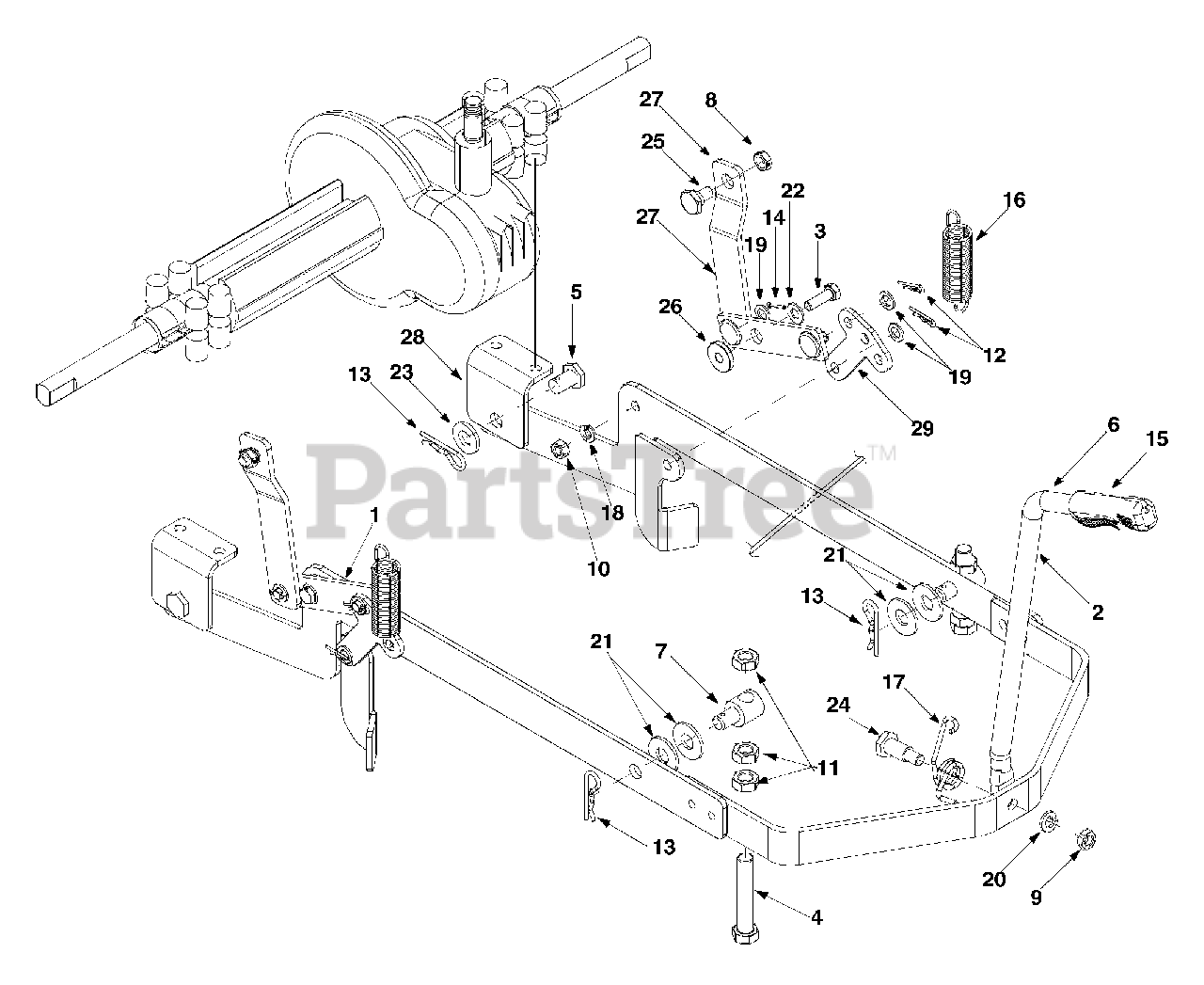

LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2002) Lift Assembly Parts Diagram

27" Rear-Engine Riding Mower

Lift Assembly Parts Diagram

  • Title

1

White Outdoor 683-0152

Pivot Link Assembly

Variations

White Outdoor 683-0152-0637

No Longer Available LINK ASSY-PIVOT RH - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 683-0194A

Lift Arm Assembly
(Superseded to 683-0194A-0637)

Variations

White Outdoor 683-0194A-0637

ARM ASSY-LIFT - POWDER BLACK (0637)

$233.99

$

In Stock, only 1 left!

0

$233.99

$

In Stock, only 1 left!

0

3

White Outdoor 710-0376

Hex Screw 5/16-18 X 1.00 Gr.5

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-3230

Hex Bolt 1/2-13 X 2.75 Gr.5 Spec.

$12.99

$

Usually ships in 3-6 days

0

5

White Outdoor 711-0332

Lift Bracket Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

6

White Outdoor 711-1120

Lift Rod

$

$

Not available

7

White Outdoor 711-3319

Ferrule
(Superseded to 911-3319)

$

$

Not available

8

White Outdoor 712-0266

Jam Nut
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-3008

Jam Nut 3/8-16 Gr. 5

$4.99

$

In Stock, Qty 16

0

10

White Outdoor 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 712-3048

Jam Nut

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 714-0147

Cotter Pin

$4.99

$

In Stock, Qty 6

0

14

White Outdoor 714-3010

Cotter Pin

$4.99

$

In Stock, only 1 left!

0

15

White Outdoor 720-0298

Handle Grip

$43.99

$

Usually ships in 3-6 days

0

16

White Outdoor 732-0829

Extension Spring
(Superseded to 932-0829)

$

$

Not available

17

White Outdoor 732-0837

Torsion Spring

$

$

Not available

18

White Outdoor 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0140

Flat Washer .385 x .620

$7.49

$

In Stock, Qty 6

0

20

White Outdoor 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0257

Flat Washer
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

22

White Outdoor 736-0275

Flat Washer 5/16

$6.99

$

Usually ships in 3-6 days

0

23

White Outdoor 736-3019

Flat Washer

$5.99

$

In Stock, Qty 11

0

24

White Outdoor 738-0145

Shoulder Screw

$6.99

$

Usually ships in 3-6 days

0

25

White Outdoor 738-0183

Shoulder Screw
(Superseded to 938-0183)

$

$

Not available

26

White Outdoor 738-0958

Shoulder Spacer
(Superseded to 938-0958)

$4.49

$

Usually ships in 3-6 days

0

27

White Outdoor 783-0435

Upper Deck Link

Variations

White Outdoor 783-0435-0637

LINK-UPPER DECK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0435-0665

LINK-UPPER DECK - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0435-0721

LINK-UPPER DECK - SEARS RED (0721)

$

$

Not available

White Outdoor 783-0435-4044

LINK-UPPER DECK - CRAFTSMAN RED (4044)

$

$

Not available

$

$

28

White Outdoor 783-0437

Axle Bracket: Rear

Variations

White Outdoor 783-0437-0637

BRACKET-REAR AXLE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0437-0665

BRACKET-REAR AXLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0437-0721

BRACKET-REAR AXLE - SEARS RED (0721)

$

$

Not available

White Outdoor 783-0437-4044

BRACKET-REAR AXLE - CRAFTSMAN RED (4044)

$

$

Not available

$

$

29

White Outdoor 783-0440

Lower Link

Variations

White Outdoor 783-0440-0637

LINK-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$
