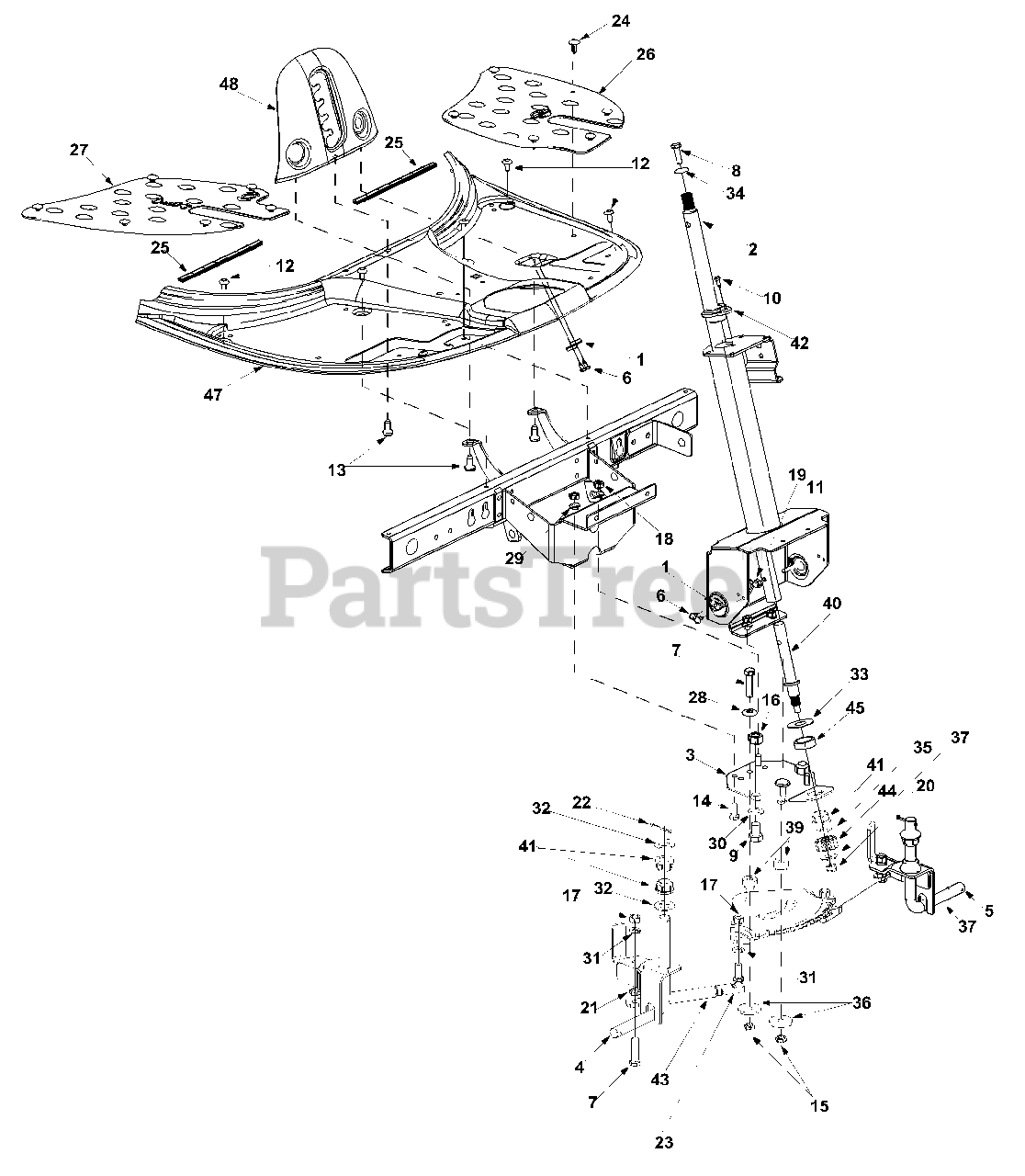

LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2001) Steering & Frame Parts Diagram

27" Rear-Engine Riding Mower

Steering & Frame Parts Diagram

  • Title

1

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

2

White Outdoor 650-0007

Steering Tube Assembly
(Superseded to 650-0007-0637)

Variations

White Outdoor 650-0007-0637

TUBE ASSY-STEERING - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 683-0033A

Steering Support Bracket

$

$

Not available

4

White Outdoor 683-0178A

Front Axle Assembly: RH
(Superseded to 983-0178A)

$

$

Not available

5

White Outdoor 683-0179A

Front Axle Assembly: LH
(Superseded to 983-0179A)

$

$

Not available

6

White Outdoor 710-0224

Hex Screw AB
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

7

White Outdoor 710-0459A

Hex Screw 3/8-24 x 1.5" Gr.5 Sp.

$6.99

$

In Stock, Qty 8

0

8

White Outdoor 710-0643

Lock Screw 5/16-18 x 1.0" Gr.5

$6.99

$

In Stock, Qty 5

0

9

White Outdoor 710-0689

Hex Screw 1/2-13 x 0.75"

$6.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0837

Oval C-Sunk Screw #10-16 x 0.625"

$4.49

$

In Stock, Qty 6

0

11

White Outdoor 710-0958

Hex Screw 1/4-20 x 1.25 Gr.5 Sp.
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

12

White Outdoor 710-1017

AB Screw 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

13

White Outdoor 710-1611

Self-Tapping Screw 5/16-18 x 0.75"
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

14

White Outdoor 710-3008

Hex Screw 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-0116

Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

16

White Outdoor 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 712-0241

Hex Nut

$4.49

$

In Stock, Qty 13

0

18

White Outdoor 712-0267

Hex Nut
(Superseded to 912-3010)

$

$

Not available

19

White Outdoor 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, Qty 17

0

20

White Outdoor 712-0411

Lock Nut

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 712-0711

Jam Nut

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 723-0156

Ball Joint
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

24

White Outdoor 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

26

White Outdoor 735-0265A

Floor Pad: LH

$

$

Not available

27

White Outdoor 735-0266A

Floor Pad: RH

$

$

Not available

28

White Outdoor 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

31

White Outdoor 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-0187

Flat Washer

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-0196

Flat Washer

$

$

Not available

34

White Outdoor 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 736-0272

Flat Washer

$4.99

$

In Stock, Qty 20+

0

36

White Outdoor 736-0320

Flat Washer

$6.99

$

In Stock, Qty 7

0

37

White Outdoor 736-3078

Flat Washer

$4.49

$

In Stock, only 4 left!

0

?38

737-3007

Grease

$

$

Not available

39

White Outdoor 738-0541

Spacer
(Superseded to 938-0541)

$

$

Not available

40

White Outdoor 738-3089A

Steering Adapter

$

$

Not available

41

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

42

White Outdoor 741-0356

Bearing: Steering Column
(Superseded to 741-0356A)

$7.49

$

In Stock, only 1 left!

0

43

White Outdoor 747-0955

Tie Rod

$

$

Not available

44

White Outdoor 748-0290

Pinion Gear
(Superseded to 948-0290)

$

$

Not available

45

White Outdoor 750-0532

Spacer
(Superseded to 950-0532)

$

$

Not available

?46

White Outdoor 783-0411

Gear: Steering Segment

$

$

Not available

47

White Outdoor 783-0565B

Upper Frame Cover
(Superseded to 783-0565C)

Variations

White Outdoor 783-0565B-0499

COVER-UPPER FRAME - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0565B-0637

COVER-UPPER FRAME - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0565B-0662

No Longer Available COVER-UPPER - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0565B-0665

COVER-UPPER FRAME - YARDMAN GREEN (0665)

$

$

Not available

$

$

48

White Outdoor 783-0566A

Lift Plate

Variations

White Outdoor 783-0566A-0637

PLATE-BRACKET, LIFT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0566A-0650

PLATE-LIFT - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0566A-0662

PLATE-LIFT - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0566A-0665

PLATE-LIFT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0566A-0721

PLATE-LIFT - SEARS RED (0721)

$

$

Not available

White Outdoor 783-0566A-4044

PLATE-LIFT - CRAFTSMAN RED (4044)

$

$

Not available

$32.99

$

Usually ships in 3-6 days
