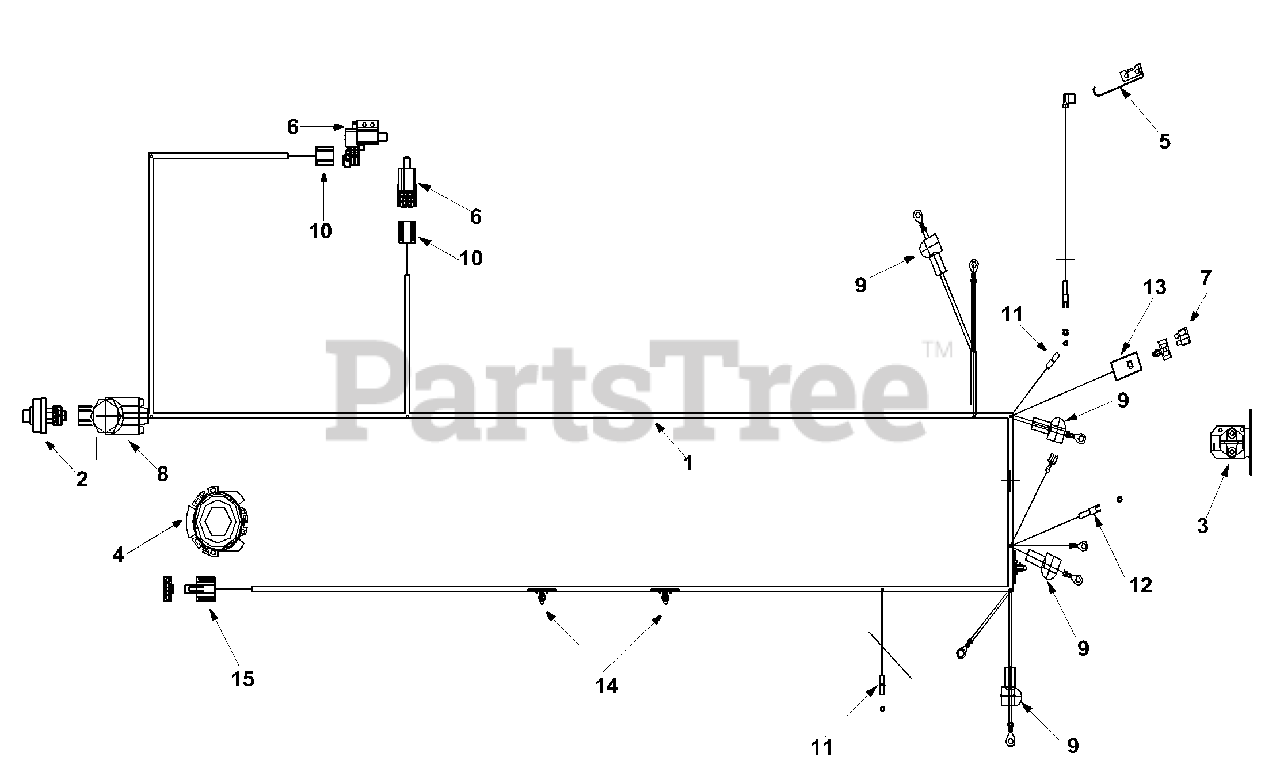

LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2001) Electrical Parts Diagram

27" Rear-Engine Riding Mower

Electrical Parts Diagram

  • Title

1

White Outdoor 629-0945

Harness Assembly w/o relays
(Superseded to 929-0945)

$

$

Not available

2

White Outdoor 725-0267

Ignition Switch: 5 Pin
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

White Outdoor 725-1341B

Ignition Key

Note: (Not shown)

$10.99

$

In Stock, only 1 left!

0

3

White Outdoor 725-1426

Solenoid: 12 V. 100 amp.
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

4

White Outdoor 725-1462

Seat Switch

$78.99

$

Usually ships in 3-6 days

0

5

White Outdoor 725-1643

Spring Switch

$10.99

$

In Stock, only 1 left!

0

6

White Outdoor 725-1657A

Interlock Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

7

White Outdoor 725-1381

Fuse: 20 amp.
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

8

White Outdoor 725-1726

Battery Cover

$

$

Not available

9

White Outdoor 725-3237

Battery Cover: Red

$10.99

$

Usually ships in 3-6 days

0

10

White Outdoor 729-0125

Connecter

$11.99

$

Usually ships in 3-6 days

0

11

White Outdoor 729-0139

Connecter

$

$

Not available

12

White Outdoor 729-0171

Connecter

$

$

Not available

13

White Outdoor 729-0357

Fuse Holder w/Clip

$

$

Not available

14

White Outdoor 729-0359

Harness Clip

$3.99

$

Usually ships in 3-6 days

0

15

White Outdoor 729-1108

Connecter

$

$

Not available
