LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2000) Grass Bag Assembly Parts Diagram

27" Rear-Engine Riding Mower

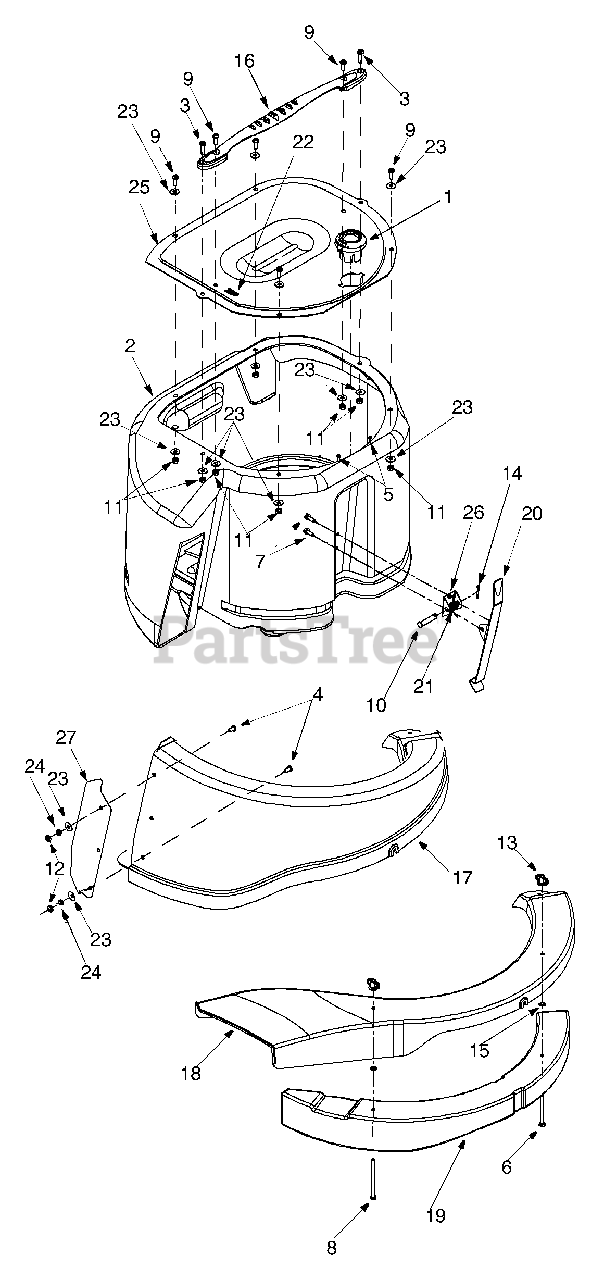

Grass Bag Assembly Parts Diagram

  • Title
1

White Outdoor 631-0060

Flow Indicator Assembly
(Superseded to 931-0060)

$

$

Not available

2

White Outdoor 631-0080

Grass Bag Assembly

$

$

Not available

3

White Outdoor 710-0166

Machine Screw 1/4-20 x 1.0
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

4

White Outdoor 710-0286

Machine Screw 1/4-20 x 0.5"

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0456

Hex Screw #10-16 x 0.5"

$

$

Not available

6

White Outdoor 710-0564

Hex Screw 1/4-20 x 2.75"

$6.99

$

In Stock, only 3 left!

0

7

White Outdoor 710-0642

Self-Tapping Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0825

Hex Screw 1/4-20 x 3.75"

$5.49

$

In Stock, only 1 left!

0

9

White Outdoor 710-0924

Machine Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

10

$4.99

$

In Stock, Qty 19

0

11

White Outdoor 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

12

White Outdoor 712-0298

Jam Nut
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

13

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

14

$3.99

$

Usually ships in 3-6 days

0

15

White Outdoor 726-0271

Speed Nut
(Superseded to 926-0271)

$6.49

$

In Stock, only 2 left!

0

16

$

$

Not available

17

White Outdoor 731-1743A

Discharge Chute: Grass Bag

$

$

Not available

18

White Outdoor 731-1744

Side-Discharge Chute

$

$

Not available

19

White Outdoor 731-1745A

Mulching Plug

$

$

Not available

20

White Outdoor 732-0839

Bag Release Lever
(Superseded to 732-0839A)

$

$

Not available

21

White Outdoor 732-0841

Torsion Spring
(Superseded to 932-0841)

$

$

Not available

22

$

$

Not available

23

$4.49

$

In Stock, only 4 left!

0

24

White Outdoor 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

25

White Outdoor 783-0544A

Grass Bag Screen
(Superseded to 783-0544A-0637)

Variations

White Outdoor 783-0544A-0637

SCREEN-BAG - POWDER BLACK (0637)

$

$

Not available

$

$

26

White Outdoor 783-0575A

Pivot Bracket
(Superseded to 783-0575B-0637)

Variations

White Outdoor 783-0575A-0637

BRAKET-PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 783-0645

Deflector Plate

Variations

White Outdoor 783-0645-0637

PLATE-CHUTE DEFLEC - POWDER BLACK (0637)

$

$

Not available

$

$
