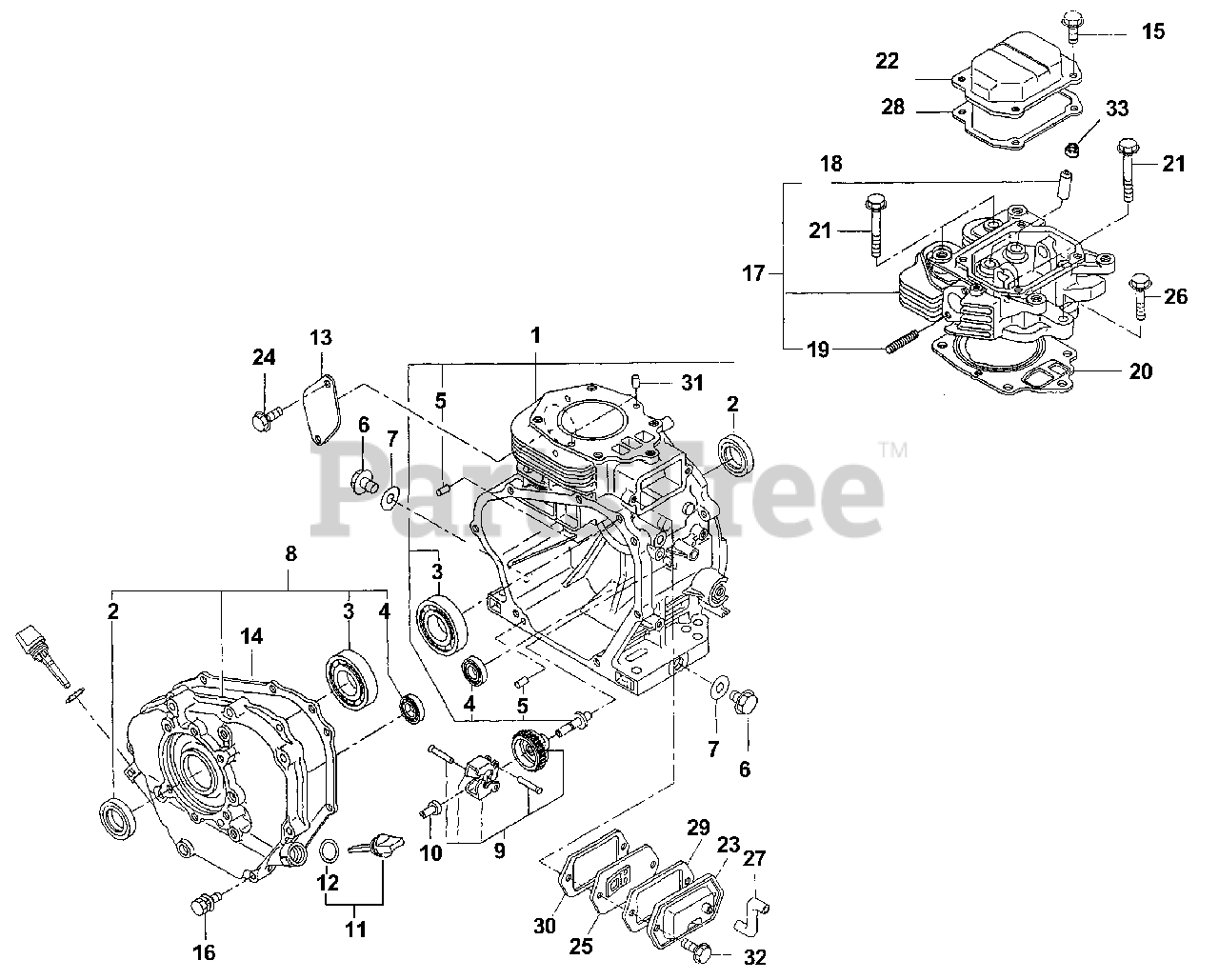

LR 5550 (UT-03833) - Homelite Generator Crankcase Parts Diagram

Generator

Crankcase Parts Diagram

  • Title

1

Homelite UP05312

Crankcase

Note: Robin P/N 247-10120-01

$

$

Not available

2

Homelite UP04898

Oil seal

Note: Robin P/N 044-03500-90

$

$

Not available

3

Homelite UP04899

Ball bearing

Note: Robin P/N 060-03500-10

$

$

Not available

4

Homelite UP04900

Ball bearing

Note: Robin P/N 060-01500-10

$

$

Not available

5

Homelite UP03220

Dowel pin

Note: Robin P/N 031-00600-20

$

$

Not available

6

Homelite UP03223

Plug

Note: Robin P/N 040-11400-30

$

$

Not available

7

Homelite UP03224

Gasket

Note: Robin P/N 021-11400-20

$

$

Not available

8

Homelite UP05315

Main bearing cover

Note: Robin P/N 246-11002-31

$

$

Not available

2

Homelite UP04898

Oil seal

Note: Robin P/N 044-03500-90

$

$

Not available

3

Homelite UP04899

Ball bearing

Note: Robin P/N 060-03500-10

$

$

Not available

4

Homelite UP04900

Ball bearing

Note: Robin P/N 060-01500-10

$

$

Not available

9

Homelite UP05316

Governor gear cp

Note: Robin P/N 246-45001-01

$

$

Not available

10

Homelite UP03229

Governor sleeve

Note: Robin P/N 205-41901-03

$

$

Not available

11

Homelite UP04907

Oil gauge

Note: Robin P/N 224-63601-03

$

$

Currently unavailable

12

Homelite UP04908

Gasket

Note: Robin P/N 021-32000-10

$

$

Not available

13

Homelite UP05318

Blind cover

Note: Robin P/N 224-17101-03

$

$

Not available

14

Homelite UP05319

Bearing cover gasket

Note: Robin P/N 246-15101-03

$

$

Not available

15

Homelite UP03242

Flange, bolt

Note: Torque Specs 72 - 84 in/lbs (8.0 - 9.5 Nm); Robin P/N 011-00600-20

$

$

Not available

16

Homelite UP05320

Bolt and washer ay

Note: Torque Specs 150 - 162 in/lbs (17 - 18.5 Nm); Robin P/N 001-13084-00

$

$

Not available

17

Homelite UP05321

Cylinder head

Note: Robin P/N 247-13001-31

$

$

Not available

18

Homelite UP05313

Valve guide

Note: Robin P/N 246-14201-03

$

$

Not available

19

Homelite UP05314

Stud

Note: Robin P/N 010-50804-30

$

$

Not available

20

Homelite UP05322

Head gasket

Note: Robin P/N 247-15001-13

$

$

Not available

21

Homelite UP04378

Flange bolt

Note: Robin P/N 011-01000-40

$

$

Not available

22

Homelite UP05323

Rocker cover cp

Note: Robin P/N 246-15501-01

$

$

Not available

23

Homelite UP05324

Breather Cover Cp

Note: Robin P/N 246-14301-01

$

$

Not available

24

Homelite UP05014

Bolt

Note: Torque Specs 159 - 188 in/lbs (18.0 - 21.2 Nm); Robin P/N 001-65081-20

$

$

Not available

25

Homelite UP05325

Breather Plate Cp

Note: Robin P/N 246-14401-01

$

$

Not available

26

Homelite UP05326

Flange bolt

Note: Robin P/N 011-01000-20

$

$

Not available

27

Homelite UP05327

Rubber pipe

Note: Robin P/N 246-10801-03

$

$

Not available

28

Homelite UP05328

Gasket rocker cover

Note: Robin P/N 246-16002-13

$

$

Not available

29

Homelite UP04383

Gasket breather cover

Note: Robin P/N 246-16006-03

$

$

Not available

30

Homelite UP05329

Gasket breather plate

Note: Robin P/N 246-16007-13

$

$

Not available

31

Homelite UP03220

Dowel pin

Note: Robin P/N 031-00600-20

$

$

Not available

32

Homelite UP03300

Flange bolt

Note: Robin P/N 011-00600-30

$

$

Not available

33

UNKNOWN

$

$

Not available

Homelite UP05330

Gasket set

Note: Robin P/N 247-99001-07

$

$

Not available

Homelite UP05513

Complete engine

Note: Robin P/N EH34

$

$

Currently unavailable

Homelite UP05515

Complete engine

Note: Robin P/N EH34 Electric

$

$

Currently unavailable
