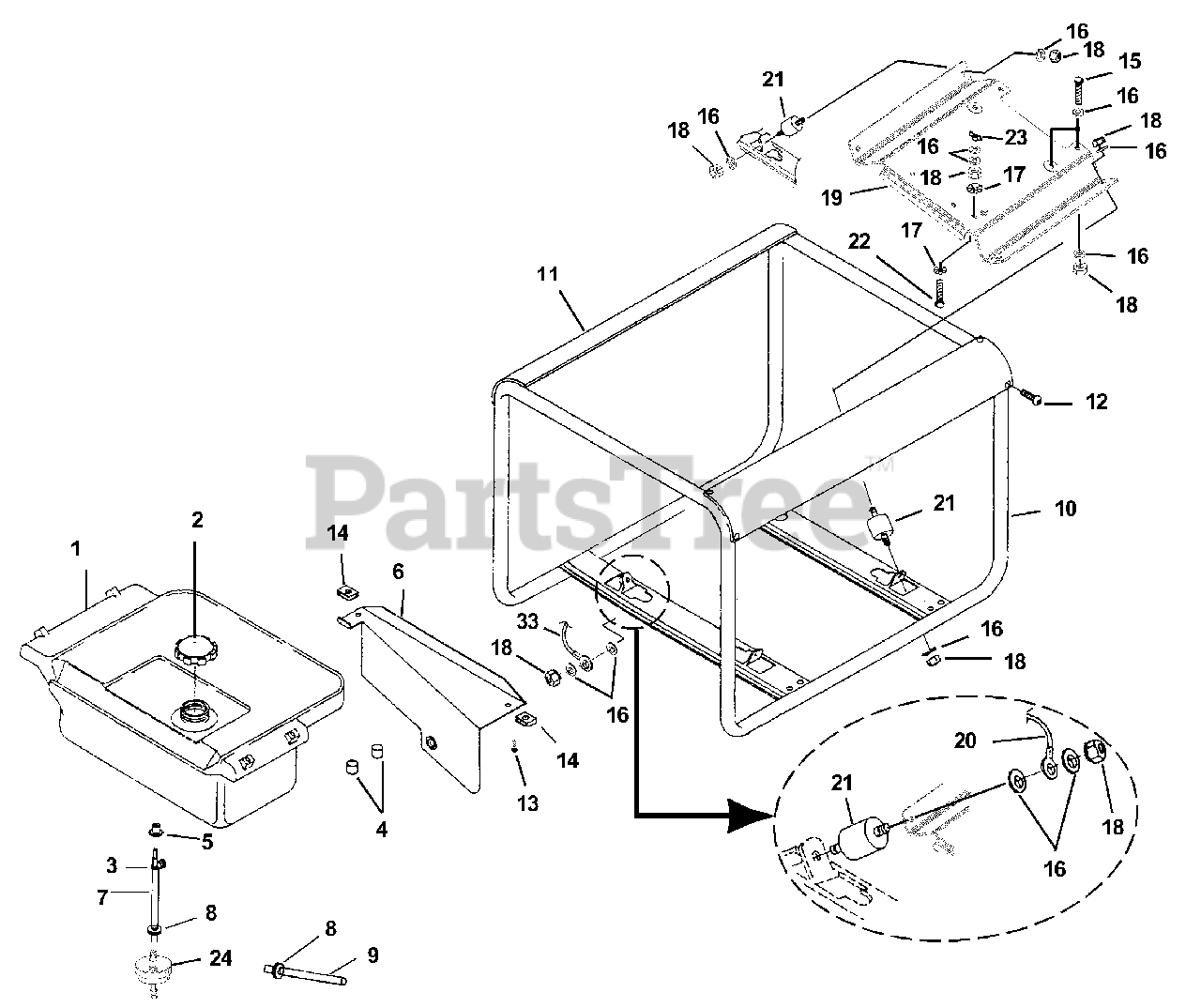

LR 5000 T (UT-03841) - Homelite Generator Frame - Fuel Tank Parts Diagram

Generator

Frame - Fuel Tank Parts Diagram

  • Title

1

Homelite UP03373

Fuel Tank (5 Gal.)

$

$

Not available

2

Homelite 04864

Fuel Cap (2 1/4" dia.)

$

$

Not available

3

Homelite 07565

Valve - Fuel

$

$

Not available

4

Homelite 06644

Pad - Fuel Tank

$

$

Not available

5

Homelite 47222

Bushing

$

$

Not available

6

Homelite 063881

Shield - Fuel Tank
(Superseded to UP03461)

$

$

Not available

7

Homelite 4958608

Fuel Line
(Superseded to UP03486)

$

$

Not available

8

Homelite 49587

Clip - Hose

$

$

Not available

9

Homelite A49306

Fuel Line to Engine
(Superseded to UP03517)

$

$

Not available

10

Homelite UP03385

Roll Cage

$

$

Not available

11

Homelite UP03377

Brace - Tank Support

$

$

Not available

12

Homelite 96620

Screw - Torx (10-24 X 1/2")

Note: (Torque to 25 - 35 In/Lbs (2.8 - 4.0 Nm))

$4.99

$

Usually ships in 3-7 days

0

13

Homelite 80577

Screw - Pan Hd. (8-32 X 3/8")
(Superseded to UP03389)

Note: (Torque to 8 - 12 In/Lbs (.9 - 1.4 Nm))

$

$

Not available

14

Homelite 81227

Nut - Hi Speed

$

$

Not available

15

Homelite 80087

Screw - Hex Hd. (5/16-18 X 1 1/2")

Note: (Torque to 145 - 155 In/Lbs (16.4 - 17.5 Nm))

$

$

Not available

16

Homelite 83081

Washer - Lock (int.)

$

$

Not available

17

Homelite 83033

Washer - Lock 3/8" (int/ext.)
(Superseded to 83081)

$

$

Not available

18

Homelite 81162

Nut - Hex (5/16-18)

Note: (Torque to 145 - 155 In/Lbs (16.4 - 17.5 Nm))

$

$

Not available

19

Homelite UP03727

Sub-Frame

$

$

Currently unavailable

20

Homelite A49399

Ground Strap

$

$

Currently unavailable

21

Homelite 49367

Isolator
(Superseded to UP03483)

$

$

Not available

22

Homelite 80088

Screw - Hex Hd. (5/16-18 X 1 1/2")

$

$

Not available

23

Homelite 81015

Nut - Wing

Note: (Torque to 145 - 155 In/Lbs (16.4 - 17.5 Nm))

$

$

Not available

24

Homelite UP03697

Fuel Filter

$

$

Currently unavailable

Homelite UP03387

Decal Kit

$

$

Not available

33

UNKNOWN

$

$

Not available
