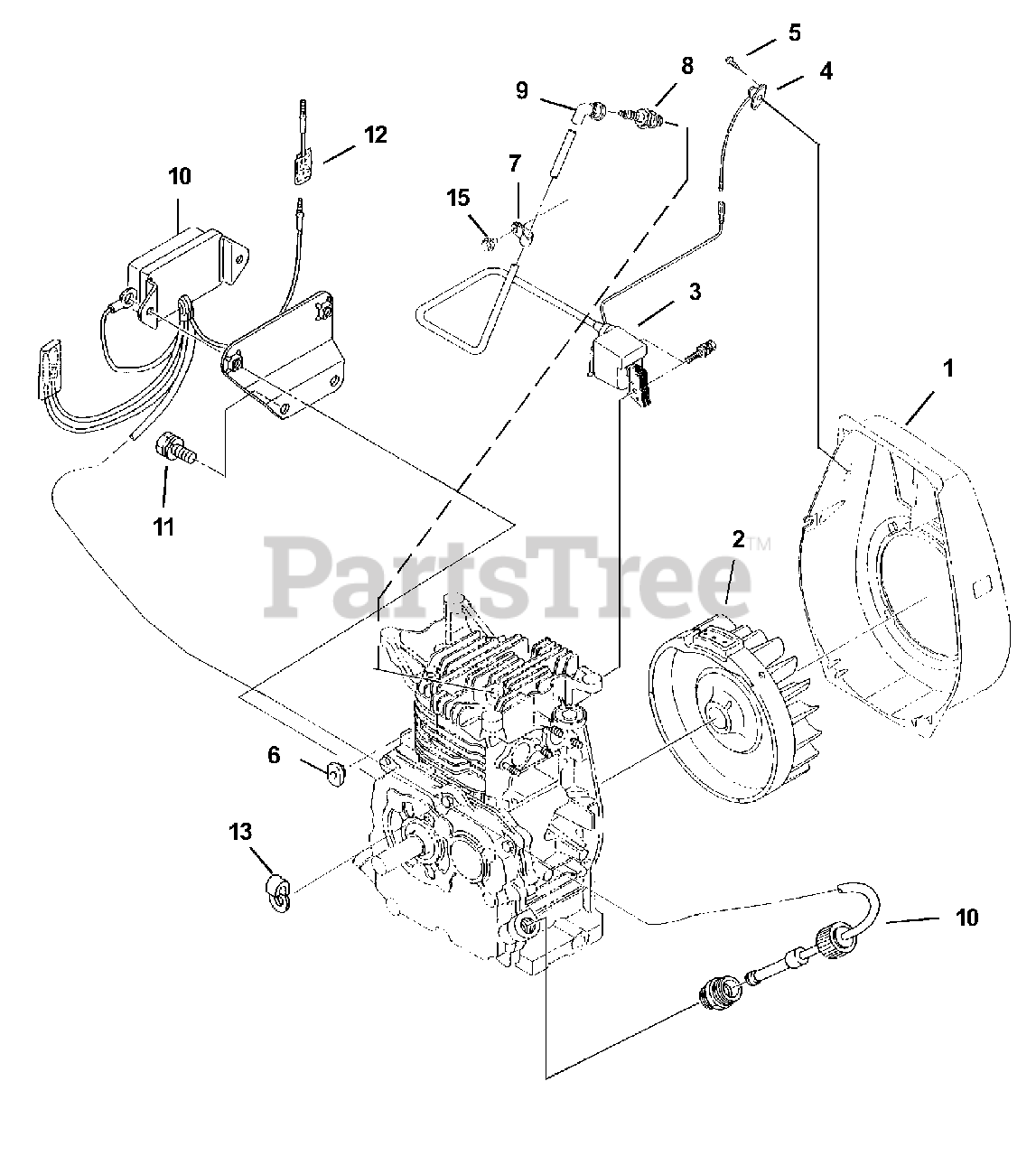

LR 4300 (UT-03843) - Homelite Generator Ignition Parts Diagram

Generator

Ignition Parts Diagram

  • Title
1

Homelite UP03301

Blower housing

$

$

Not available

2

Homelite UP03344

Flywheel

$

$

Not available

3

Homelite UP03345

Ignition coil

$

$

Not available

4

$

$

Not available

5

Homelite UP03347

Tapping screw (M4 X 0.7 X 8L)

Note: (Torque Specs 10-15 In/Lbs, 1.1-1.7 Nm)

$

$

Not available

6

$

$

Not available

$

$

Not available

8

Homelite UP03350

Spark plug

Note: (Torque Specs 166-195 In/Lbs, 18.8-22.0 Nm)

$

$

Not available

9

Homelite UP03351

Spark plug cap

$

$

Not available

10

Homelite UP03352

Oil sensor

$

$

Not available

11

Homelite UP03353

Bolt & Washer (M8 X 1.25 X 16L)

Note: (Torque Specs 122-137 In/Lbs, 13.8-15.5 Nm)

$

$

Not available

$

$

Not available

13

$

$

Not available

?14

Homelite UP03356

Plug terminal

$

$

Not available

15

Homelite UP03303

Flange Bolt

$

$

Not available
