LR 4300 (UT-03843) - Homelite Generator Crankcase Parts Diagram

Generator

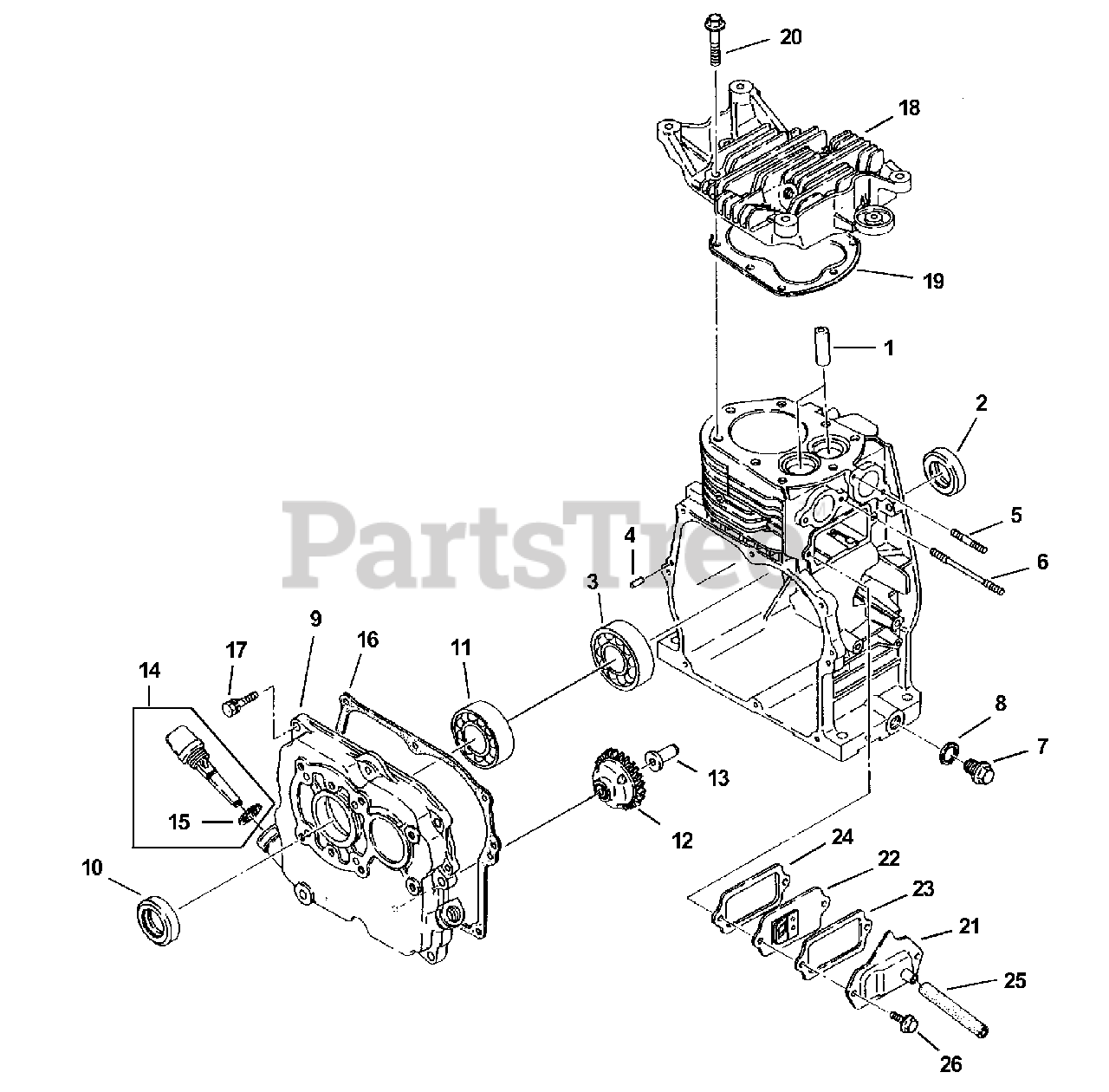

Crankcase Parts Diagram

  • Title

1

Homelite UP03217

Valve guide

$

$

Not available

2

Homelite UP03218

Oil seal

$

$

Not available

3

Homelite UP03219

Ball bearing

$

$

Not available

4

Homelite UP03220

Dowel pin

$

$

Not available

5

Homelite UP03221

Stud (M8 x 1.25 x 30L)

$

$

Not available

6

Homelite UP03222

Stud (M6 x 1.0 x 88L)

$

$

Not available

7

Homelite UP03223

Plug

$

$

Not available

8

Homelite UP03224

Gasket

$

$

Not available

9

Homelite UP03225

Main bearing cover

$

$

Not available

10

Homelite UP03218

Oil seal

$

$

Not available

11

Homelite UP03219

Ball bearing

$

$

Not available

12

Homelite UP03228

Governor gear cp

$

$

Not available

13

Homelite UP03229

Governor sleeve

$

$

Not available

14

Homelite UP03230

Oil gauge & gasket set

$

$

Not available

15

Homelite UP03231

Gasket

$

$

Not available

16

Homelite UP03232

Bearing cover gasket

$

$

Not available

17

Homelite UP03233

Bolt & washer (M8 x 1.25 x 28L)

Note: (Torque Specs 122-137 In/Lbs, 13.8-15.5 Nm)

$

$

Not available

18

Homelite UP03234

Cylinder head

$

$

Not available

19

Homelite UP03235

Head gasket

$

$

Not available

20

Homelite UP03236

Flange bolt

Note: (Torque Specs 159-188 In/Lbs, 18.0-21.2 Nm)

$

$

Not available

21

Homelite UP03237

Tappet cover

$

$

Not available

22

Homelite UP03238

Breather plate

$

$

Not available

23

Homelite UP03239

Tappet cover gasket

$

$

Not available

24

Homelite UP03240

Breather plate gasket

$

$

Not available

25

Homelite UP03241

Rubber pipe

$

$

Not available

26

Homelite UP03242

Flange bolt (M8 X 1.25 X 40L)

Note: (Torque Specs 22-36 In/Lbs, 2.5-4.1 Nm)

$

$

Not available

Homelite UP03243

Gasket set

$

$

Not available

Homelite UP03374

Complete engine

$

$

Not available
