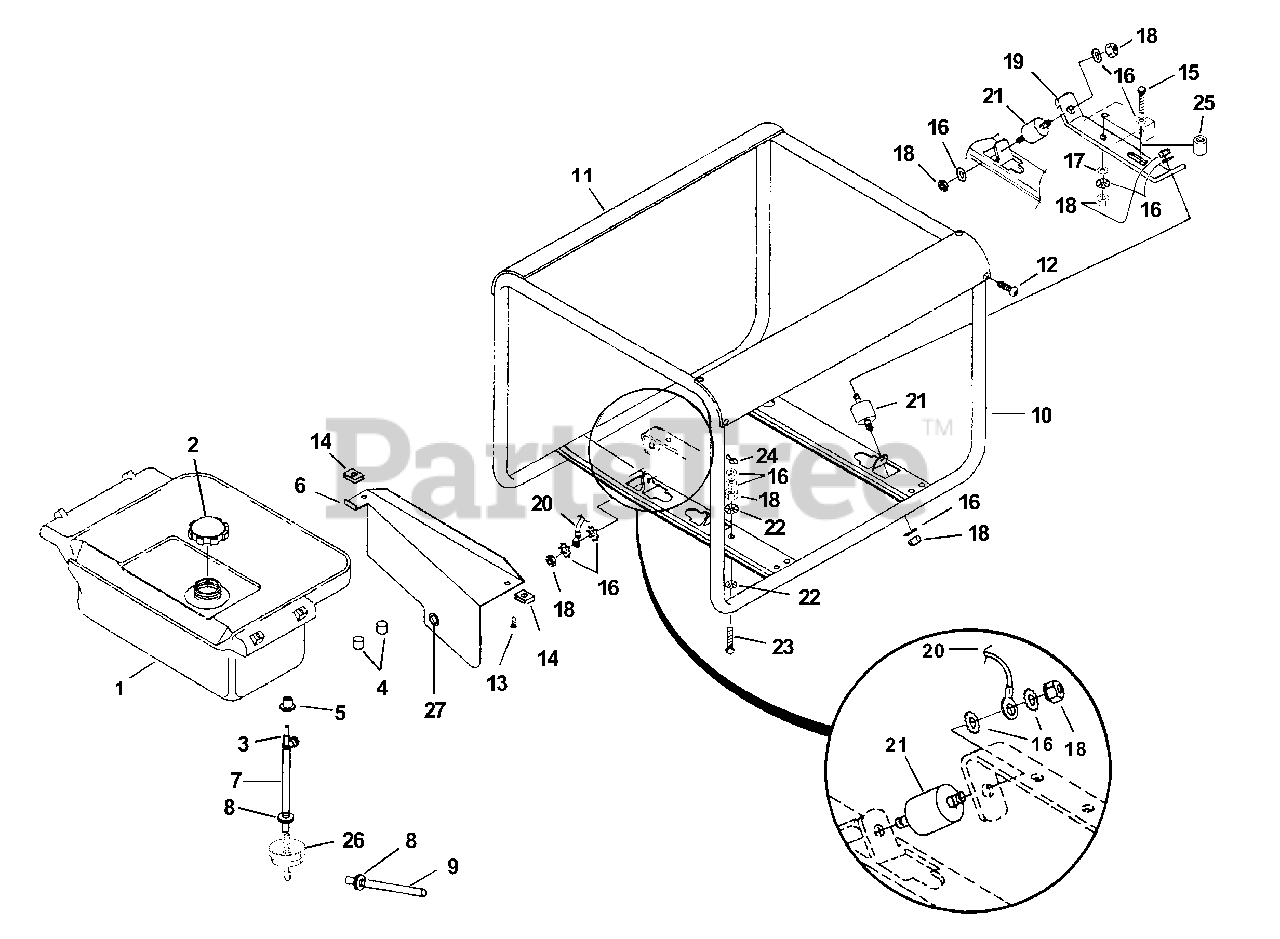

LR 4300 (UT-03828) - Homelite Generator Frame - Fuel Tank Parts Diagram

Generator

Frame - Fuel Tank Parts Diagram

  • Title

1

Homelite UP03373

Fuel Tank (5 Gal.)

$

$

Not available

2

Homelite 04864

Fuel Cap (2 1/4" dia.)

$

$

Not available

3

Homelite 07565

Valve-Fuel

$

$

Not available

4

Homelite 06644

Pad-Fuel Tank

$

$

Not available

5

Homelite 47222

Bushing

$

$

Not available

6

Homelite 063881

Shield-Fuel Tank
(Superseded to UP03461)

$

$

Not available

7

Homelite 4958608

Fuel Line
(Superseded to UP03486)

$

$

Not available

8

Homelite 49587

Clip-Hose

$

$

Not available

9

Homelite A49306

Fuel Line to Engine
(Superseded to UP03517)

$

$

Not available

10

Homelite UP03376

Roll Cage

$

$

Not available

11

Homelite UP03377

Brace-Tank Support

$

$

Not available

12

Homelite 96620

Screw-Torx (10-24 X 1/2")

Note: (Torque Specs 25-35 In/Lbs, 2.8-4.0 Nm)

$4.99

$

Usually ships in 3-7 days

0

13

Homelite 80577

Screw-Pan Hd. (8-32 X 3/8")
(Superseded to UP03389)

Note: (Torque Specs 8-12 In/Lbs, .9-1.4 Nm)

$

$

Not available

14

Homelite 81227

Nut-Hi Speed

$

$

Not available

15

Homelite 80268

Screw-Hex Hd. (5/16-18 X 2 1/4")

Note: (Torque Specs 145-155 In/Lbs, 16.4-17.5 Nm)

$

$

Not available

16

Homelite 83081

Washer-Lock (int.)

$

$

Not available

17

Homelite 84046

Washer-Flat

$

$

Not available

18

Homelite 81162

Nut-Hex (5/16-18)

Note: (Torque Specs 145-155 In/Lbs, 16.4-17.5 Nm)

$

$

Not available

19

Homelite 49265

Support-Engine
(Superseded to UP03535)

$30.99

$

Usually ships in 3-7 days

0

20

Homelite A49399

Ground Strap

$

$

Currently unavailable

21

Homelite 49367

Isolator
(Superseded to UP03483)

$

$

Not available

22

Homelite 83033

Washer-Lock-3/8" (ext./int.)
(Superseded to 83081)

$

$

Not available

23

Homelite 80088

Screw-Hex Hd. (5/16-18 X 1 1/2")

Note: (Torque Specs 145-155 In/Lbs, 16.4-17.5 Nm)

$

$

Not available

24

Homelite 81015

Nut-Wing

$

$

Not available

25

Homelite UP03375

Spacer

$

$

Not available

26

Homelite UP03697

Fuel Filter

$

$

Currently unavailable

27

Homelite 04818

Bushing Snap-In
(Superseded to UP03457)

$

$

Not available

?28

Homelite UP03372

Decal Kit

$

$

Not available
