LR 4300 (UT-03828) - Homelite Generator Crankshaft - Piston Parts Diagram

Generator

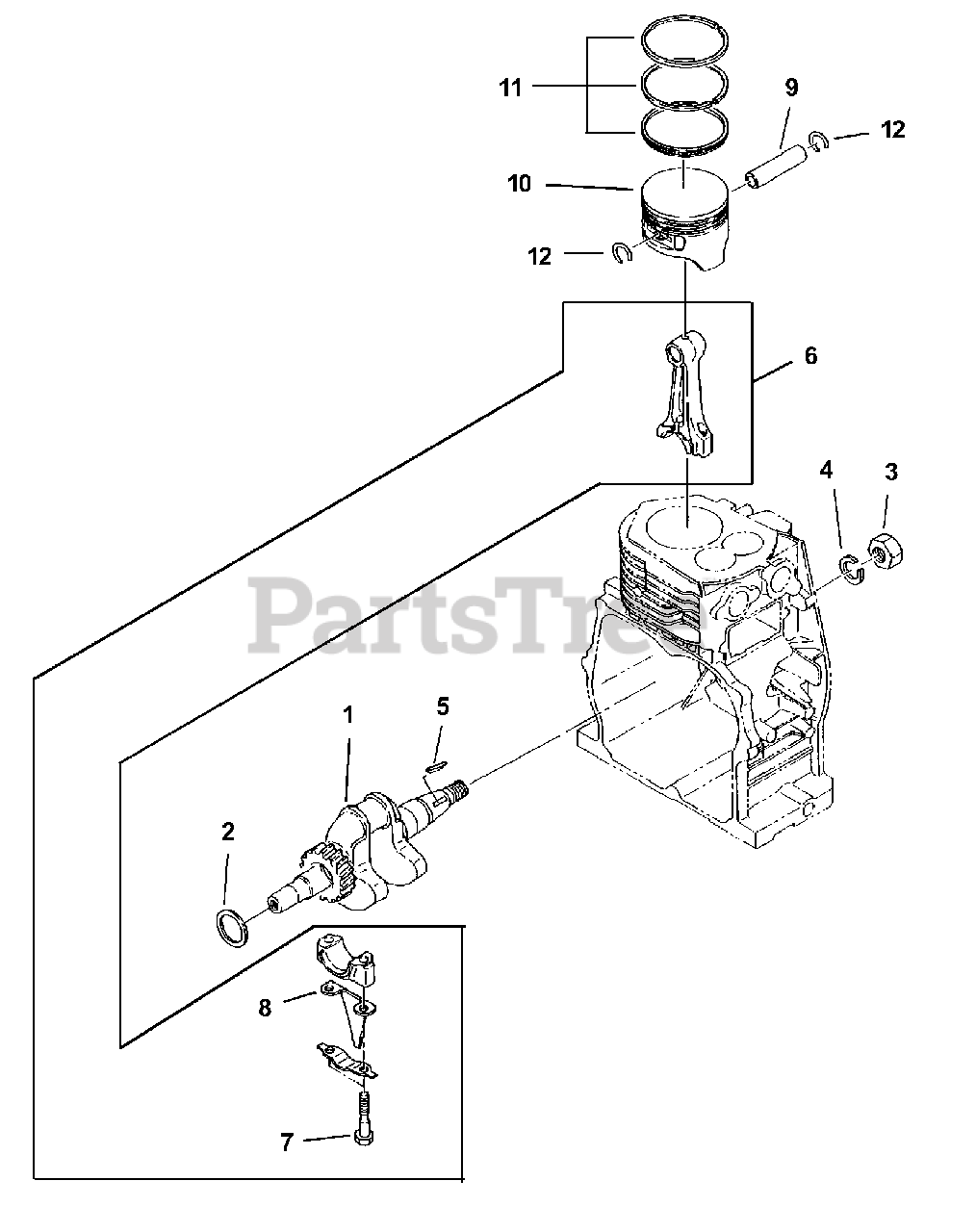

Crankshaft - Piston Parts Diagram

  • Title

1

Homelite UP03244

Crankshaft

$

$

Not available

2

Homelite UP03246

Spacer (.6)

$

$

Not available

Homelite UP03247

Spacer (.8)

$

$

Not available

Homelite UP03248

Spacer (1.0)

$

$

Not available

3

Homelite UP03249

Nut (M18 X 1.5)

Note: (Torque Specs 434-470 In/Lbs, 49.0-53.1 Nm)

$

$

Not available

4

Homelite UP03250

Spring washer

$

$

Not available

5

Homelite UP03251

Woodruff key

$

$

Not available

6

Homelite UP03252

Connecting rod

$

$

Not available

Homelite UP03253

Connecting rod (.5)

$

$

Not available

7

Homelite UP03254

Connecting rod bolt (M7 X 1.0 X 38L)

Note: (Torque Specs 122-145 In/Lbs, 13.8-16.4 Nm)

$

$

Not available

8

Homelite UP03255

Oil scraper

$

$

Not available

9

Homelite UP03256

Piston pin

$

$

Not available

10

Homelite UP03257

Piston

$

$

Not available

Homelite UP03258

Piston (.25)

$

$

Not available

Homelite UP03259

Piston (.5)

$

$

Not available

11

Homelite UP03260

Piston ring set (std)

$

$

Not available

Homelite UP03261

Piston ring set (.25)

$

$

Not available

Homelite UP03262

Piston ring set (.5)

$

$

Not available

12

Homelite UP03263

Clip

$

$

Not available

Homelite UP03243

Gasket set

$

$

Not available

Homelite UP03374

Complete engine

$

$

Not available
