LR 4300 (UT-03828) - Homelite Generator Carburetor Parts Diagram

Generator

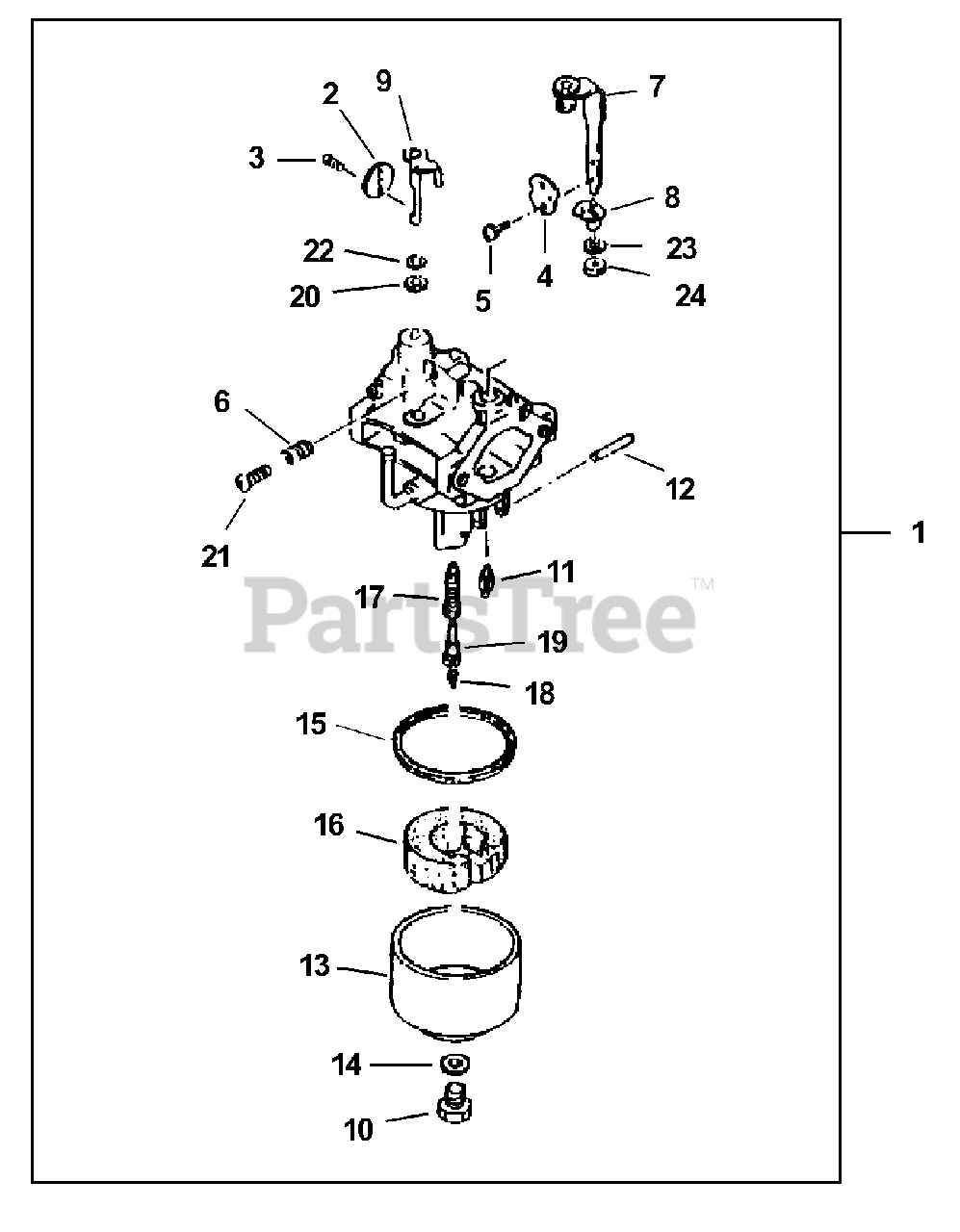

Carburetor Parts Diagram

  • Title

1

Homelite UP03312

Carburetor

$

$

Not available

2

Homelite UP03313

Throttle valve

$

$

Not available

3

Homelite UP03314

Screw (M3 X 0.5 X 4L)

Note: (Torque Specs 8-10 In/Lbs, 0.9-1.1 Nm)

$

$

Not available

4

Homelite UP03315

Choke valve

$

$

Not available

5

Homelite UP03316

Screw (M2.5 X 0.45 X 4L)

Note: (Torque Specs 5-7 In/Lbs, 0.6-0.8 Nm)

$

$

Not available

6

Homelite UP03318

Spring

$

$

Not available

7

Homelite UP03319

Choke lever

$

$

Not available

8

Homelite UP03320

Ring

$

$

Not available

9

Homelite UP03321

Throttle shaft

$

$

Not available

10

Homelite UP03322

Bolt (M8 X 1.25 X 7L)

Note: (Torque Specs 51-65 In/Lbs, 5.8-7.3 Nm)

$

$

Not available

11

Homelite UP03324

Needle valve

$

$

Not available

12

Homelite UP03325

Float pin

$

$

Not available

13

Homelite UP03326

Float chamber body

$

$

Not available

14

Homelite UP03327

Washer

$

$

Not available

15

Homelite UP03328

Chamber packing

$

$

Not available

16

Homelite UP03329

Float

$

$

Not available

17

Homelite UP03330

Main nozzle

$

$

Not available

18

Homelite UP03342

Main jet

$

$

Not available

19

Homelite UP03331

Pipe

$

$

Not available

20

Homelite UP03333

Seal

$

$

Not available

21

Homelite UP03334

Screw-Mixture

$

$

Not available

22

Homelite UP03335

Packing

$

$

Not available

23

Homelite UP03336

Choke cap

$

$

Not available

24

Homelite UP03337

Seal

$

$

Not available
