LR 4300 (UT-03828) - Homelite Generator Brush Head - Generator Parts Diagram

Generator

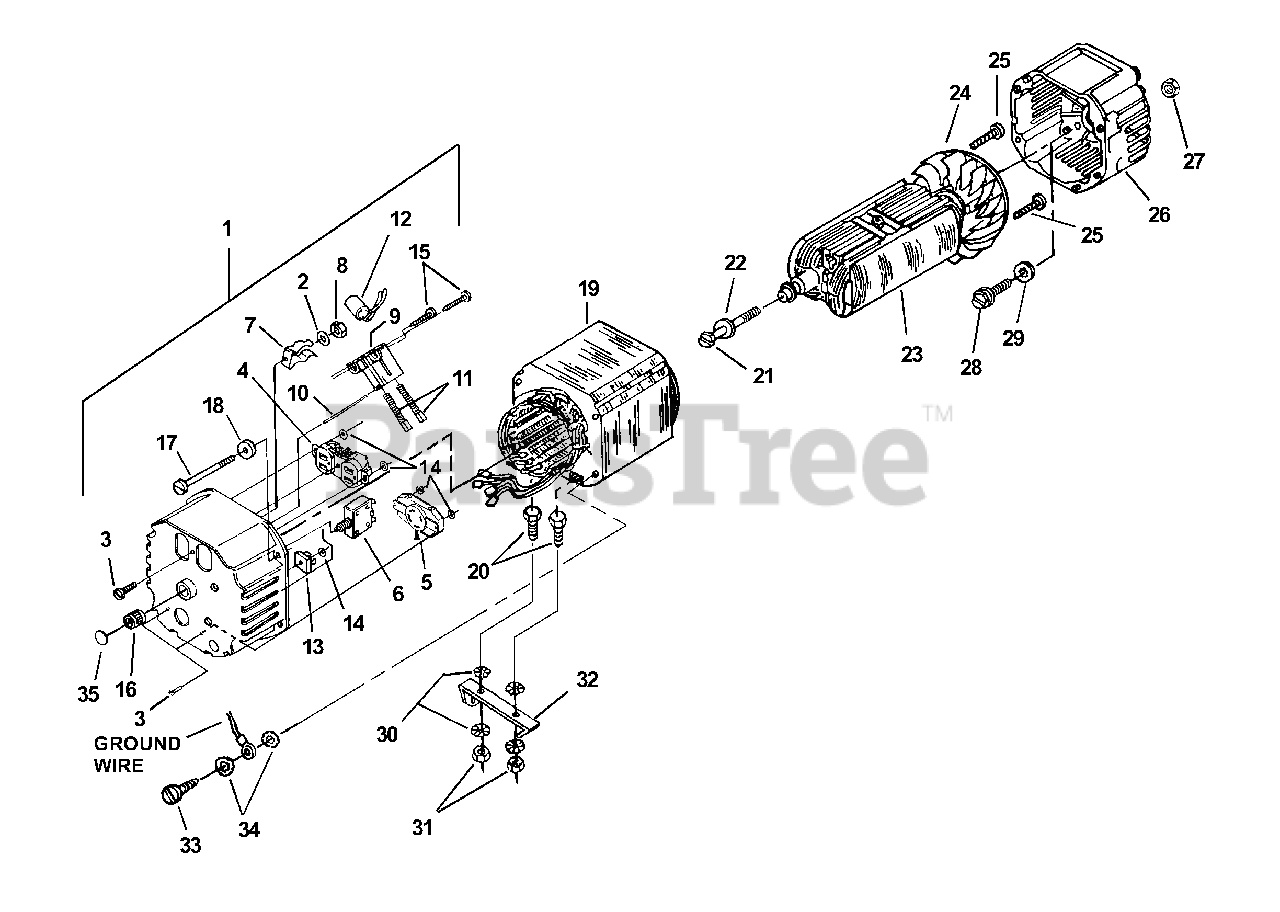

Brush Head - Generator Parts Diagram

  • Title

1

Homelite A06923

Complete Brush Head
(Superseded to UP06849)

$

$

Not available

2

Homelite 83004

Washer-Lock (ext.)
(Superseded to 83119)

$3.99

$

Usually ships in 3-7 days

0

3

Homelite 80630

Screw-Mach. Pan Hd. (6-32 X 1/2")

Note: (Torque Specs 9-13 In/Lbs, 1.0-1.5 Nm)

$

$

Not available

4

Homelite 49832

1A Receptacle-Duplex (Nema 5-20R)

$

$

Not available

5

Homelite 46508

Receptacle-Locking (120V/240V) (Nema L14-20R)

$

$

Not available

6

Homelite 09183

Breaker-Circuit (20 amp.)

$

$

Not available

7

Homelite 02435

Clip-Spring Cap

$

$

Not available

8

Homelite 81002

Nut-Hex (6-32)

$

$

Not available

9

Homelite 02365

Brush Holder
(Superseded to UP03449)

$36.99

$

Usually ships in 3-7 days

0

Homelite A03035

Brush & Retainer Kit
(Superseded to UP03736)

$

$

Not available

10

Homelite 02857

Pin

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 02664

Brush
(Superseded to UP03736)

$

$

Not available

12

Homelite A02860

Capacitor (w/Lead)

$

$

Currently unavailable

13

Homelite 95672

Rectifier

$37.99

$

Usually ships in 3-7 days

0

14

Homelite 02437

Washer-Shaft Retention

$5.99

$

Usually ships in 3-7 days

0

15

Homelite 82526

Screw-Pan Hd. (6-19 X 3/4 )

Note: (Torque Specs 12-16 In/Lbs, 1.4-1.8 Nm)

$

$

Not available

16

Homelite 03044

Bearing-Needle

$

$

Not available

17

Homelite 4885306

Bolt - Stator
(Superseded to UP03433)

Note: (Torque Specs 60-80 In/Lbs, 6.8-9.0 Nm)

$

$

Not available

18

Homelite 84124

Washer-Flat
(Superseded to UP03418)

$5.49

$

Usually ships in 3-7 days

0

19

Homelite A02796AS

Stator
(Superseded to A02796BS)

Note: (When ordering stator, also order Decal Kit P/N UP03372.)

$674.99

$

Usually ships in 3-7 days

0

20

Homelite 80083

Screw- Hex Hd. (5/16-18 X 3/4")

Note: (Torque Specs 150-155 In/Lbs, 16.9-17.5 Nm)

$

$

Not available

21

Homelite 4885210

Bolt-Rotor

Note: (Torque Specs 100-140 In/Lbs, 11.3-15.8 Nm)

$

$

Currently unavailable

22

Homelite 83002

Washer-Lock (5/16")
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

23

Homelite A02799

AS Rotor

$

$

Currently unavailable

24

Homelite A04013

Fan-Generator
(Superseded to UP03737)

$

$

Not available

25

Homelite 82526

Screw-Pan Hd. (6-19 X 3/4")

Note: (Torque Specs 12-16 In/Lbs, 1.4-1.8 Nm)

$

$

Not available

26

Homelite 020269

End Bell
(Superseded to UP06695)

$

$

Not available

27

Homelite 81267

Nut-Hex (1/4-20)

$

$

Not available

28

Homelite 80604

Screw-Hex Hd. (5/16-24 X 3/4")
(Superseded to UP03390)

Note: (Torque Specs 120-150 In/Lbs, 13.6-16.9 Nm, Red 262 Loctite Required)

$

$

Not available

29

Homelite 83078

Washer-Lock

$

$

Not available

30

Homelite 83033

Washer-Lock-3/8" (int./ext.)
(Superseded to 83081)

$

$

Not available

31

Homelite 81162

Nut-Hex (5/16-18)

$

$

Not available

32

Homelite 063781

Support-Engine

$

$

Not available

33

Homelite 82538

Screw-Taptite (10/24 X 3/4")

Note: (Torque Specs 45-55 IN/Lbs, 5.1-6.2 Nm)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 83121

Washer-Lock (int./ext.)

$

$

Not available

35

Homelite 02438

Plug-Expansion

$

$

Not available

Homelite UP03372

Decal Kit

$

$

Not available
