LR 2500 (UT-03773) - Homelite Generator Generator End Parts Diagram

Generator

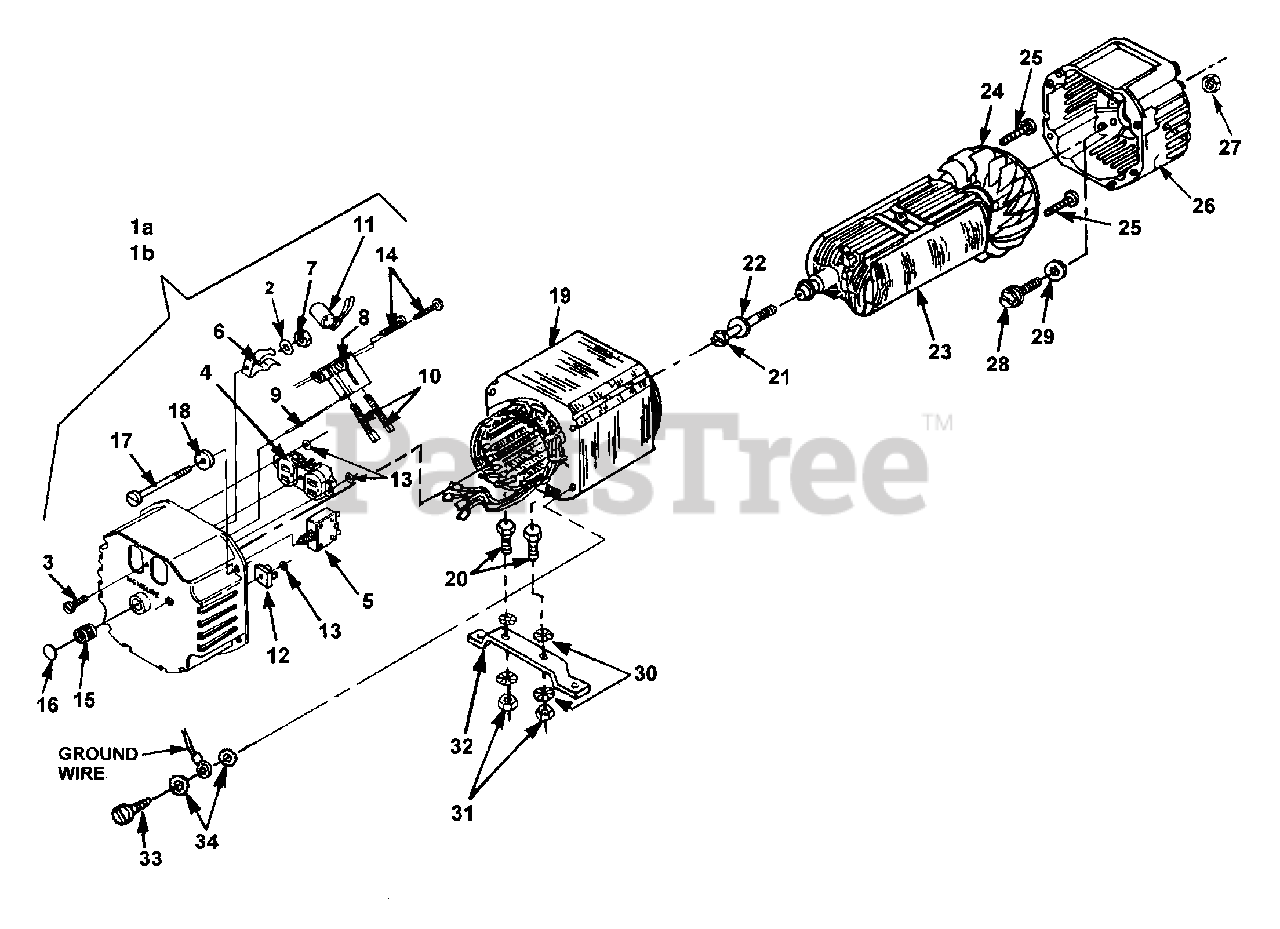

Generator End Parts Diagram

  • Title
1A

Homelite A02439A

COMPLETE BRUSH HEAD
(Superseded to UP06918)

$

$

Not available

1B

Homelite A03294

COMPLETE BRUSH HEAD (CSA)

$

$

Currently unavailable

2

Homelite 83119

WASHER-Lock (ext.)

$

$

Currently unavailable

3

Homelite 80630

SCREW-Mach. Pan Hd. (6-32 X 1/2")

$

$

Not available

4

Homelite 50991A

RECEPTACLE-Duplex (Nema 5-15R)
(Superseded to UP03497)

$

$

Not available

Homelite 49803A

RECEPTACLE (Nema 5-20R) (CSA)

$

$

Not available

5

Homelite 49831A

BREAKER-Circuit (20 amp.)
(Superseded to UP03489)

$

$

Not available

Homelite 01649A

BREAKER-Circuit (15 amp.) (CSA)
(Superseded to UP06951)

$

$

Not available

6

Homelite 02435

CLIP-Spring Cap

$

$

Not available

7

Homelite 81002

NUT-Hex (6-32)

$

$

Not available

8

Homelite 02365

BRUSH HOLDER
(Superseded to UP03449)

$36.99

$

Usually ships in 3-7 days

0

Homelite A03035

BRUSH & RETAINER KIT
(Superseded to UP03736)

$

$

Not available

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 02664

BRUSH
(Superseded to UP03736)

$

$

Not available

11

Homelite A02860

CAPACITOR (w/Lead)

$

$

Currently unavailable

12

Homelite 95672

RECTIFIER

$37.99

$

Usually ships in 3-7 days

0

13

Homelite 02437

WASHER-Shaft Retention

$5.99

$

Usually ships in 3-7 days

0

14

Homelite 82526

SCREW-Pan Hd. (6-19 X 3/4)

$

$

Not available

15

Homelite 03044

BEARING-Needle

$

$

Not available

16

Homelite 02438

PLUG-Expansion

$

$

Not available

17

Homelite 4885305

BOLT-Stator

$

$

Not available

18

Homelite 84124

WASHER-Flat (1/4")
(Superseded to UP03418)

$5.49

$

Usually ships in 3-7 days

0

19

Homelite A02797AS

STATOR
(Superseded to A02797BS)

$

$

Not available

20

Homelite 80083

SCREW-Hex Hd. (5/16-18 X 3/4")

$

$

Not available

21

Homelite 4885211

BOLT-Rotor

$

$

Not available

22

Homelite 83002

WASHER-Lock (5/16")
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

$

$

Not available

24

Homelite A04013

FAN-Generator
(Superseded to UP03737)

$

$

Not available

25

Homelite 82526

SCREW-Pan Hd. (6-19 X 3/4")

$

$

Not available

26

Homelite 020267

END BELL
(Superseded to UP06695)

$

$

Not available

27

Homelite 81267

NUT-Hex (1/4-20)

$

$

Not available

28

Homelite 80604

SCREW-Hex Hd. (5/16-24 X 3/4")
(Superseded to UP03390)

$

$

Not available

29

Homelite 83081

WASHER-Lock

$

$

Not available

30

Homelite 83033

WASHER-Lock (int./ext.)
(Superseded to 83081)

$

$

Not available

31

Homelite 81162

NUT-Hex (5/16-18)

$

$

Not available

32

Homelite 028441

BRACKET-Generator Support

$

$

Currently unavailable

33

Homelite 82538

SCREW-Taptite (10/24 X 3/4")

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 83121

WASHER-Lock (int./ext.)

$

$

Not available
