LR 130 (954150006-D) - Husqvarna Lawn Tractor (2000-02) SEAT Parts Diagram

Lawn Tractor

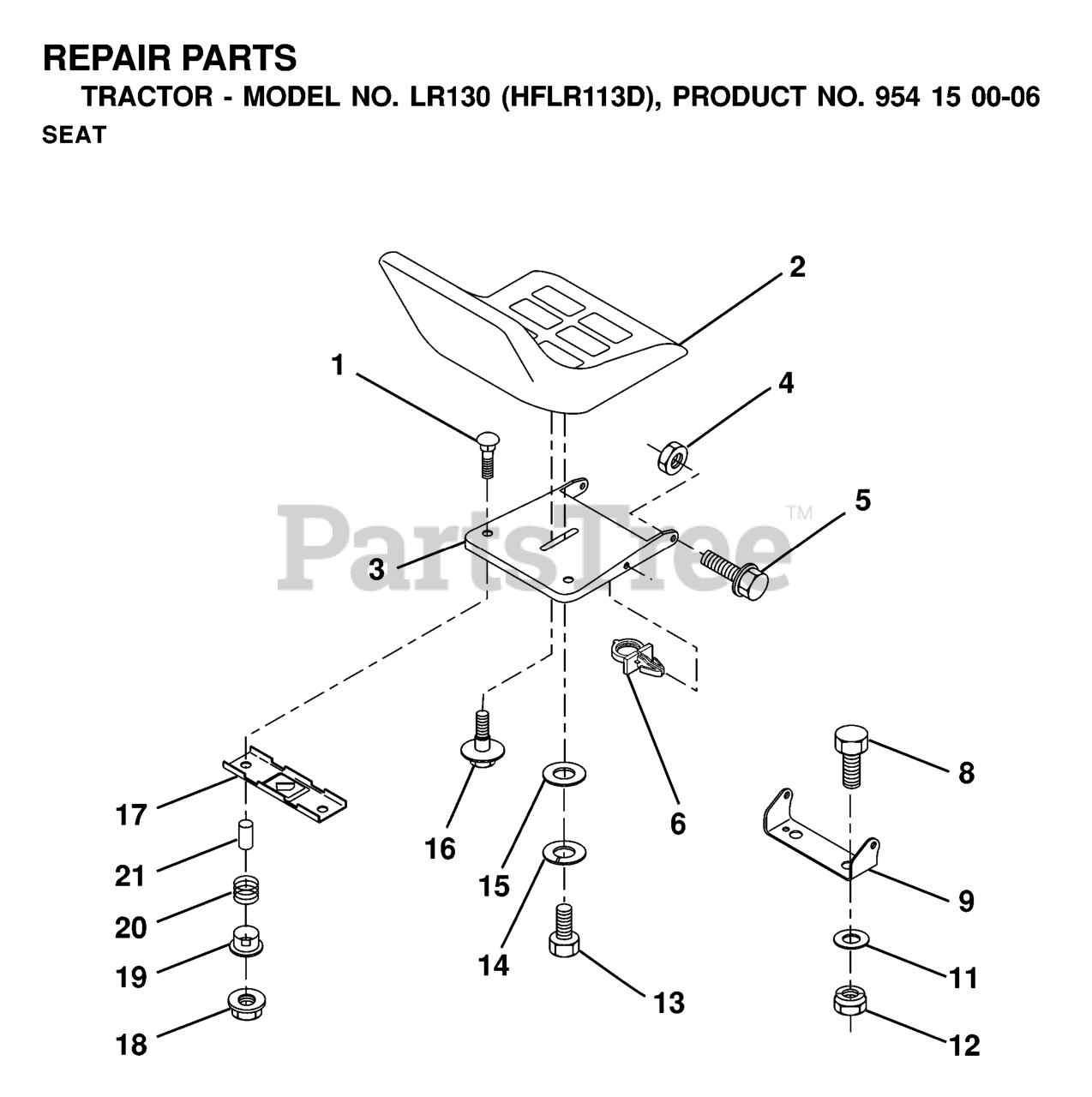

SEAT Parts Diagram

  • Title

16

Husqvarna 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532153236

BOLT SHOULDER 5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

18

Husqvarna 532171041

NUT LOCK
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

17

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874780814

BOLT
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 810040800

LOCKWASHER

$6.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532171040

BOLT
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532155925

PAN, SEAT
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532140838

SEAT
(Superseded to 532401042)

$206.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532134300

SPACER SPLIT 28X.96

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

8

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532121250

SPRING

$7.49

$

Usually ships in 3-10 days

0
