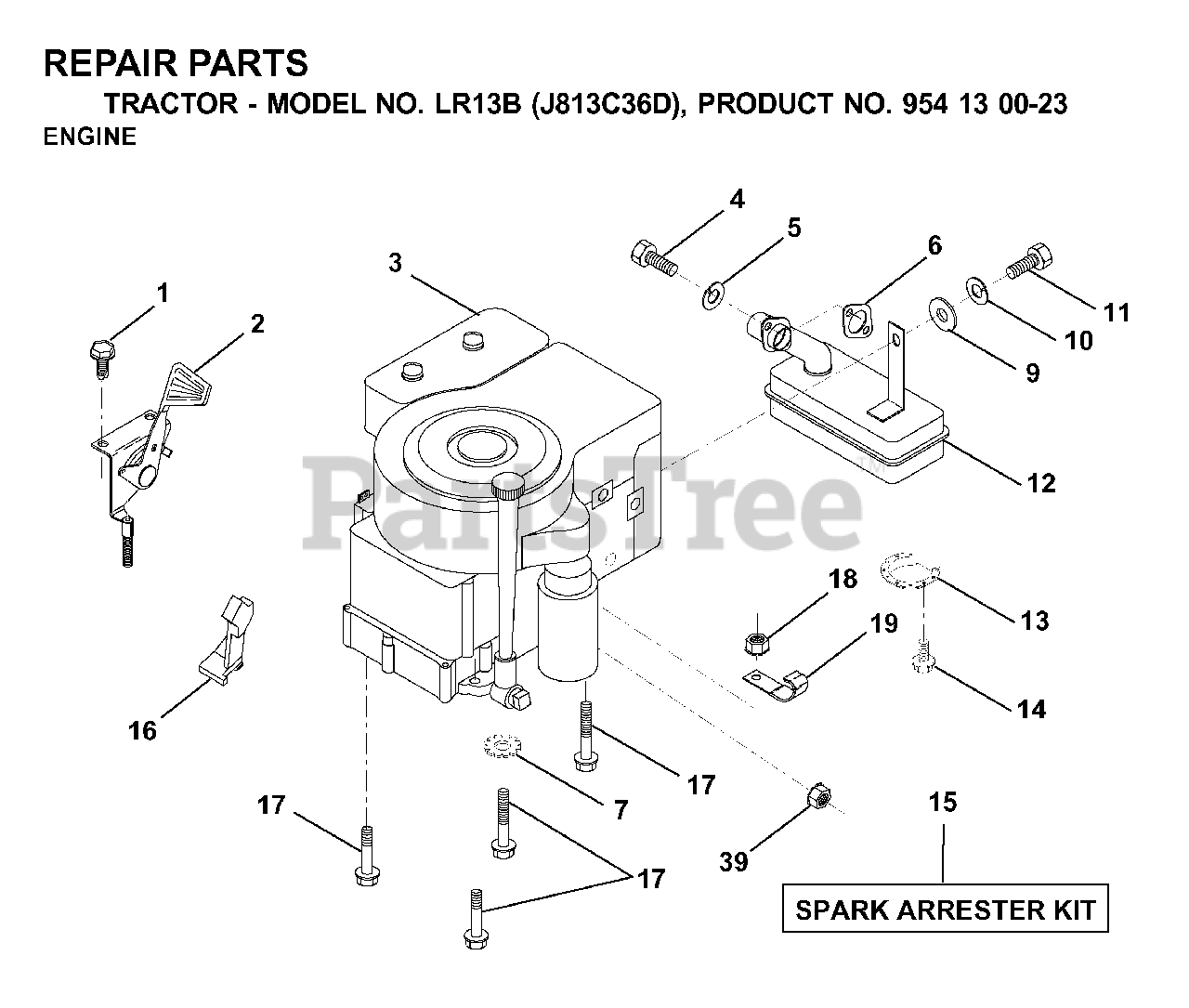

LR 13 B (954130023) - Jonsered Rear-Engine Riding Mower (2000-04) ENGINE Parts Diagram

Rear-Engine Riding Mower

ENGINE Parts Diagram

  • Title
1

Jonsered 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

2

Jonsered 532133025

THROTTLE CONTROL

$30.99

$

Usually ships in 3-10 days

0

4

Jonsered 871070512

SCREW
(Superseded to 532192334)

$

$

Not available

5

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

7

Jonsered 811050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

9

Jonsered 819101216

WASHER
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

10

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

12

$242.99

$

Usually ships in 3-10 days

0

13

Jonsered 532101326

DEFL MUFFLER LTV
(Superseded to 101326L)

$

$

Not available

14

Jonsered 817030808

SCREW
(Superseded to 817030814)

$

$

Not available

15

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

16

Jonsered 532127951

STOP THROTTLE

$

$

Not available

17

Jonsered 817490624

SCREW LT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

18

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

39

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available
