LR 13 B (954130023) - Jonsered Rear-Engine Riding Mower (2000-04) ELECTRICAL Parts Diagram

Rear-Engine Riding Mower

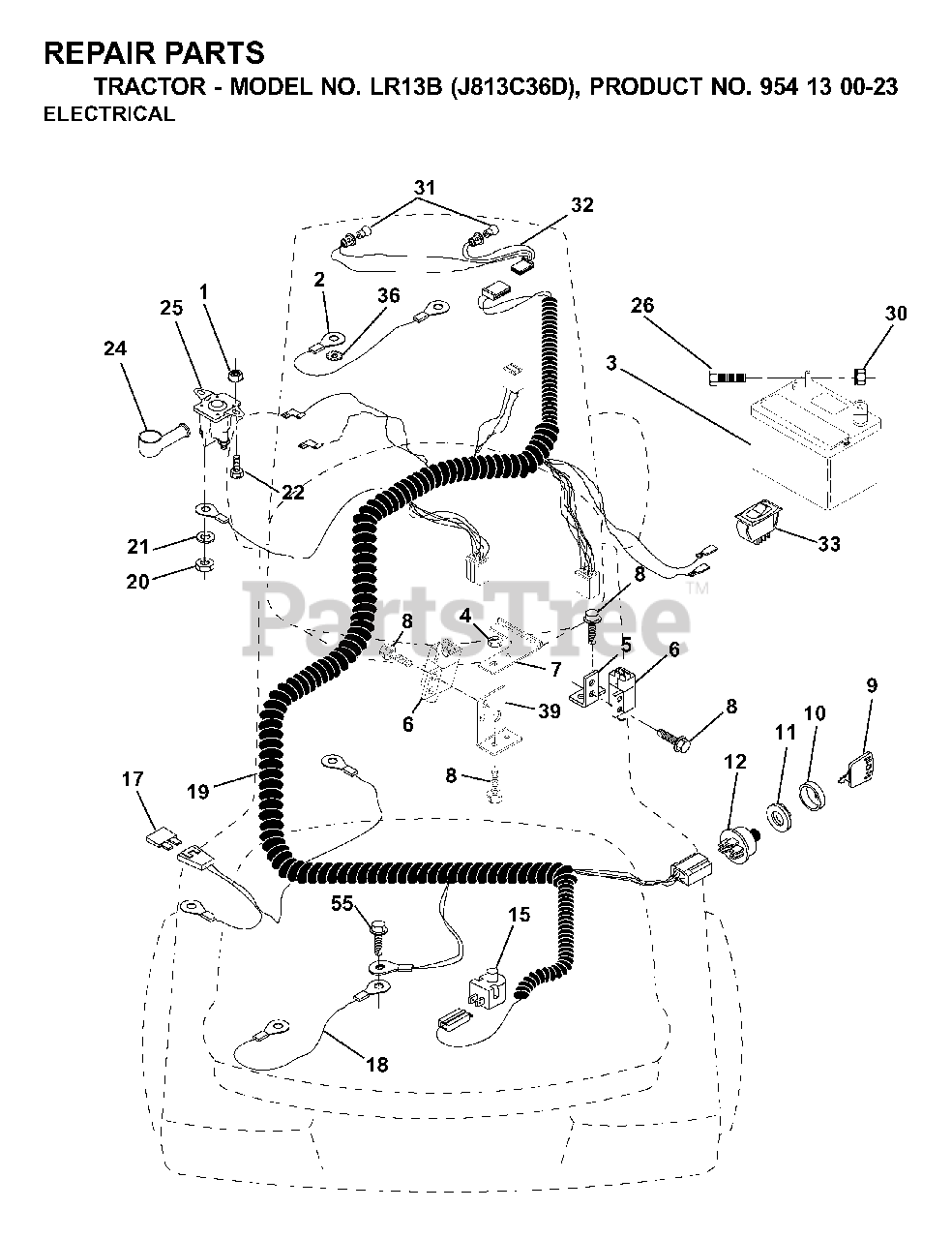

ELECTRICAL Parts Diagram

  • Title

$

$

Not available

2

Jonsered 532108423

CABLE ASM

$8.99

$

Usually ships in 3-10 days

0

3

Jonsered 532144924

No Description Available
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

4

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 532108236

BRACKET LT

$2.99

$

Usually ships in 3-10 days

0

6

Jonsered 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

7

Jonsered 532146374

KEEPER, ACTUAT. L.R.

$

$

Not available

$4.99

$

In Stock, Qty 14

0

9

Jonsered 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 7

0

10

Jonsered 532141226

COVER SWITCH KEY

$5.99

$

Usually ships in 3-10 days

0

11

Jonsered 532140400

NUT, IGNITION
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

12

Jonsered 532163088

IGNITION SWITCH
(Superseded to 532178744)

$44.99

$

In Stock, only 1 left!

0

15

Jonsered 532121305

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

17

$6.49

$

Usually ships in 3-10 days

0

18

Jonsered 532128353

No Description Available

$3.99

$

Usually ships in 3-10 days

0

19

Jonsered 532170207

No Description Available

$

$

Not available

20

Jonsered 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

22

Jonsered 871110408

No Description Available
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

24

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

25

Jonsered 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

26

$7.49

$

In Stock, only 1 left!

0

30

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

31

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

32

$

$

Not available

33

Jonsered 532110712

SWITCH LT

$9.49

$

In Stock, only 2 left!

0

36

Jonsered 811150400

LOCKWASHER

$2.99

$

Usually ships in 3-10 days

0

39

$2.99

$

Usually ships in 3-10 days

0

55

$6.49

$

Usually ships in 3-10 days

0
