LR 13 A (954130017) - Jonsered Rear-Engine Riding Mower (2000-02) STEERING Parts Diagram

Rear-Engine Riding Mower

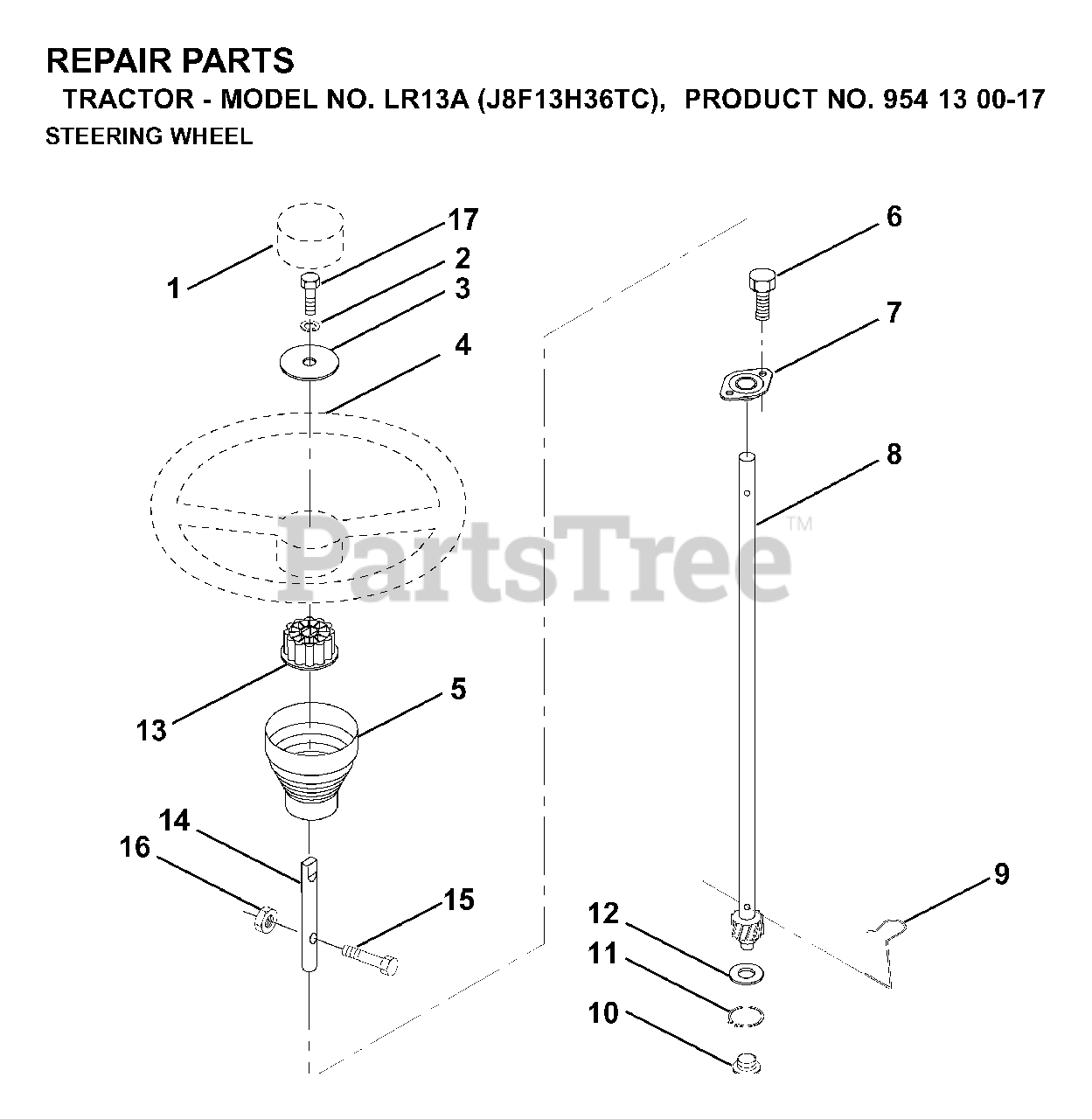

STEERING Parts Diagram

  • Title

1

Jonsered 532140045

RP INSERT
(Superseded to 532175905)

$6.99

$

Usually ships in 3-10 days

0

2

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

3

Jonsered 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

$

$

Not available

4

Jonsered 532140044

No Description Available

$

$

Not available

5

Jonsered 532121897

No Description Available
(Superseded to 583666401)

$3.99

$

Usually ships in 3-10 days

0

6

Jonsered 532152927

SCREW

$7.49

$

In Stock, only 2 left!

0

7

Jonsered 532155104

BUSHING
(Superseded to 532155107)

$7.99

$

Usually ships in 3-10 days

0

8

Jonsered 532147391

STEERING SHAFT
(Superseded to 532148966)

$

$

Not available

9

Jonsered 532124210

STEERING CLIP

$

$

Not available

10

Jonsered 532123438

BUSHING STEER LWR

$6.99

$

In Stock, only 2 left!

0

11

Jonsered 812000045

RING

$7.49

$

In Stock, only 4 left!

0

12

Jonsered 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

13

Jonsered 532100711

ADAPTER LT
(Superseded to 532186737)

$9.49

$

In Stock, Qty 8

0

14

Jonsered 532153720

EXT SHAFT STEERING
(Superseded to 532153721)

$

$

Not available

15

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0
