LR 13 A (954130017) - Jonsered Rear-Engine Riding Mower (2000-02) HOOD Parts Diagram

Rear-Engine Riding Mower

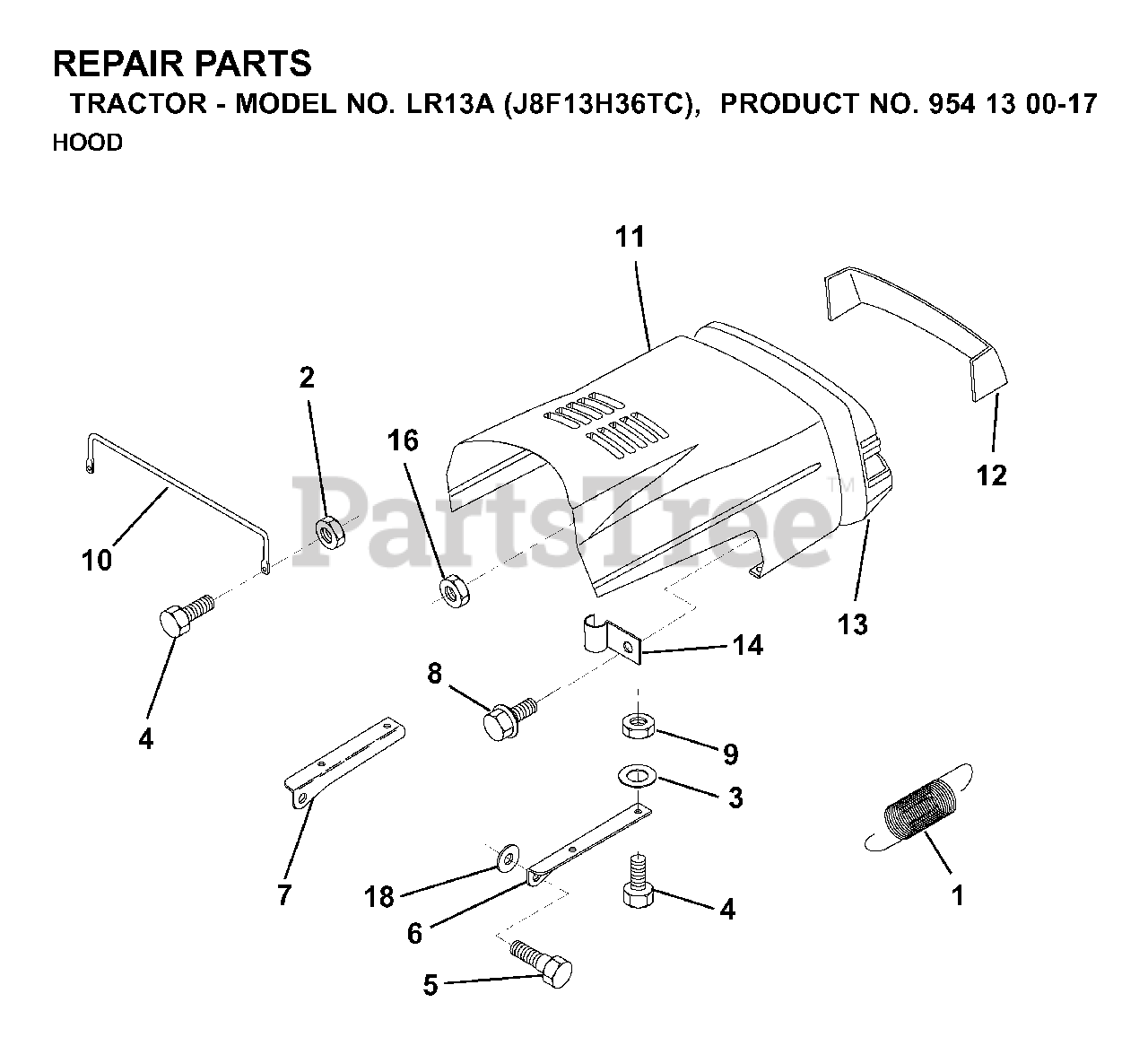

HOOD Parts Diagram

  • Title
1

Jonsered 532124657

EXT SPRING

$10.99

$

Usually ships in 3-10 days

0

2

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

4

Jonsered 874780412

BOLT
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 1 left!

0

6

Jonsered 532122549

BRKT HOOD RH
(Superseded to 122549X)

$

$

Not available

7

Jonsered 532122548

BRKT HOOD LH

$2.99

$

Usually ships in 3-10 days

0

8

Jonsered 532164863

SCREW
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

9

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

10

Jonsered 532123693

BRACE,HOOD

$

$

Not available

11

Jonsered 532125429

No Description Available

$

$

Not available

12

Jonsered 532171843

No Description Available

$

$

Not available

13

Jonsered 532171978

No Description Available

$

$

Not available

14

$

$

Not available

$7.99

$

In Stock, only 1 left!

0

18

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0
