LR 13 (954130023) - Jonsered Rear-Engine Riding Mower (1998-12) BRAKE / REAR MOWER LIFT Parts Diagram

Rear-Engine Riding Mower

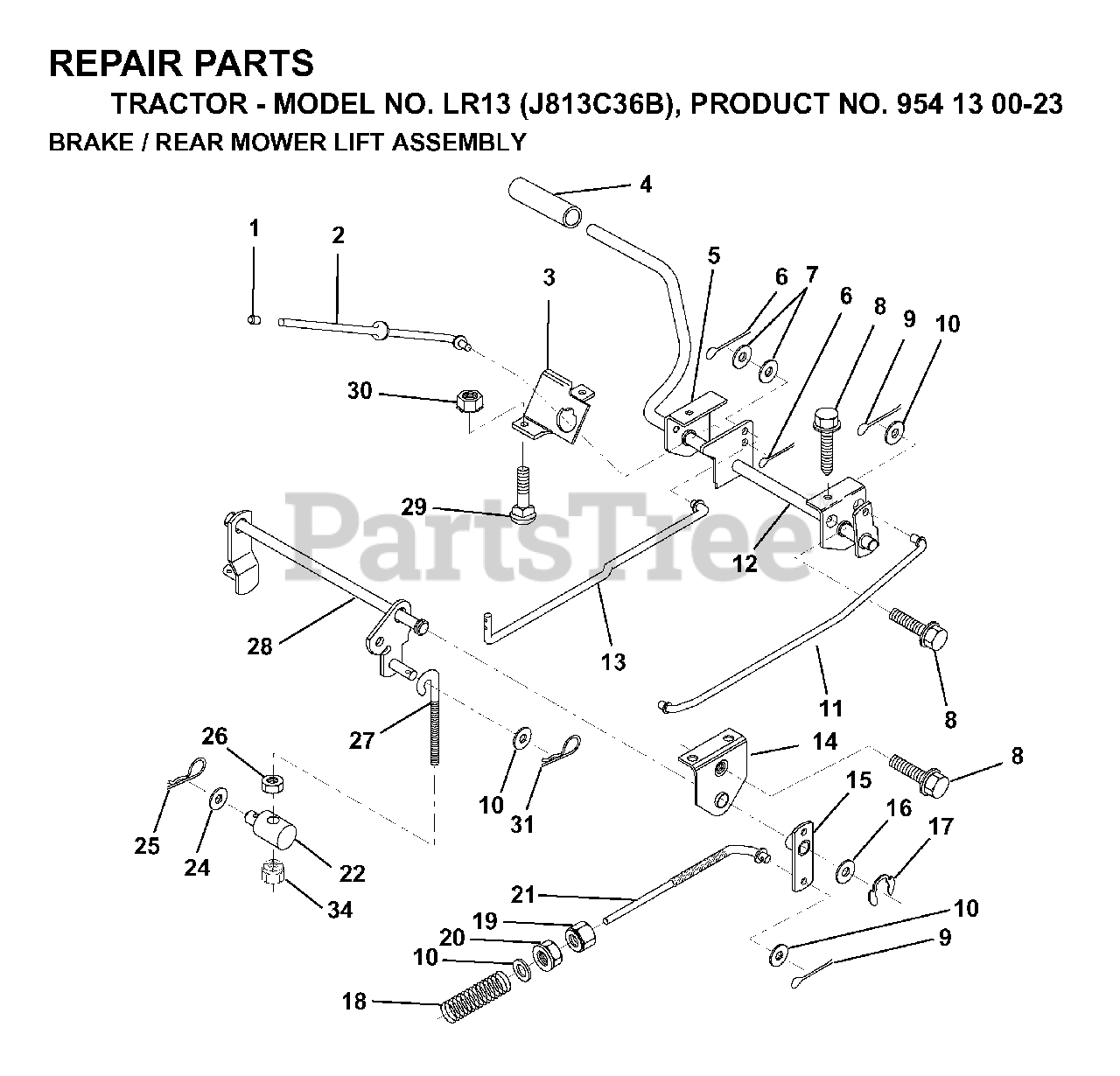

BRAKE / REAR MOWER LIFT Parts Diagram

  • Title
1

Jonsered 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

2

Jonsered 532123436

ROD,PARK BRAKE

$

$

Not available

3

Jonsered 532123437

BRKT,PARK BRAKE

$

$

Not available

4

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 532122504

BRKT,CLU PEDAL LH

$

$

Not available

6

Jonsered 876020312

COTTER PIN
(Superseded to 876020308)

$

$

Not available

$6.49

$

In Stock, Qty 5

0

8

$6.49

$

Usually ships in 3-10 days

0

9

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

10

$4.99

$

In Stock, Qty 5

0

11

Jonsered 532123543

ROD,FRT BRAKE
(Superseded to 123543X)

$

$

Not available

12

Jonsered 532139933

CLUTCH/BRAKE PEDAL ASSY

$

$

Not available

13

Jonsered 532123394

ROD,CLUTCH
(Superseded to 123394X)

$

$

Not available

14

Jonsered 532121978

BRKT,LIFT SHAFT

$

$

Not available

15

Jonsered 532133332

ARM, BRAKE ASMBLY

$

$

Not available

16

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 812000034

KLIP RING

$

$

Not available

18

Jonsered 532151332

SPRING, BRAKE ROD

$6.49

$

In Stock, only 1 left!

0

19

Jonsered 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

20

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Jonsered 532131460

ROD REAR BRAKE
(Superseded to 532131461)

$13.99

$

Usually ships in 3-10 days

0

22

Jonsered 532144585

TRUNNION, LEFT

$

$

Not available

24

$1.99

$

Usually ships in 3-10 days

0

25

Jonsered 532124961

SPRING TI
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

26

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 532127369

LINK.MOWER.REAR

$

$

Not available

28

Jonsered 532140776

REAR MOWER LIFT ASSY

$

$

Not available

$7.49

$

In Stock, Qty 19

0

30

Jonsered 873510500

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

31

Jonsered 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

34

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 8

0
