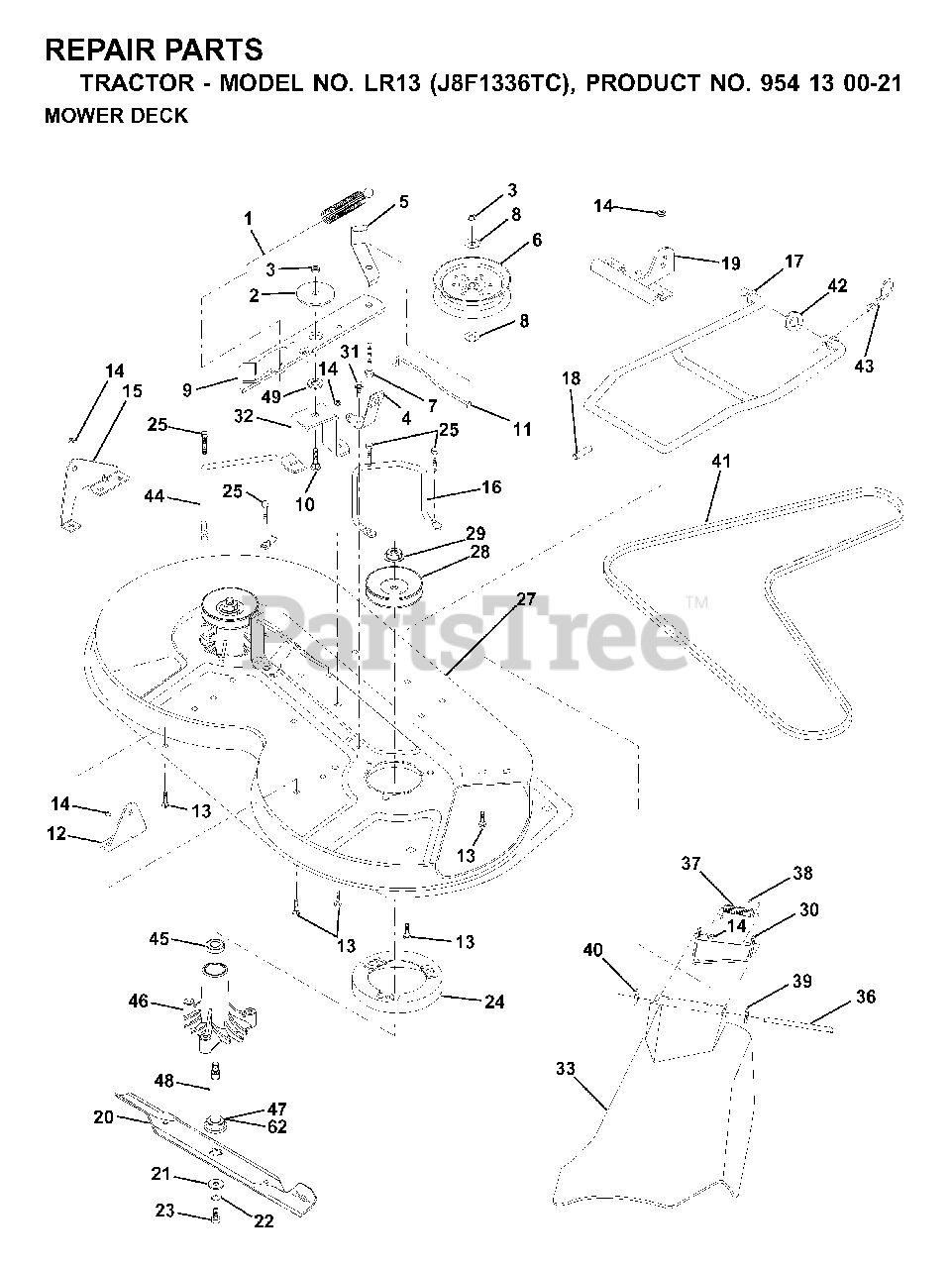

LR 13 (954130021) - Jonsered Rear-Engine Riding Mower (2000-02) MOWER DECK / CUTTING DECK Parts Diagram

Rear-Engine Riding Mower

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532140064

SPRING-MOWER CLUTCH

$24.99

$

In Stock, only 1 left!

0

2

Jonsered 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 2 left!

0

3

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

4

Jonsered 532130840

BRAKE ASSEMBLY

$12.99

$

Usually ships in 3-10 days

0

5

Jonsered 532131251

IDLER BELT GUIDE
(Superseded to 131251)

$

$

Not available

6

Jonsered 532121316

PULLEY IDLER

$51.99

$

In Stock, only 4 left!

0

7

Jonsered 872110616

BOLT
(Superseded to 596136301)

$3.99

$

Usually ships in 3-10 days

0

8

Jonsered 819131410

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

9

Jonsered 532127744

IDLER ARM ASSY
(Superseded to 532140092)

$

$

Not available

10

Jonsered 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 532130841

BRAKE ROD

$30.99

$

Usually ships in 3-10 days

0

12

Jonsered 532127356

BRKT LIFT REAR
(Superseded to 127356)

$2.99

$

Usually ships in 3-10 days

0

13

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

15

Jonsered 532127357

BRKT LIFT REAR LH

$

$

Not available

16

Jonsered 532153298

BELT KEEPER

$14.99

$

Usually ships in 3-10 days

0

17

Jonsered 532128508

MOWER LINK STABILIZER

$

$

Not available

18

Jonsered 532128511

PIN GROOVE

$

$

Not available

19

Jonsered 532127380

BRKT LINK STABILIIZER

$

$

Not available

20

Jonsered 531013126

No Description Available

$

$

Not available

21

Jonsered 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

22

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

23

Jonsered 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

24

Jonsered 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

25

Jonsered 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 532173984)

$4.99

$

In Stock, Qty 20+

0

27

Jonsered 532156600

MOWER HOUSING
(Superseded to 532174082)

$

$

Not available

28

Jonsered 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

30

Jonsered 532136631

BRACKET ASM DEFLECTOR
(Superseded to 136631)

$7.49

$

Usually ships in 3-10 days

0

31

$6.49

$

Usually ships in 3-10 days

0

32

Jonsered 532122051

SUPT,IDLER ARM
(Superseded to 122051X)

$2.99

$

Usually ships in 3-10 days

0

33

Jonsered 532171156

No Description Available

$

$

Not available

36

Jonsered 532121980

HINGE ROD
(Superseded to 583383801)

$

$

Not available

37

Jonsered 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0

38

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

39

Jonsered 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

40

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

41

Jonsered 531013133

No Description Available

$

$

Not available

42

Jonsered 819171616

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

43

Jonsered 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

44

Jonsered 532140608

KEEPER LH

$27.99

$

Usually ships in 3-10 days

0

45

$13.99

$

In Stock, Qty 14

0

46

Jonsered 532128774

HSG MANDREL

$34.99

$

Usually ships in 3-10 days

0

47

Jonsered 532129895

BEARING
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

48

Jonsered 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

49

Jonsered 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

62

Jonsered 532153390

WASHER FELT

$6.49

$

In Stock, only 3 left!

0

--

Jonsered 532130794

MANDREL ASM, LH 5PT STAR

$56.99

$

In Stock, Qty 5

0

--

Jonsered 532156866

DECK SERVICE.36"

$728.99

$

Usually ships in 3-10 days

0
