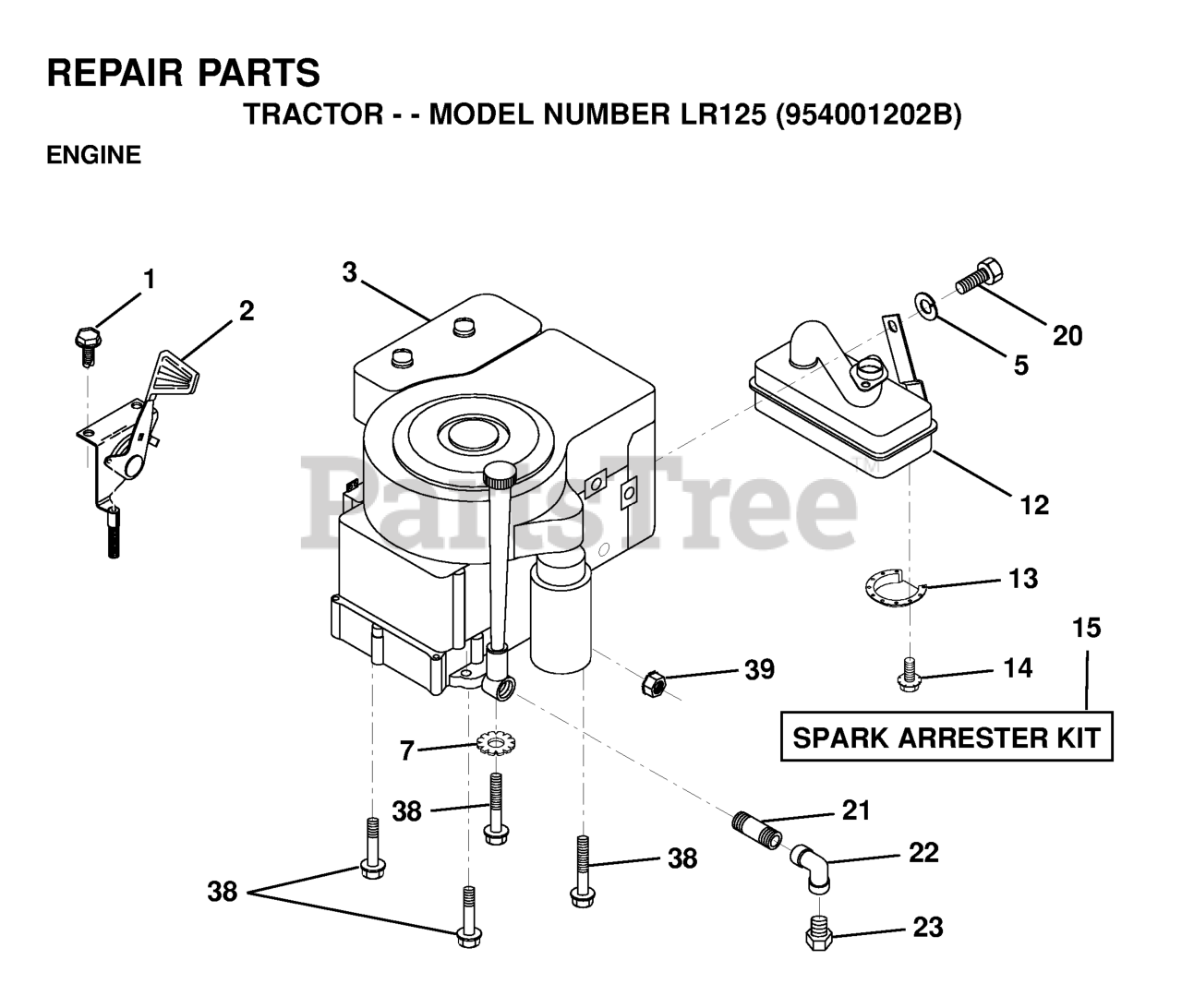

LR 125 (954001202-B) - Husqvarna Lawn Tractor (1995-03) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

39

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

22

Husqvarna 813200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

13

Husqvarna 532101326

DEFL MUFFLER LTV

$

$

Not available

5

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

38

Husqvarna 532125398

BOLT, HEX
(Superseded to 740108025)

$

$

Not available

12

Husqvarna 532138149

MUFFLER KOH

$

$

Not available

2

Husqvarna 532132753

THROTTLE CONTROL

$

$

Not available

7

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

20

Husqvarna 874760508

Bolt, Hex Head, Fin. 5/16-18 x 1/2

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 813280328

Std. Pipe Nipple 3/8 - 18 NPT x 3 1/2

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 817030808

SCREW
(Superseded to 817030814)

$

$

Not available

15

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

1

Husqvarna 817060408

SCREW

$5.99

$

In Stock, only 2 left!

0
