LR 125 (954000522-A) - Husqvarna Lawn Tractor (1992-12) Fender/Chassis/Hood Parts Diagram

Lawn Tractor

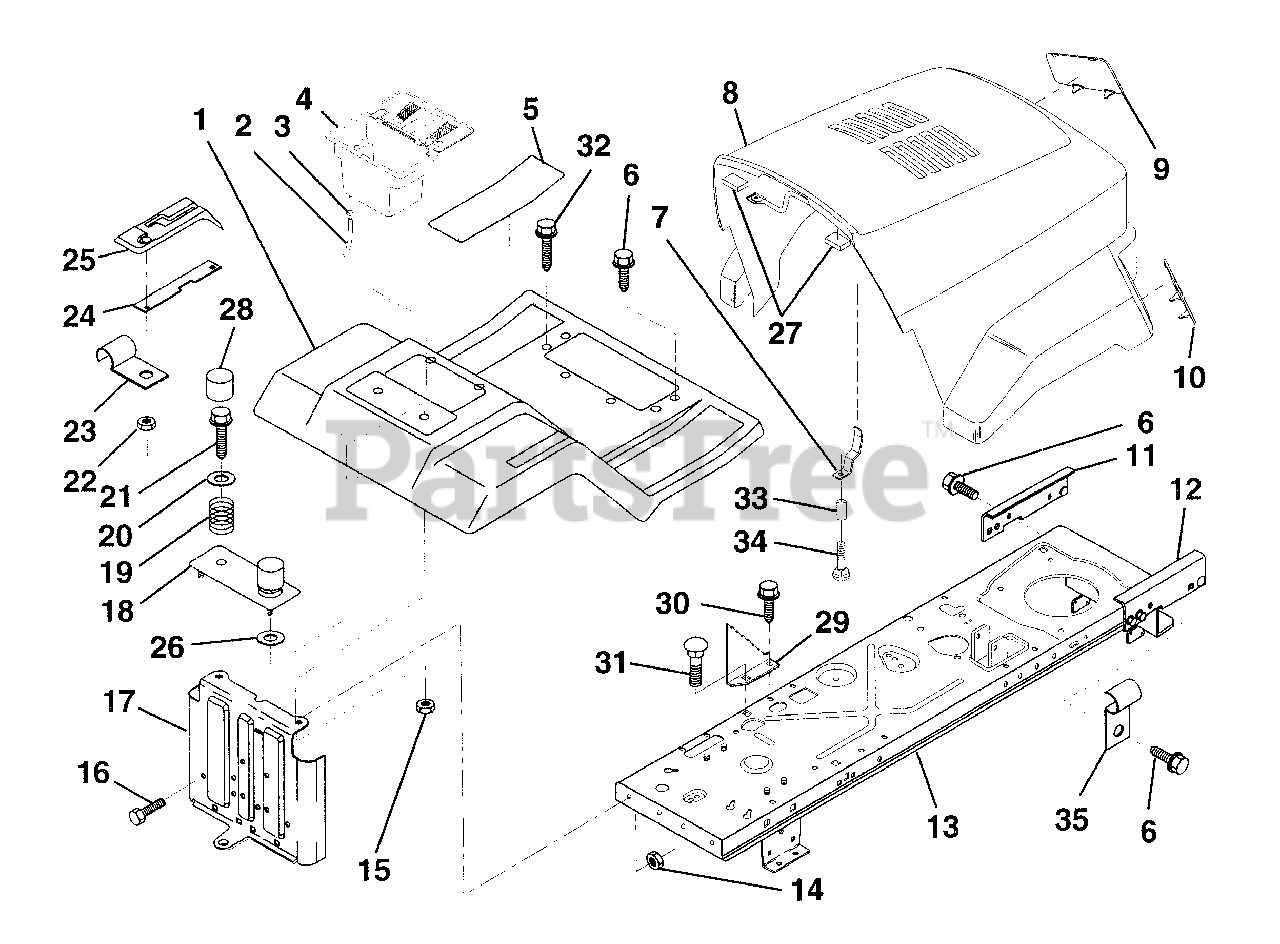

Fender/Chassis/Hood Parts Diagram

  • Title

1

Husqvarna 532125434

Fender/Footrest
(Superseded to 532140956)

$

$

Not available

2

Husqvarna 532109238

Tube, Battery Drain

$

$

Not available

3

Husqvarna 532109596

Clamp, Hose

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532129965

Case, Battery
(Superseded to 532404349)

$

$

Not available

5

Husqvarna 532126700

Pad, Footrest

$

$

Not available

6

Husqvarna 817490512

Screw, Hex Washer Head, Thd., Roll. 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532131318

Latch, Hood
(Superseded to 532139969)

$

$

Not available

8

Husqvarna 532138739

Hood and Grill Assembly
(Superseded to 532140354)

Note: (Includes Key Numbers 9 and 10)

$

$

Not available

9

Husqvarna 532130986

Lens, L.H.

$12.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532130985

Lens, R.H.

$

$

Not available

11

Husqvarna 532128449

Pivot Bracket Assy., Chassis, L.H.

$

$

Not available

12

Husqvarna 532128808

Pivot Bracket Assy., Chassis, R.H.

$

$

Not available

13

Husqvarna 532137097

Assembly, Frame
(Superseded to 532139893)

$

$

Not available

14

Husqvarna 873680500

Nut, Hex, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873510400

Nut, Hex, Keps 1/4-20 UNC
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

16

Husqvarna 87460512

Bolt, Hex Head 5/16-18 UNC x 3/4

$

$

Currently unavailable

17

Husqvarna 532127880

Drawbar

$

$

Not available

18

Husqvarna 532125142

Plate Assembly, Battery
(Superseded to 532127115)

$

$

Not available

19

Husqvarna 532124181

Spring, Compression, Seat
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

20

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Gauge
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 817490612

Screw, Hex Washer Head, Thd., Roll. 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

22

Husqvarna 532124316

Nut, Self-Threading, Washer Head 3/16

$

$

Currently unavailable

23

Husqvarna 532126470

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124307

Bar, Shift Lock

$2.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532126995

Console, Shift Control

$14.99

$

Usually ships in 3-10 days

0

26

Husqvarna 819091413

Washer 9/32 x 7/8 x 13 Gauge
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532126938

Bumper, Hood

$

$

Not available

28

Husqvarna 532124233

Cap, Seat Spring

$

$

Currently unavailable

29

Husqvarna 532132562

Plate, Depth Stop

$

$

Not available

30

Husqvarna 817490508

Screw, Thd., Roll. 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 872110506

Bolt, Carriage 5/16-18 x 3/4

$7.49

$

In Stock, Qty 20+

0

32

Husqvarna 817490516

Screw, Thd., Roll. 5/16-18 x 1
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532138748

Spacer
(Superseded to 532147031)

$

$

Not available

34

Husqvarna 872110412

Bolt, Carriage 1/4-20 x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available
