LR 125 (954000522-A) - Husqvarna Lawn Tractor (1992-12) Engine Parts Diagram

Lawn Tractor

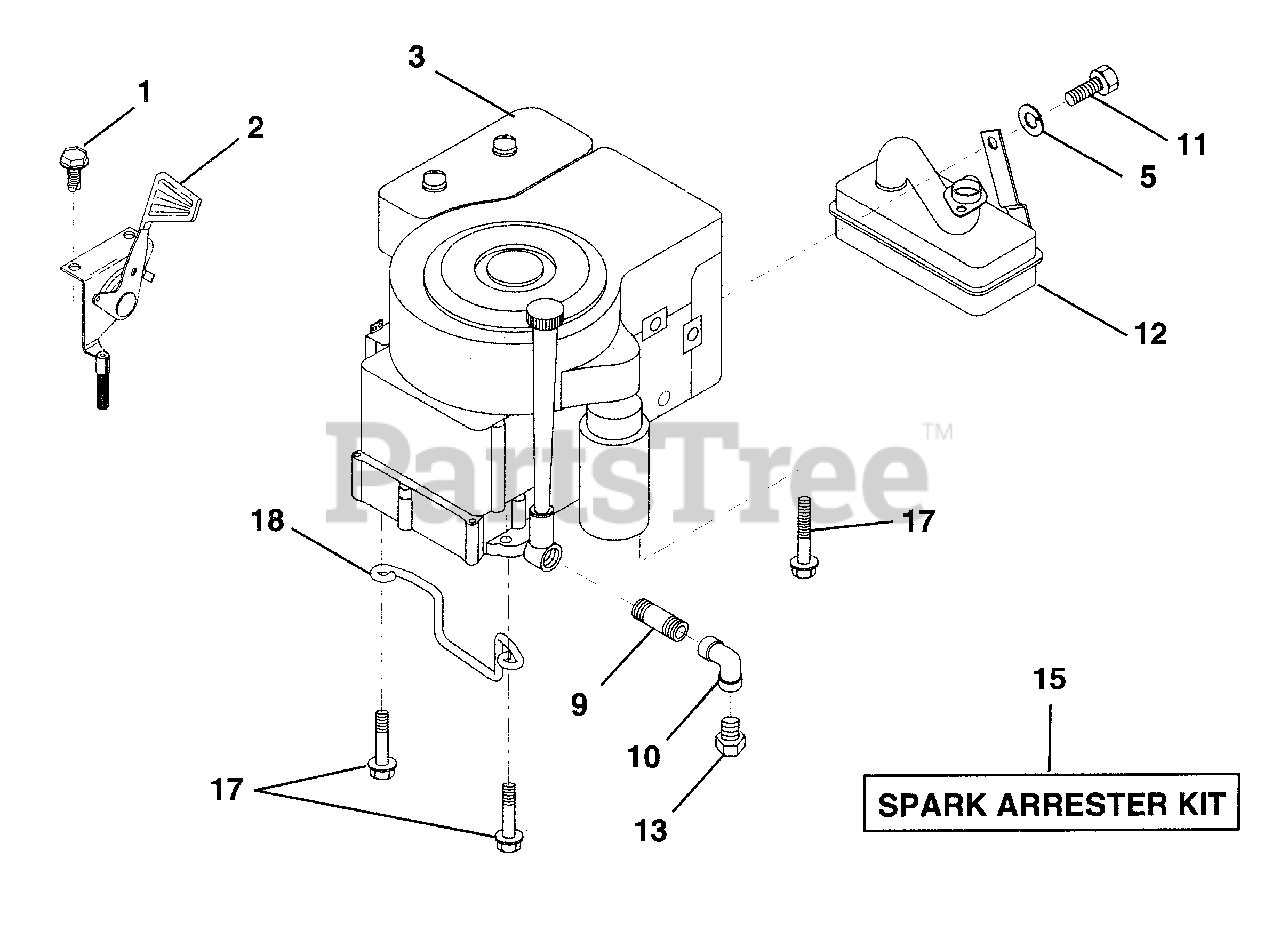

Engine Parts Diagram

  • Title

1

Husqvarna 817060408

Screw, Hex Head, Thread Cutting 1/4-20 x 1/2

$5.99

$

In Stock, only 2 left!

0

2

Husqvarna 532132753

Control, Throttle

$

$

Not available

3

Engine, Kohler, Model No. CV12.5S

$

$

Not available

5

Husqvarna 810040500

Washer, Lock, Heavy Helical Spring 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

9

Husqvarna 813280328

Nipple, Pipe 3/8 N.P.T. x 3-1/2

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 813200300

Elbow, Standard 90°.
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

11

Husqvarna 874760508

Bolt, Hex Head, Fin. 5/16-18 x 1/2

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532138149

Muffler

$

$

Not available

13

Plug, Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

15

Husqvarna 532137180

Arrester, Spark

Note: (Optional Equipment)

$182.99

$

In Stock, only 1 left!

0

17

Husqvarna 532125398

Bolt, Hex Head
(Superseded to 740108025)

$

$

Not available

18

Husqvarna 532126636

Keeper, Ground Drive Belt

$8.99

$

Usually ships in 3-10 days

0
