LR 122 (954140105-B) - Husqvarna Lawn Tractor (2000-01) Seat Parts Diagram

Lawn Tractor

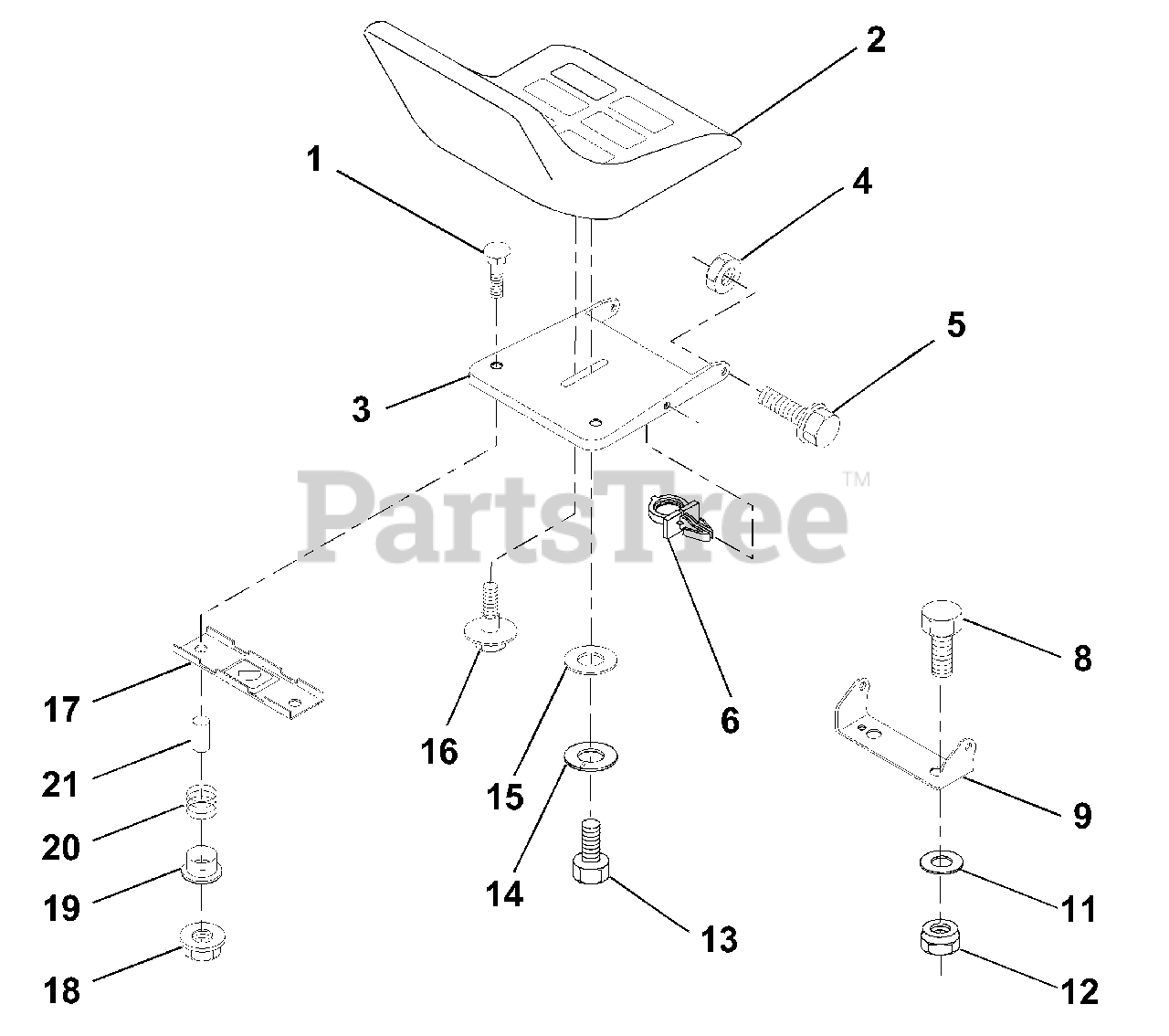

Seat Parts Diagram

  • Title

1

Husqvarna 532171040

Bolt, Carriage 1/4-20 x 1-1/2
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532140838

Seat
(Superseded to 532401042)

$206.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532155925

Pan, Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873800500

Locknut, Hex w/Ins 5/16-18

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532153236

Bolt, Shoulder 5/16-18 UNC
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

6

Husqvarna 532145006

Clip, Push-in

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 874760616

Bolt, Fin Hex 3/8-16 UNC x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532140551

Bracket, Pivot Seat

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 819133210

Washer 12/32 x 2 x 10 Ga.
(Superseded to 532413524)

$

$

Not available

12

Husqvarna 873800600

Nut, Lock Hex w/Wsh 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874780814

Bolt Hex 1/2-13 x 7/8
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 810040800

Washer Lock Hvy. Hlicl Spring 1/2

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819171912

Washer, 17/32 x 1-3/16 x 12 Ga.

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532127018

Bolt, Shoulder

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532121246

Bracket, Switch, Mounting
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532171041

Nut, Hex Large Flange Lock
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

19

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532121250

Spring, Compression

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532134300

Spacer, Split 28 Id. x .88 Lg.

$7.49

$

Usually ships in 3-10 days

0
