LR 122 (954140105-B) - Husqvarna Lawn Tractor (2000-01) Hood Parts Diagram

Lawn Tractor

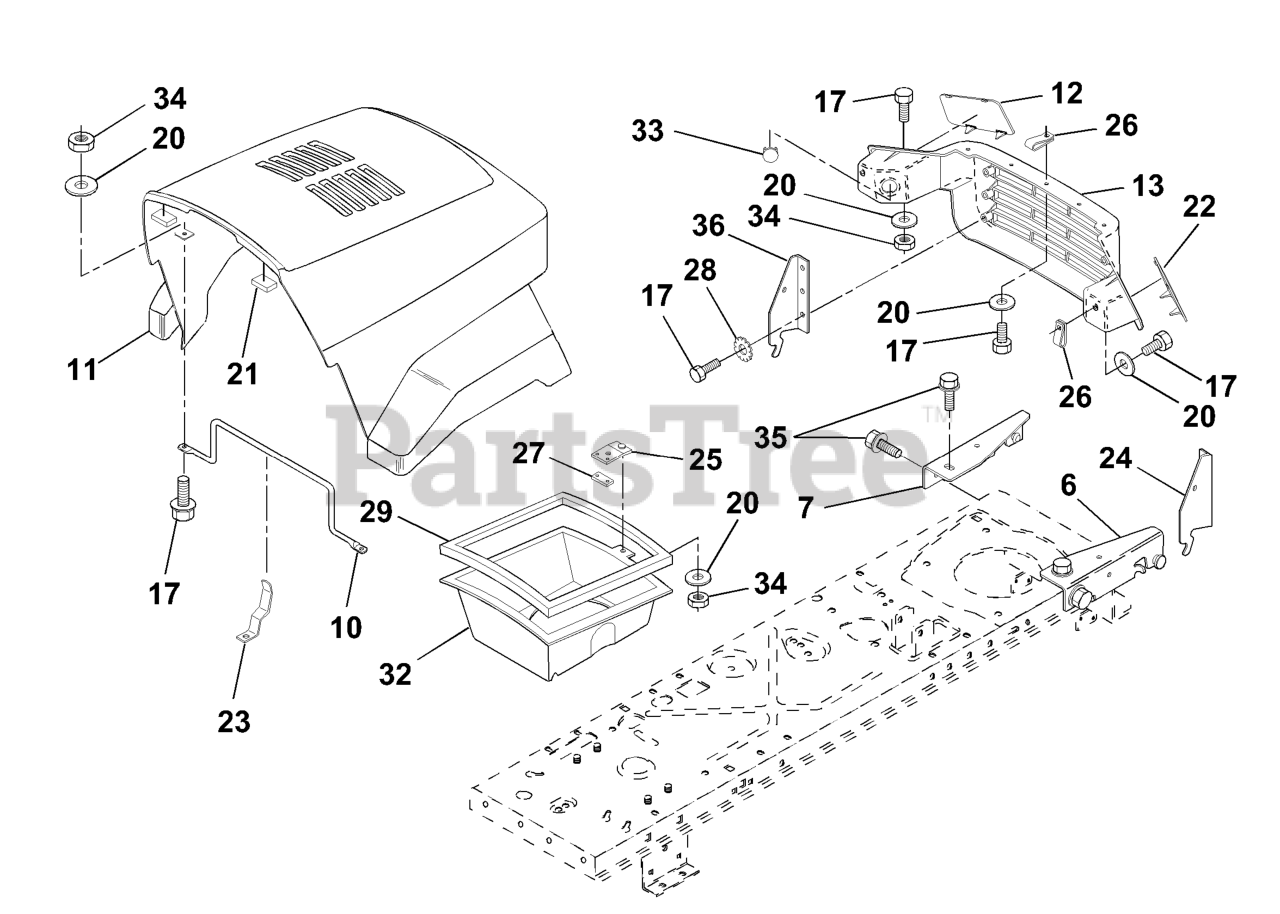

Hood Parts Diagram

  • Title

6

Husqvarna 532140051

Bracket Asm. Pivot Hood RH

$

$

Not available

7

Husqvarna 532140050

Bracket Asm. Pivot Hood LH

$

$

Not available

10

Husqvarna 532130850

Brace Hood

$

$

Not available

11

Husqvarna 532165791

Hood
(Superseded to 532140142)

$

$

Not available

12

Husqvarna 532165794

Lens LH
(Superseded to 532130986)

$12.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532165792

Grille
(Superseded to 532404673)

$546.99

$

Usually ships in 3-10 days

0

17

Husqvarna 874780410

Bolt Fin Hex 1/4-20 x 5/8
(Superseded to 539990072)

$3.99

$

In Stock, only 1 left!

0

20

Husqvarna 819091016

Washer, Flat 1/4

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532126938

Bumper Hood

$

$

Not available

22

Husqvarna 532165793

Lens RH
(Superseded to 532130985)

$

$

Not available

23

Husqvarna 532139969

Latch Hood

$

$

Not available

24

Husqvarna 532142873

Bracket Pivot Hood RH

$3.49

$

In Stock, only 2 left!

0

25

Husqvarna 532131028

Clip Tinnerman

$

$

Not available

26

Husqvarna 532052921

Clip Tinnerman

$

$

Not available

27

Husqvarna 532131037

Clip Asm Duct

$

$

Not available

28

Husqvarna 811050400

Washer Lock Ext. Tooth
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

29

Husqvarna 532120537

Strip Foam

$

$

Not available

32

Husqvarna 532123840

Duct, Air Hood

$

$

Not available

33

Husqvarna 532131319

Plug Socket Light

$

$

Not available

34

Husqvarna 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

35

Husqvarna 817490512

Screw Thdrol 5/16-28 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532128445

Bracket Pivot Hood LH

$

$

Not available
