LR 122 (954140014-A) - Husqvarna Lawn Tractor (1998-08) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

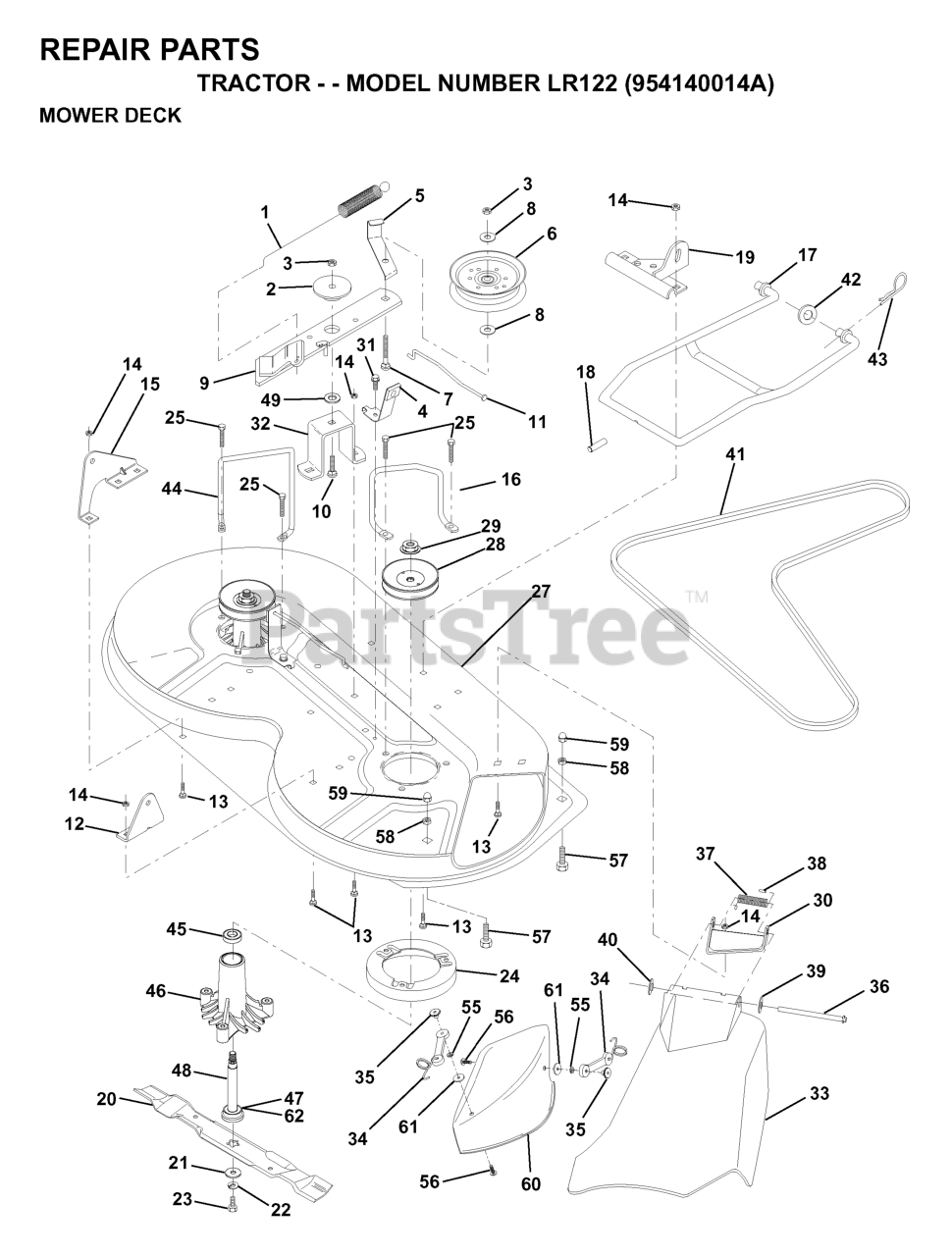

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
58

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532140102

MULCH.COVER.36"

$

$

Not available

57

Husqvarna 874930516

BOLT GT
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 819171616

WASHER
(Superseded to 734117801)

$

$

Not available

21

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

25

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532156866

DECK ASM SVCX 36" HI PERF

$728.99

$

Usually ships in 3-10 days

0

31

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 11

0

38

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532127356

BRKT LIFT REAR

$

$

Not available

30

Husqvarna 532136631

BRACKET ASM DEFLECTOR

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532130840

BRAKE ASSEMBLY

$12.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532127744

IDLER ARM ASSY
(Superseded to 532140092)

$

$

Not available

37

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0

48

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532140064

SPRING-MOWER CLUTCH

$24.99

$

In Stock, only 1 left!

0

18

Husqvarna 532128511

PIN GROOVE

$

$

Not available

34

532160793

LATCH ASSY

$

$

Not available

2

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

15

Husqvarna 532127357

BRKT LIFT REAR LH

$

$

Not available

62

Husqvarna 532153390

WASHER FELT

$6.49

$

In Stock, only 3 left!

0

- -

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$56.99

$

In Stock, Qty 5

0

59

$2.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532128508

MOWER LINK STABILIZER

$

$

Not available

11

$30.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532121980

HINGE ROD
(Superseded to 583383801)

$

$

Not available

35

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532156600

MOWER HOUSING
(Superseded to 532174082)

$

$

Not available

13

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532121316

PULLEY.IDLER.FLAT.MOWER.BLK.PT

$51.99

$

In Stock, only 4 left!

0

46

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

45

$13.99

$

In Stock, Qty 14

0

20

Husqvarna 532140101

BLADE.36".MULCH

$27.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532153298

BELT KEEPER

$14.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532131560

DEFLECTOR
(Superseded to 532175029)

$30.99

$

In Stock, only 1 left!

0

$39.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$11.99

$

In Stock, Qty 20+

0

19

Husqvarna 532127380

BRKT LINK STABILIIZER

$

$

Not available

8

Husqvarna 819131410

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

5

Husqvarna 532131251

IDLER BELT GUIDE

$

$

Not available

14

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

44

$27.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

32

Husqvarna 532122051

SUPT,IDLER ARM

$5.99

$

Usually ships in 3-10 days

0

56

Husqvarna 871161010

SCREW
(Superseded to 871081010)

$3.99

$

In Stock, Qty 17

0
