LR 121 (954140001-B) - Husqvarna Lawn Tractor (1998-02) Hood Parts Diagram

Lawn Tractor

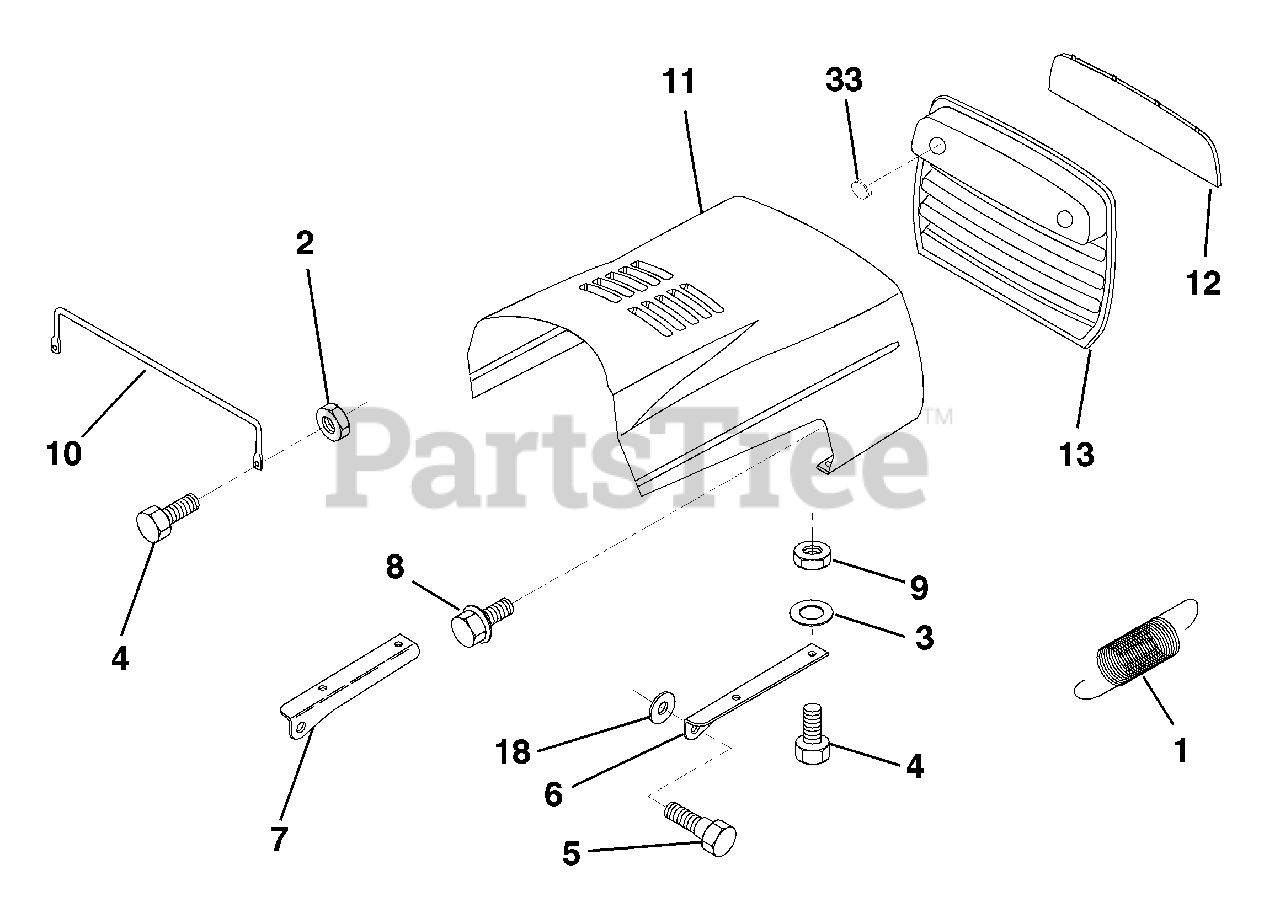

Hood Parts Diagram

  • Title

1

Husqvarna 532124657

Extension, Spring

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 873510400

Nut, Hex, Keps 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

3

Husqvarna 819091416

Washer, 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 874780412

Bolt, Hex Fin 1/4-20 x 3/4 Gr. 5
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532139888

Bolt , Shoulder

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 532122549

Bracket, Hood R. H.

$

$

Not available

7

Husqvarna 532122548

Bracket, Hood L.H.

$2.99

$

Usually ships in 3-10 days

0

8

Husqvarna 817521312

Screw Sltd. Hex Hd W/PL Washer

$

$

Not available

9

Husqvarna 873800400

Nut Lock W/Insert 1/4-20 UNC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 532123693

Brace, Hood

$

$

Not available

11

Husqvarna 532140463

Hood
(Superseded to 532132918)

$

$

Not available

12

Husqvarna 532122035

Lens Clear Bar

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532142325

Grill

$

$

Not available

18

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 532131319

Plug socket light

$

$

Not available
