LR 121 (954140001-B) - Husqvarna Lawn Tractor (1997-12) Mower Deck Parts Diagram

Lawn Tractor

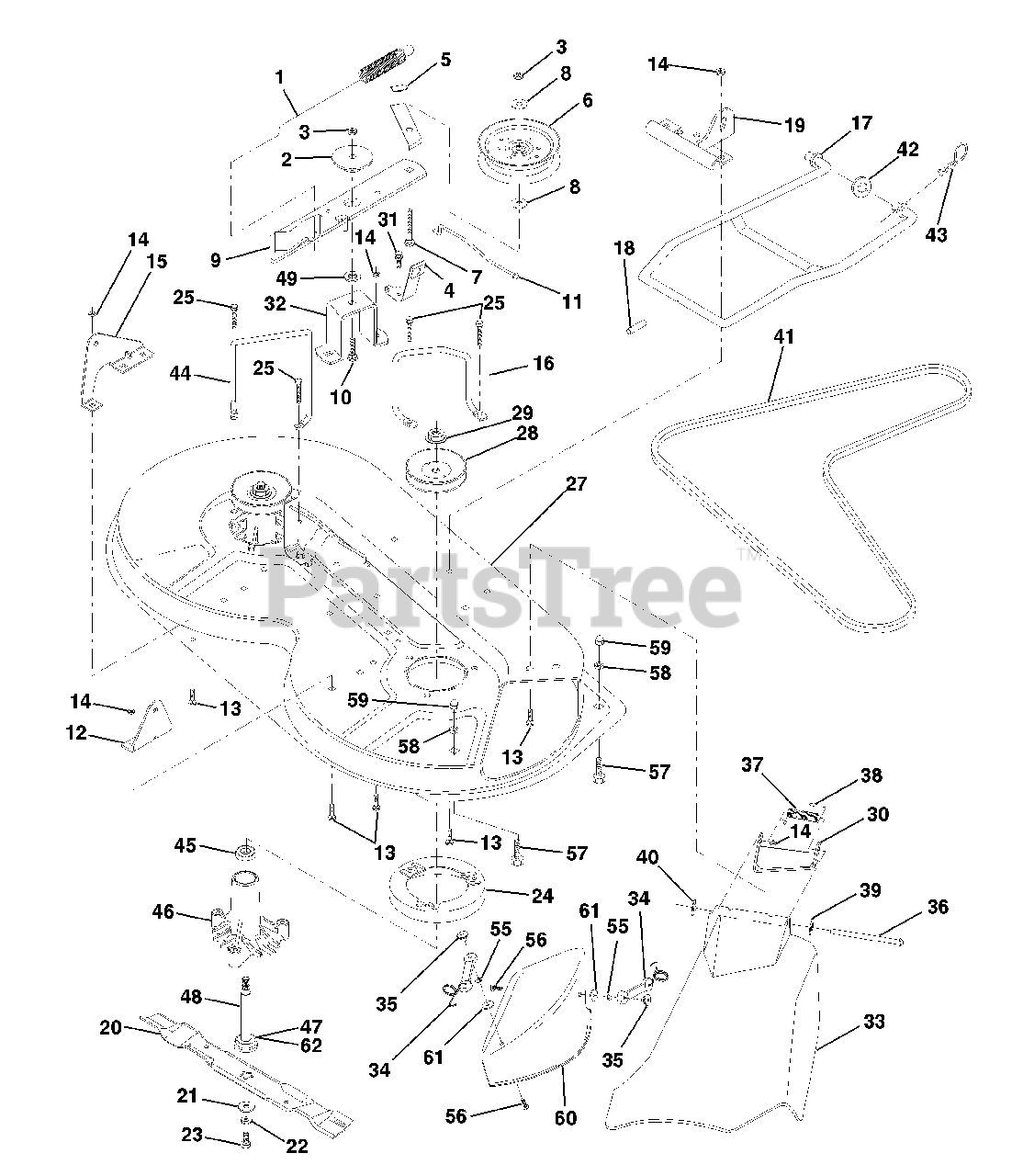

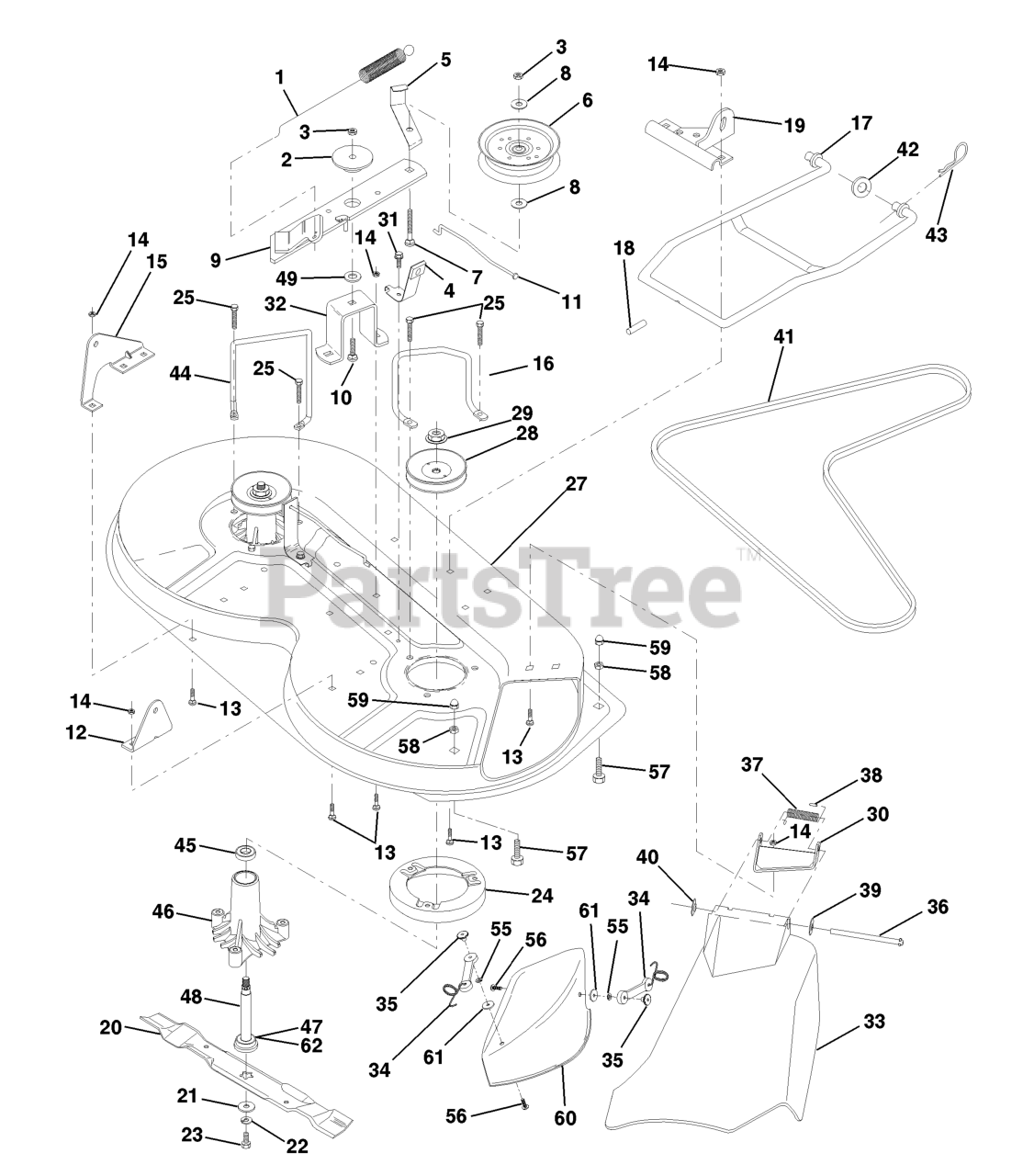

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532140064

Spring, Mower Clutch

$24.99

$

In Stock, only 1 left!

0

2

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

3

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532130840

Brake Asm.

$12.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532131251

Guide, Belt Idler

$

$

Not available

6

Husqvarna 532121316

Pulley, Flat Idler

$51.99

$

In Stock, only 4 left!

0

7

Husqvarna 872110616

Bolt, Carr. 3/8-16 x 1-3/4 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 819131410

Washer 13/21 x 7/8 x 10 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532127744

Arm Asm., Idler Mower
(Superseded to 532140092)

$

$

Not available

10

Husqvarna 872140610

Bolt, Carriage 3/8-16 x 1-1/4
(Superseded to 583611601)

$

$

Not available

11

Husqvarna 532130841

Rod, Brake

$30.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532127356

Bracket, Lift R. H. Rear

$

$

Not available

13

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532127357

Bracket, Lift L. H. Rear

$

$

Not available

16

Husqvarna 532153298

Keeper, R. H.

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532128508

Link, Asm. Mower Stabilizer

$

$

Not available

18

Husqvarna 532128511

Pin, Drive

$

$

Not available

19

Husqvarna 532127380

Bracket, Asm. Front

$

$

Not available

20

Husqvarna 532140101

Blade Mulching

$27.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532140296

Washer, Hard

$6.99

$

In Stock, only 2 left!

0

22

Husqvarna 810030600

Washer, Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

23

Husqvarna 532850857

Bolt 3/8-24 x 1-1/4 Gr. 8

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 532140329

Stripper
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532157722

Screw Thdrol Wsh Hd
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532156600

Deck Assembly
(Superseded to 532174082)

$

$

Not available

28

Husqvarna 532153531

Pulley, Mandrel
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137266

Nut, Flangelock 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

30

Husqvarna 532136631

Bracket, Asm. Deflector

$

$

Not available

31

Husqvarna 817490508

Screw, Hex Wsh. Thdrol. 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532122051

Arm, Support Idler Mower

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532131560

Deflector
(Superseded to 532175029)

$30.99

$

In Stock, only 1 left!

0

34

532160793

Latch Asm, Bagger/Mulch

$

$

Not available

35

Husqvarna 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532121980

Rod, Hinge
(Superseded to 583383801)

$

$

Not available

37

Husqvarna 532123713

Spring, Torsion Deflector

$7.99

$

In Stock, only 1 left!

0

38

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532110452

Pushnut

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532131264

V-Belt

$39.99

$

Usually ships in 3-10 days

0

42

Husqvarna 819171616

Washer 11/32 x 5/8 16 Ga.
(Superseded to 734117801)

$

$

Not available

43

Husqvarna 532124660

Retainer, Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 532140608

Keeper, L. H.

$27.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532110485

Bearing

$13.99

$

In Stock, Qty 11

0

46

Husqvarna 532128774

Housing Mandrel Vented

$34.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532129895

Bearing

$11.99

$

In Stock, Qty 20+

0

48

Husqvarna 532137645

Shaft, Mandrel
(Superseded to 532137646)

Note: (Includes Key # 47)

$34.99

$

In Stock, only 3 left!

0

49

Husqvarna 532133943

Washer, Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 810071000

Washer, Lock

$4.99

$

In Stock, Qty 11

0

56

Husqvarna 871161010

Screw
(Superseded to 871081010)

$3.99

$

In Stock, Qty 17

0

57

Husqvarna 874930516

Bolt, Fin Hex 5/16-18 x 1
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532063124

Nut, Nylon Insert
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532133841

Nut, Acorn Hex 5/16 x 18

$2.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532140102

Cover, Mulching

$

$

Not available

61

Husqvarna 819061216

Washer

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532153390

Washer Felt

$6.49

$

In Stock, only 3 left!

0

Husqvarna 532130794

Mandrel Asm.

Note: (Includes Key No.s 22-23, 26, 29 and 45-48)

$56.99

$

In Stock, Qty 5

0

Husqvarna 532156866

Deck, Mower Complete

Note: (Std. Deck -Order separately mulcher plate components key nos. 50-58)

$728.99

$

Usually ships in 3-10 days

0
