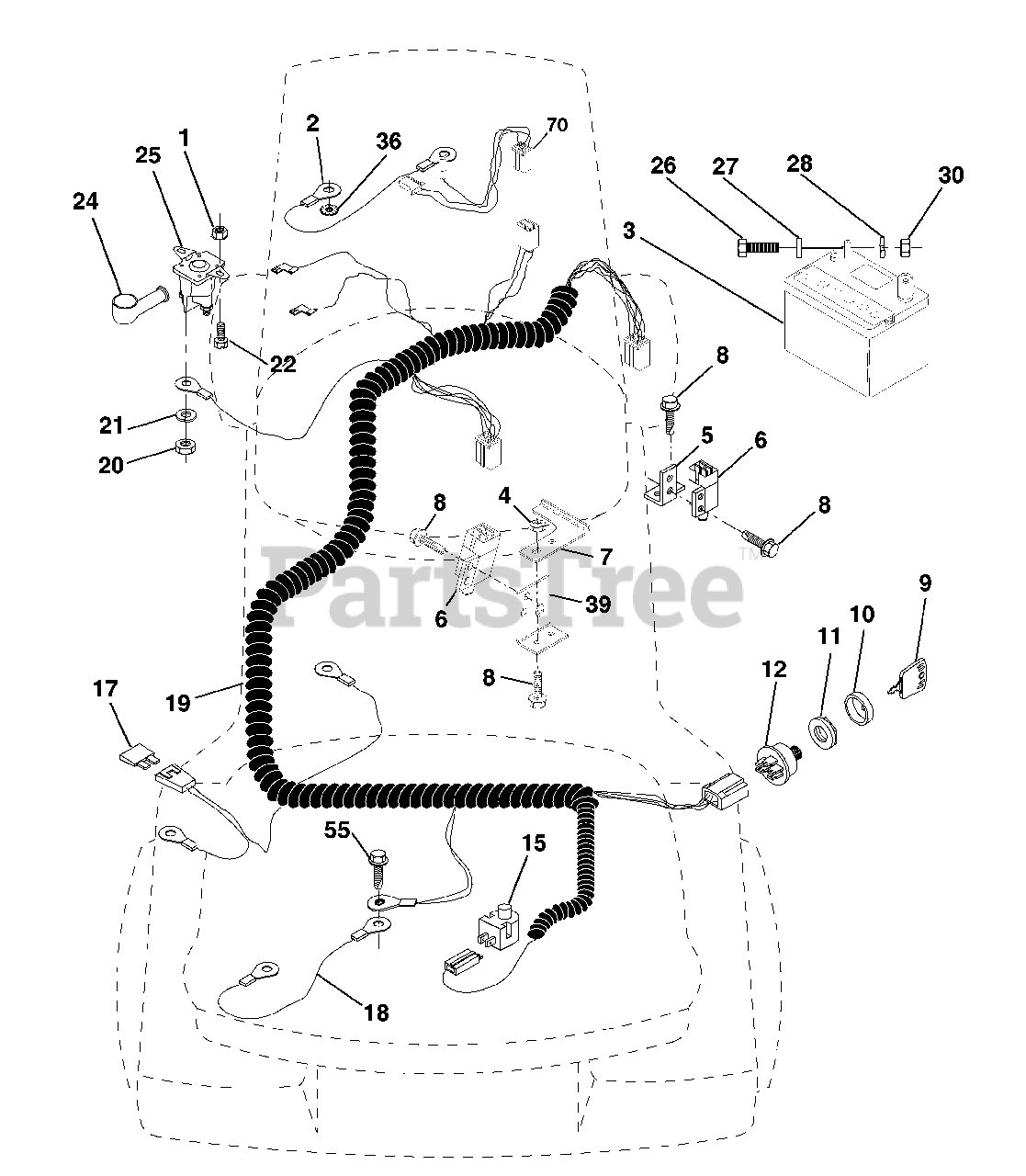

LR 121 (954140001-B) - Husqvarna Lawn Tractor (1997-12) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

Husqvarna 873640400

Nut, Hex Keps 1/4-20

$

$

Not available

2

Husqvarna 532108423

Assembly, Cable

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532144924

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

4

Husqvarna 532069180

Nut, Lock #10-24 UNC

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532108236

Bracket, Switch

$2.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532109553

Switch, Interlock (4-terminal)
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532146374

Keeper Actuator

$

$

Not available

8

Husqvarna 817021008

Screw, Hex Hd. Tap #10-24 x 1/2

$4.99

$

In Stock, Qty 14

0

9

Husqvarna 532140402

Key, Steel Delta
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

10

Husqvarna 532141226

Cover, Key Ignition

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532140400

Nut, Ignition
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532144921

Switch, Ignition
(Superseded to 532158913)

$66.99

$

In Stock, only 1 left!

0

15

Husqvarna 532121305

Switch, Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532128353

Assembly, Cable

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532146063

Harness, Ignition

$

$

Not available

20

Husqvarna 873350400

Nut, Hex Jam 1/4-20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 871110408

Bolt, Fin. Hex 1/4-20 UNC x 1/2 Gr. 5
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

25

Husqvarna 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

26

Husqvarna 874760412

Bolt, Hex Hd. 1/4-20 UNC x 3/4

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 819091016

Washer 9/32 x 5/8 x 16

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

30

Husqvarna 873220400

Nut, Fin. Hex 1/4-20 UNC
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

36

Husqvarna 811150400

Washer, Lock Inter. Tooth 1/4

$2.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532141735

Bracket, Switch Clutch

$2.99

$

Usually ships in 3-10 days

0

55

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532140413

Harness, Engine

$

$

Not available
