LR 121 (954140001-A) - Husqvarna Lawn Tractor (1997-01) FRONT AXLE Parts Diagram

Lawn Tractor

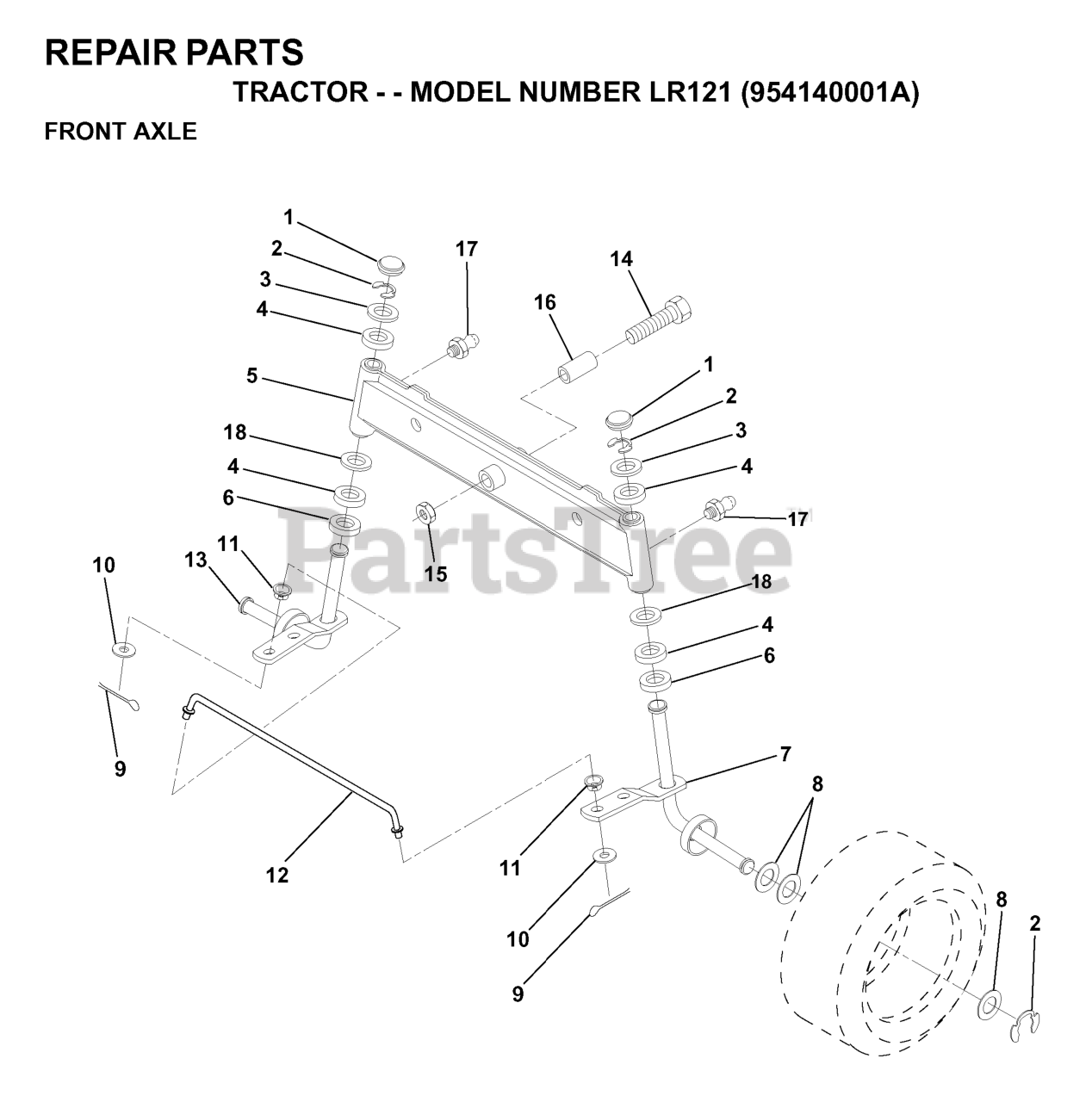

FRONT AXLE Parts Diagram

  • Title

8

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532137062

SPINDLE ASSY RH NLA

$

$

Not available

13

Husqvarna 532137061

SPINDLE ASSY LH

$

$

Not available

5

Husqvarna 532142033

AXLE ASSY

$

$

Not available

16

Husqvarna 532110438

BEARING
(Superseded to 532155134)

$

$

Not available

4

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

17

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

14

Husqvarna 874011056

Bolt, Hex Head 5/8-11 x 3-1/2

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532130465

TIE ROD
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

3

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

2

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532126847

BUSHING.DRAGLINK (2 2)

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 8

0

9

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna 819272016

WASHER

$6.49

$

In Stock, only 2 left!

0
