LR 121 (954140001-A) - Husqvarna Lawn Tractor (1997-01) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

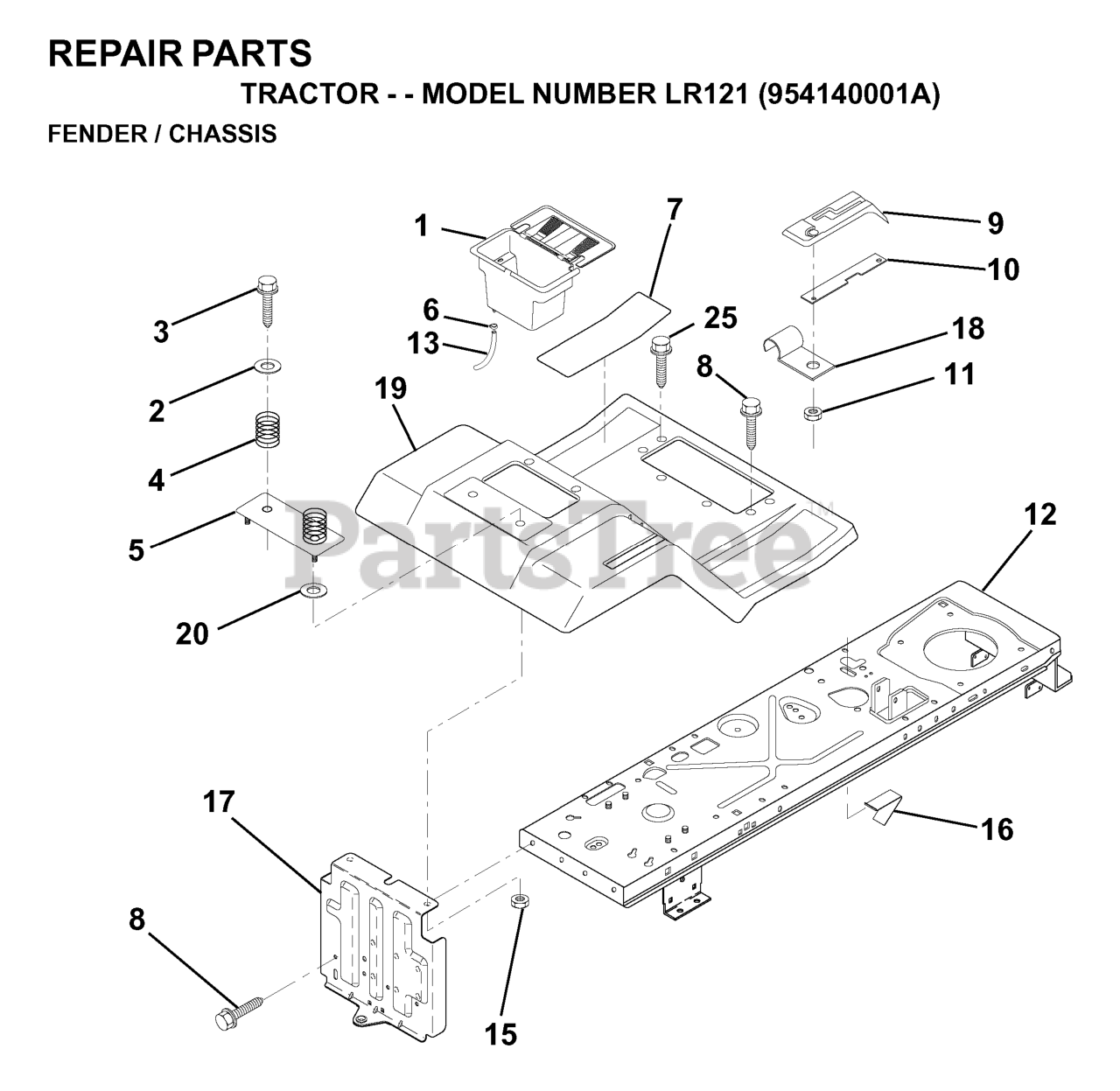

CHASSIS & ENCLOSURES Parts Diagram

  • Title

8

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532140782

DRAWBAR

$

$

Not available

16

Husqvarna 532141736

SWITCH ACTUATOR
(Superseded to 532146613)

$

$

Not available

13

Husqvarna 532109238

TUBE BATTERY DRAIN

$

$

Not available

12

Husqvarna 532145190

FRAME

$

$

Not available

2

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532141393

FENDER/FOOTREST

$

$

Not available

18

Husqvarna 532126470

CLIP,INSULATOR

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532126996

CONSOLE SHT CONTR

$

$

Not available

20

Husqvarna 819091413

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532139783

BAR, SHIFT LOCK

$

$

Not available

15

Husqvarna 873640400

Nut, Keps Blk Hex 1/4-20 UNC

$

$

Not available

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 532124144

PAD FOOTREST

$

$

Not available

1

Husqvarna 532156417

CASE BATTERY MECH HINGE
(Superseded to 532404349)

$

$

Not available

11

Husqvarna 532124346

NUT.PUSH.3/16

$7.99

$

In Stock, only 1 left!

0

5

Husqvarna 532125142

PLATE ASM BATTERY
(Superseded to 532127115)

$

$

Not available

25

Husqvarna 817190516

Screw Hex Wsh Thdroll 5/16-18 x 1

$

$

Not available

4

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0
