LR 121 (954140001-A) - Husqvarna Lawn Tractor (1996-08) Engine Parts Diagram

Lawn Tractor

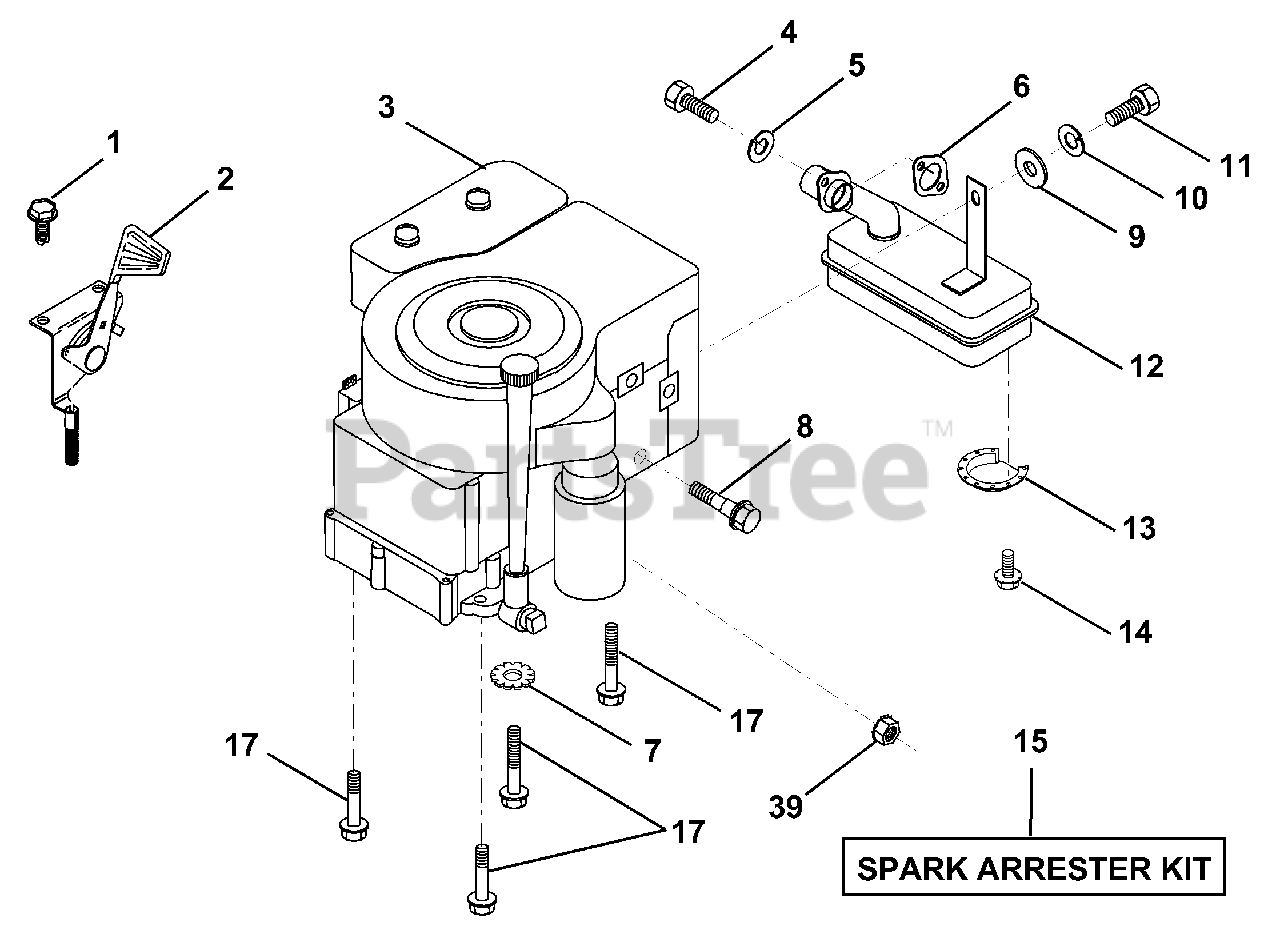

Engine Parts Diagram

  • Title

1

Husqvarna 817060408

Screw, Hex Thd. Cut 1/4-20 x 1/2

$5.99

$

In Stock, only 2 left!

0

2

Husqvarna 532132752

Control, Throttle

$

$

Not available

3

Engine, Briggs and Stratton Model No. 285707

$

$

Not available

4

Husqvarna 871070512

Screw, Hex, Cap 5/16-18 x 3/4
(Superseded to 532192334)

$

$

Not available

5

Husqvarna 810040500

Washer, Lock Hvy Hcl Spring 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

6

Husqvarna 532272293

Gasket, Exhaust

$12.99

$

Usually ships in 3-10 days

0

7

Husqvarna 811050600

Washer Lock Ext. Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532121094

Bolt, Shoulder 5/16

$2.99

$

Usually ships in 3-10 days

0

9

Husqvarna 819101216

Washer 5/16 x 3/4 x 16
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 810040400

Washer, Lock Hvy Hlcl Spring 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

11

Bolt, Hex Fin.

Note: (Order From Eng. Mfg.)

$

$

Not available

12

Husqvarna 532137437

Muffler

$242.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532101326

Deflector, Muffler

$

$

Not available

14

Husqvarna 817030808

Screw, Spiderlock, Hex Hd 8 x 1/2
(Superseded to 817030814)

$

$

Not available

15

Husqvarna 532137180

Arrester, Spark

Note: (Optional equipment)

$182.99

$

In Stock, only 1 left!

0

17

Husqvarna 817490624

Screw, Hex Washer Head, Thdrol. 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532128861

Nut, Flange 1/4-20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0
