LR 120 (954000602-A) - Husqvarna Lawn Tractor (1993-10) Engine Parts Diagram

Lawn Tractor

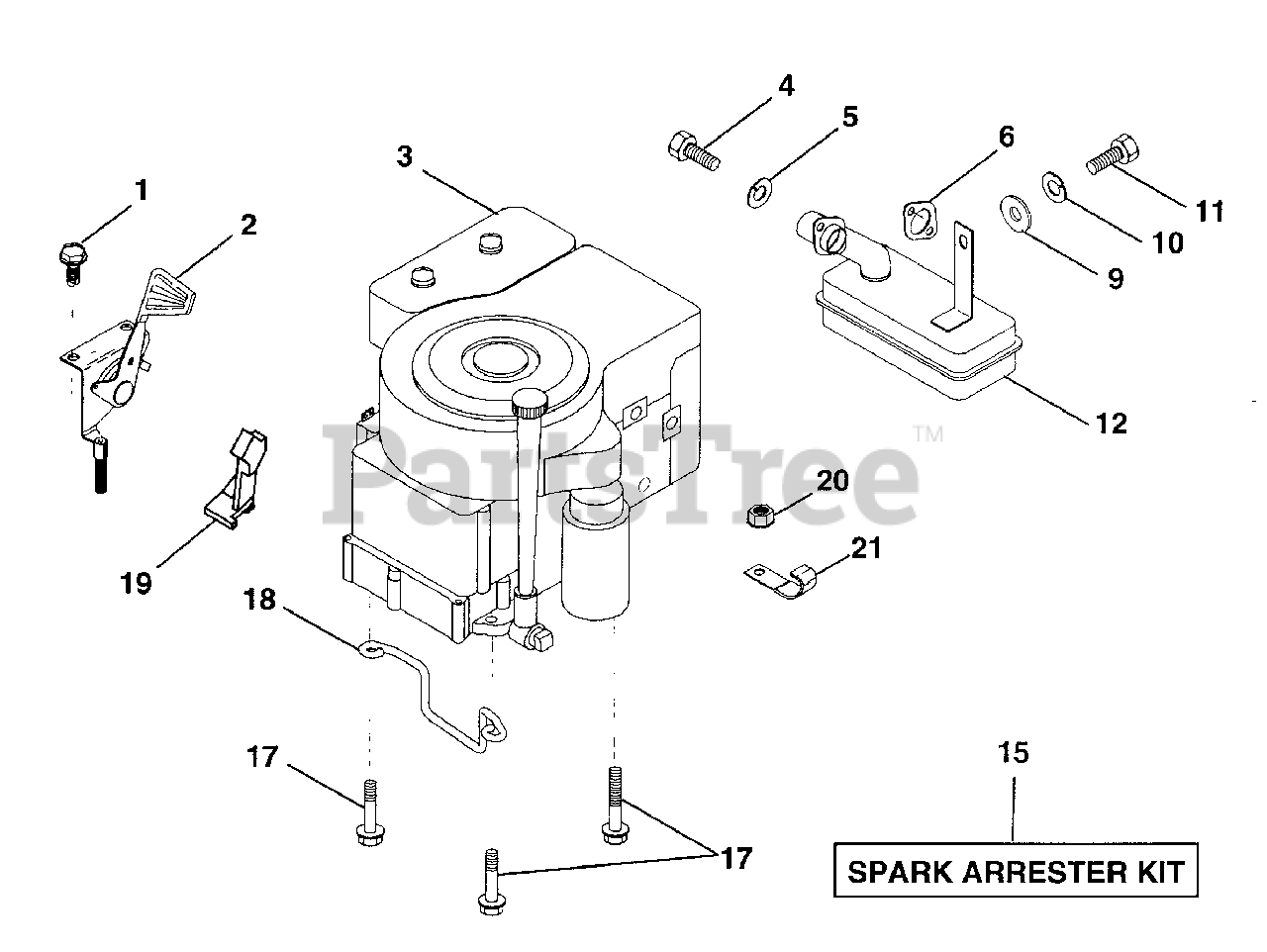

Engine Parts Diagram

  • Title

1

Husqvarna 817060408

Screw, Hex Thd. Cut 1/4-20 x 1/2

$5.99

$

In Stock, only 2 left!

0

2

Husqvarna 532133025

Control, Throttle

$30.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532131951

Engine, Briggs and Stratton Model No. 282707

$

$

Currently unavailable

4

Husqvarna 871070512

Screw, Hex, Cap 5/16-18 x 3/4
(Superseded to 532192334)

$

$

Not available

5

Husqvarna 810040500

Washer, Lock Heavy Helical Spring 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

6

Husqvarna 532125593

Gasket, Exhaust
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

9

Husqvarna 819101216

Washer 5/16 x 3/4 x 16
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 810040400

Washer, Lock Hvy Hlcl Spring 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

11

Bolt, Hex Fin.

Note: (Order From Eng. Mfg.)

$

$

Not available

12

Husqvarna 532137437

Muffler

$242.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532137180

Arrester, Spark

Note: (Optional equipment)

$182.99

$

In Stock, only 1 left!

0

17

Husqvarna 817490624

Screw, Hex Washer Head, Thdrol. 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532126636

Keeper, Ground Drive Belt

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532127951

Stop, Throttle

$

$

Not available

20

Husqvarna 873510600

Screw Thdrol. 3/8-16

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532124996

Clip Line Fuel
(Superseded to 532002751)

$

$

Not available
