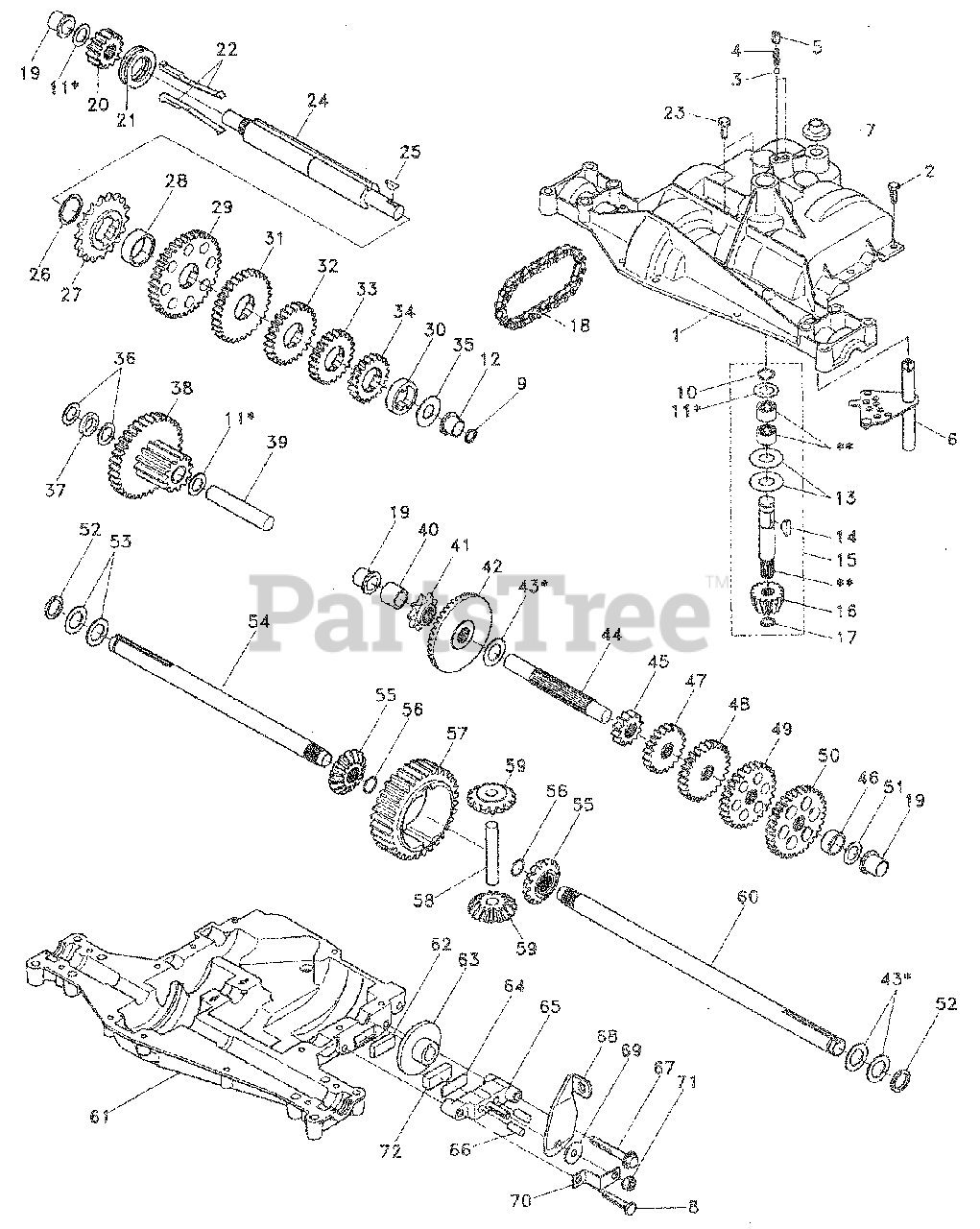

LR 120 (954000582-C) - Husqvarna Lawn Tractor (1993-01) Transmission Parts Diagram

Lawn Tractor

Transmission Parts Diagram

  • Title

1

Husqvarna 532138248

Housing, Upper

$

$

Not available

2

Husqvarna 532002274

Screw, Self-Tapping, Large 1/4-20 X.734

$

$

Not available

3

Husqvarna 532134400

Ball, Detent
(Superseded to 532068003)

$

$

Not available

4

Husqvarna 532105904

Spring, Detent

$

$

Not available

5

Husqvarna 532105905

Screw, Set

$

$

Not available

6

Husqvarna 532138235

Kit, Shifter Assembly
(Superseded to 532134788)

$

$

Not available

7

Husqvarna 532134399

Boot, Shifter

$

$

Not available

8

Husqvarna 532106596

Screw, Self-Tapping, Large 5/16-18 x 1.44

$

$

Not available

9

Husqvarna 532138241

Square Ring

$

$

Not available

10

Husqvarna 532002267

Ring, Retaining
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

11

Husqvarna 532134793

Assembly, Kit, Shim .625 Shaft

$

$

Not available

12

Husqvarna 532138240

Bearing, Flange

$

$

Not available

13

Husqvarna 532120415

Washer, Plain .632 x 1.38 x .046

$2.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532002257

Key, Woodruff, #9

$

$

Not available

15

Husqvarna 532138234

Assembly, Kit, Input Shaft
(Superseded to 532167148)

$

$

Not available

16

Husqvarna 532110078

Pinion, Bevel, 14 Teeth
(Superseded to 532167148)

$

$

Not available

17

Husqvarna 532105909

Ring, Retaining

$

$

Not available

18

Husqvarna 532105910

Chain, 24 Pitches

$

$

Not available

19

Husqvarna 532105911

Bearing, Flange

$

$

Not available

20

Husqvarna 532138242

Gear, Spur, 14 Teeth

$

$

Currently unavailable

21

Husqvarna 532138246

Collar, Clutch

$

$

Not available

22

Husqvarna 532138236

Assembly, Kit, Clutch Keys

$

$

Not available

23

Husqvarna 532134791

Screw, Self-Tapping, with Sealer

$

$

Not available

24

Husqvarna 532138243

Shaft, intermediate

$

$

Currently unavailable

25

Husqvarna 532002244

Key, Woodruff, #61

$

$

Not available

26

Husqvarna 532105916

Ring, Retaining

$2.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532120470

Sprocket, 18 Teeth

$

$

Not available

28

Husqvarna 532110070

Spacer

$

$

Not available

29

Husqvarna 532108977

Gear, Spur, 37 Teeth

$

$

Not available

30

Husqvarna 532134797

Spacer 1.133 x 1.50 x .375

$5.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532120405

Gear, Spur, 30 Teeth

$

$

Not available

32

Husqvarna 532108980

Gear, Spur, 25 Teeth

$

$

Not available

33

Husqvarna 532120406

Gear, Spur, 22 Teeth

$

$

Not available

34

Husqvarna 532134796

Gear, Spur, 19 Teeth

$87.69

$

Usually ships in 3-10 days

0

35

Husqvarna 532105925

Washer, Plain .640 x 1.37 x .061

$

$

Not available

36

Husqvarna 532002232

Washer, Plain .632 x 1.00 x .026

$

$

Not available

37

Husqvarna 532108978

Spacer .630 x 1.00 x .169

$

$

Not available

38

Husqvarna 532110079

Assembly, Gear, Combination of 12 Teeth and 35 Teeth

$

$

Not available

39

Husqvarna 532124639

Shaft, idler

$36.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532120472

Spacer .635 x .875 x .755

$

$

Not available

41

Husqvarna 532105928

Sprocket, 9 Teeth

$

$

Not available

42

Husqvarna 532110084

Gear, Bevel, 42 Teeth
(Superseded to 532167148)

$

$

Not available

43

Husqvarna 532134394

Assembly, Kit, Shim .750 Shaft

$

$

Not available

44

Husqvarna 532120473

Shaft, Drive

$

$

Not available

45

Husqvarna 532105933

Gear, Spur, 12 Teeth
(Superseded to 532108977)

$

$

Not available

46

Husqvarna 532105936

Spacer .781 x 1.00 x .375

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532120407

Gear, Spur, 20 Teeth

$

$

Not available

48

Husqvarna 532106589

Gear, Spur, 25 Teeth

$

$

Not available

49

Husqvarna 532120408

Gear, Spur, 28 Teeth

$

$

Not available

50

Husqvarna 523105937

Gear, Spur, 31 Teeth

$

$

Currently unavailable

51

Husqvarna 532002226

Washer, Plain .632 x 1.00 x .060

$

$

Not available

52

Husqvarna 532134401

Washer, Neoprene

$

$

Not available

53

Husqvarna 532002264

Washer, Plain .758 x 1.25 x .031

$

$

Not available

54

Husqvarna 532123907

Axle, L.H.

$

$

Not available

55

Husqvarna 532110081

Gear, Miter, 15 Teeth
(Superseded to 532169651)

$

$

Not available

56

Husqvarna 532105941

Ring, Retaining

$

$

Not available

57

Husqvarna 532110071

Gear, Spur, 32 Teeth

$151.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532120952

Shaft, Cross

$

$

Not available

59

Husqvarna 532110082

Gear, Miter, 15 Teeth
(Superseded to 532169651)

$

$

Not available

60

Husqvarna 532123908

Axle, R.H.

$

$

Not available

61

Husqvarna 532138247

Housing, Lower

$

$

Not available

62

Husqvarna 532120961

Puck, Friction

$

$

Not available

63

Husqvarna 532007294

Disc, Brake

$

$

Not available

64

Husqvarna 532108989

Spacer

$

$

Not available

65

Husqvarna 532120953

Jaw, Brake
(Superseded to 532164670)

$

$

Not available

66

Husqvarna 532120954

Pin, Dowel

$

$

Not available

67

Husqvarna 532134799

Screw, Self-Tapping, Large 5/16-18 x 2.25

$

$

Not available

68

Husqvarna 532138244

Lever, Actuating
(Superseded to 532108992)

$

$

Not available

69

Husqvarna 532108996

Washer, Plain .321 x 1.00 x .055

$

$

Not available

70

Husqvarna 532120956

Bracket, Anti-Rotation

$

$

Not available

71

Husqvarna 873810500

Locknut 5/16-24
(Superseded to 873610500)

$

$

Not available

72

Husqvarna 532120951

Puck, Friction

$

$

Not available

73

Husqvarna 532120416

Grease
(Superseded to 532126976)

$47.99

$

Usually ships in 3-10 days

0
