LR 120 (954000582-C) - Husqvarna Lawn Tractor (1993-01) Transaxle Parts Diagram

Lawn Tractor

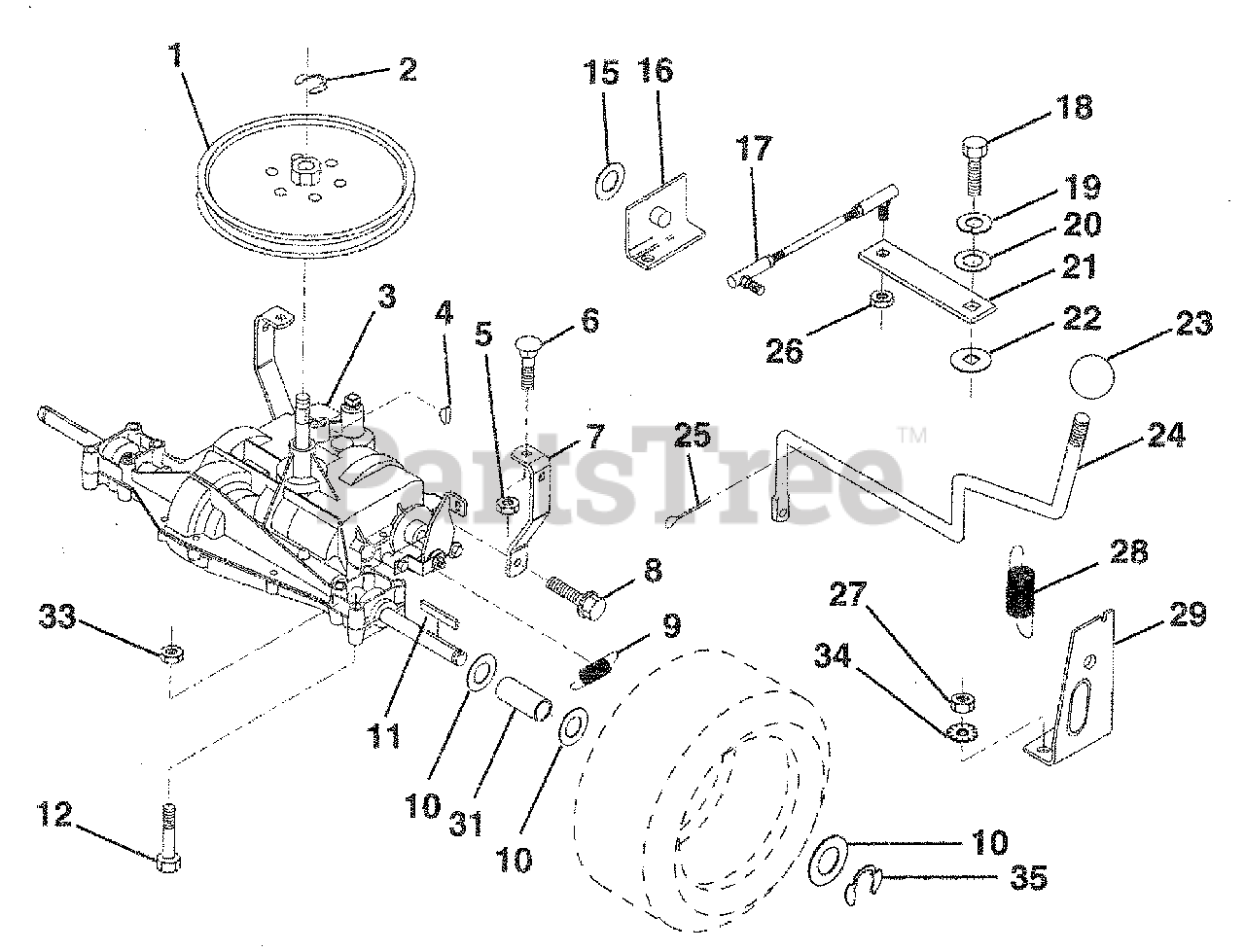

Transaxle Parts Diagram

  • Title

$45.99

$

Usually ships in 3-10 days

0

2

Husqvarna 812000028

Ring, Retainer

$7.49

$

In Stock, Qty 7

0

3

Husqvarna 532137365

Transaxle, 5 Speed, Dana Model #4360-50

$

$

Currently unavailable

4

Husqvarna 532125096

Key, Woodruff #9

$9.49

$

In Stock, only 1 left!

0

5

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 872140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532123378

Strap, Torque

$

$

Not available

8

Husqvarna 817490512

Screw Thdrol. 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532110422

Spring, Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

10

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 8747G0644

Bolt Hex 3/8-16 x 2-3/4

$

$

Currently unavailable

15

Husqvarna 819171616

Washer 17/32 x 1 x 16 Ga
(Superseded to 734117801)

$

$

Not available

16

Husqvarna 532124600

Support Handle Shift LH

$

$

Not available

17

Husqvarna 532123632

Link, Shift

$

$

Not available

18

Husqvarna 871040412

Bolt, Fin Hex 1/4-28 U NF x 3/4 Gr. 8

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532123484

Arm, Shift

$

$

Not available

22

Husqvarna 532105701

Washer, Shift Plate

$6.49

$

Usually ships in 3-10 days

0

$7.99

$

In Stock, only 1 left!

0

24

Husqvarna 532128215

Handle, Shift Rod

$

$

Not available

25

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873810500

Nut, Hex Nylon
(Superseded to 873610500)

$

$

Not available

27

Husqvarna 873510500

Nut, Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532128085

Extension, Spring

$

$

Not available

29

Husqvarna 532128084

Support Handle Shift RH

$

$

Not available

31

Husqvarna 532123409

Spacer, Split

$

$

Not available

33

Husqvarna 873680600

Nut, Crownlock 3/8 -16

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 811050500

Washer, Ext., Tooth, Lock 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 2 left!

0

$4.99

$

Usually ships in 3-10 days

0
