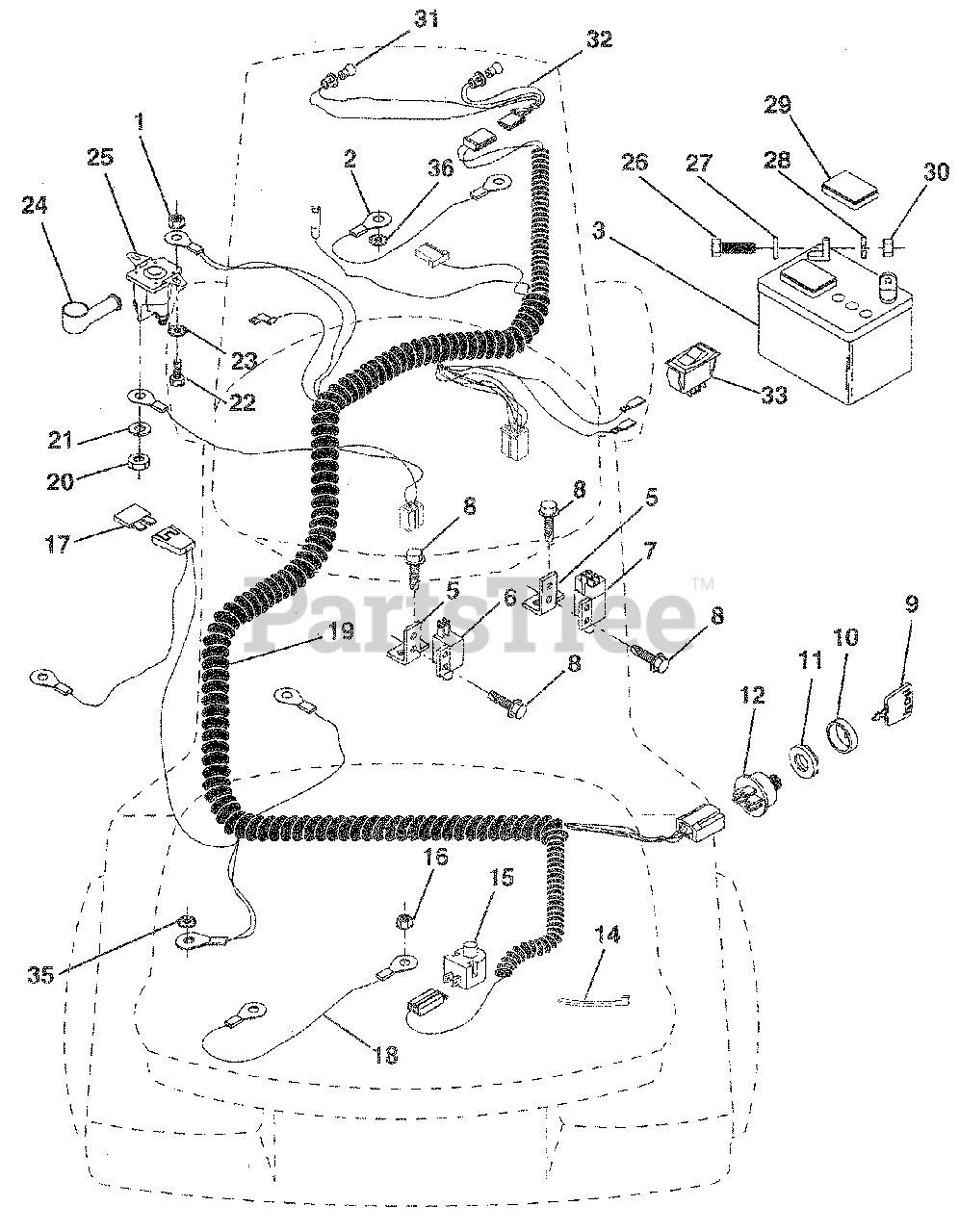

LR 120 (954000582-C) - Husqvarna Lawn Tractor (1993-01) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 873510400

Nut, Hex Keps 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

2

Husqvarna 532128353

Assembly, Cable

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532133909

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

5

Husqvarna 532108236

Bracket, Switch

$2.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532104445

Switch, Interlock

$17.99

$

In Stock, only 1 left!

0

7

Husqvarna 532109553

Switch, Interlock
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 817021008

Screw, Hex Hd. Tap #10-24 x 1/2

$4.99

$

In Stock, Qty 14

0

9

Husqvarna 532122147

Key, Molded

$

$

Not available

10

Husqvarna 532123620

Cover, Key Ignition
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532124211

Nut, Ignition

$5.99

$

In Stock, only 1 left!

0

12

Husqvarna 532125104

Switch, Ignition
(Superseded to 532365402)

$31.99

$

In Stock, only 4 left!

0

14

Husqvarna 532124756

Tie, Cable
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532121305

Switch, Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

16

Husqvarna 873510500

Nut, Hex, Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532108824

Fuse

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532108423

Assembly, Cable

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532132222

Harness, ignition

$

$

Not available

20

Husqvarna 873350400

Nut, Hex Jam 1/4-20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 874780408

Bolt, Fin. Hex
(Superseded to 539990071)

Note: 1/4-20 UNC x 1/2 Gr. 5

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 811050400

Washer, Lock Ext. Tooth 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

24

Husqvarna 532131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

25

Husqvarna 532138406

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

26

Husqvarna 874760412

Bolt, Hex Hd. 1/4-20 UNC x 3/4

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 819091016

Washer 9/32 x 5/8 x 16

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

29

Husqvarna 532121264

Cap, Battery

$

$

Not available

30

Husqvarna 873220400

Nut, Fin. Hex 1/4 - 20 UNC
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

31

Husqvarna 532004152

Bulb, Light

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532131078

Socket, Light Harness
(Superseded to 532142881)

$

$

Not available

33

Husqvarna 532110712

Switch, Light

$9.49

$

In Stock, only 4 left!

0

35

Husqvarna 811150400

Lockwasher Int. Tooth 1/4

$2.99

$

Usually ships in 3-10 days

0
