LR 120 (954000412-B) - Husqvarna Lawn Tractor (1992-10) Steering Wheel Parts Diagram

Lawn Tractor

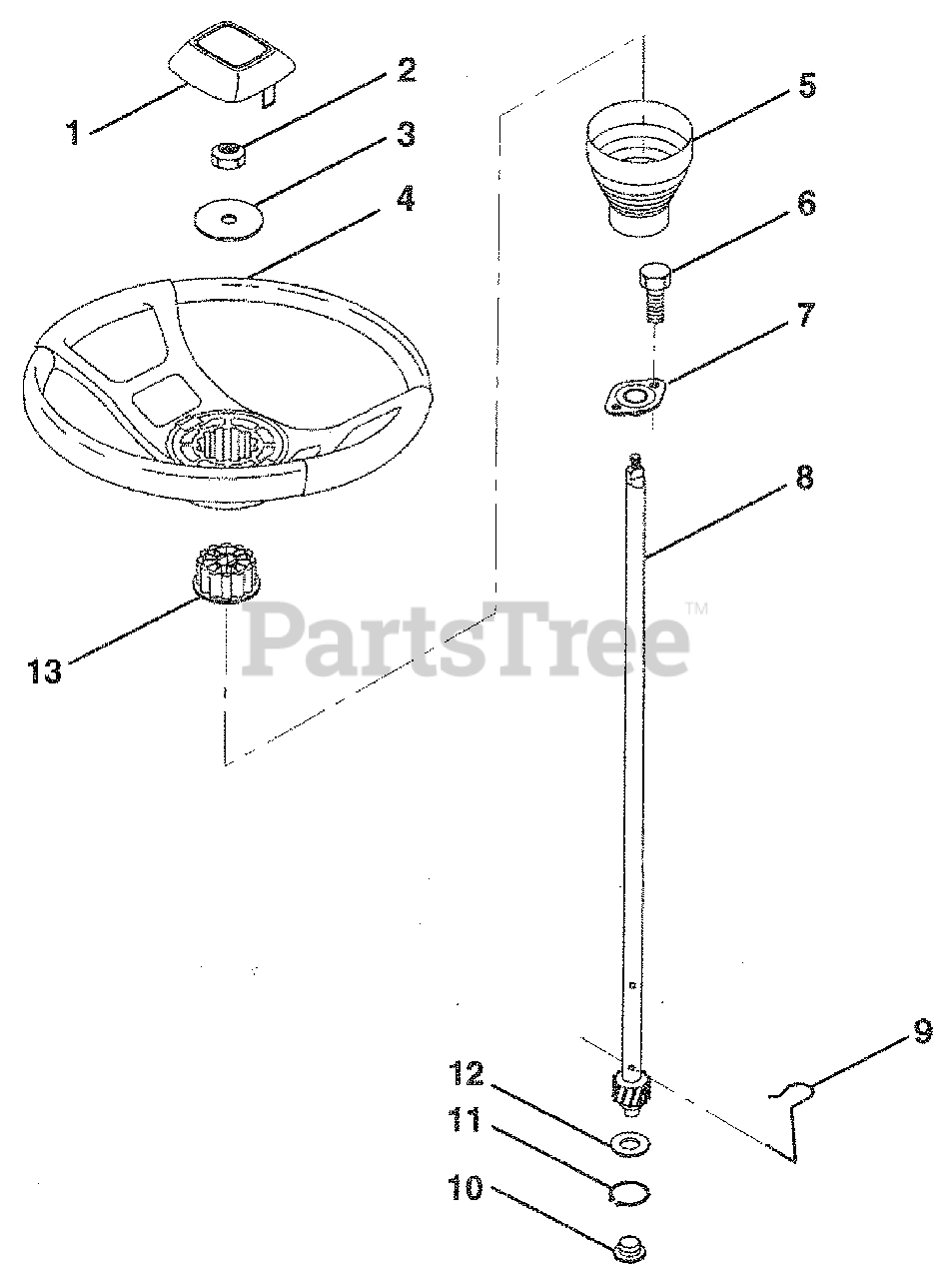

Steering Wheel Parts Diagram

  • Title
1

Husqvarna 532124416

Insert, Wheel, Steering

$

$

Not available

2

Husqvarna 532124701

Nut, Lock 3/8-24 UNF
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 819133808

Washer 12/32 x 2-3/8 x 8 Ga.
(Superseded to 819133812)

$

$

Not available

4

Husqvarna 532124415

Wheel, Steering

$

$

Not available

5

Husqvarna 532127396

Sleeve, Steering

$

$

Not available

6

Husqvarna 817431008

Screw, Hex #10-16x1/2 TY-B
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532102803

Bushing, Steering
(Superseded to 532155107)

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532123651

Shaft Steering
(Superseded to 532148966)

$

$

Not available

9

Husqvarna 532124210

Clip, Steering

$

$

Not available

10

Husqvarna 532123438

Bushing, Lower, Steering

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 812000045

Ring, Retaining

$7.49

$

In Stock, only 4 left!

0

12

Husqvarna 819211616

Washer 21/32 x 1 x16Ga.

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532104820

Adaptor, Wheel, Steering

$17.99

$

Usually ships in 3-10 days

0
