LR 120 (954000412-B) - Husqvarna Lawn Tractor (1992-10) Ground Drive Parts Diagram

Lawn Tractor

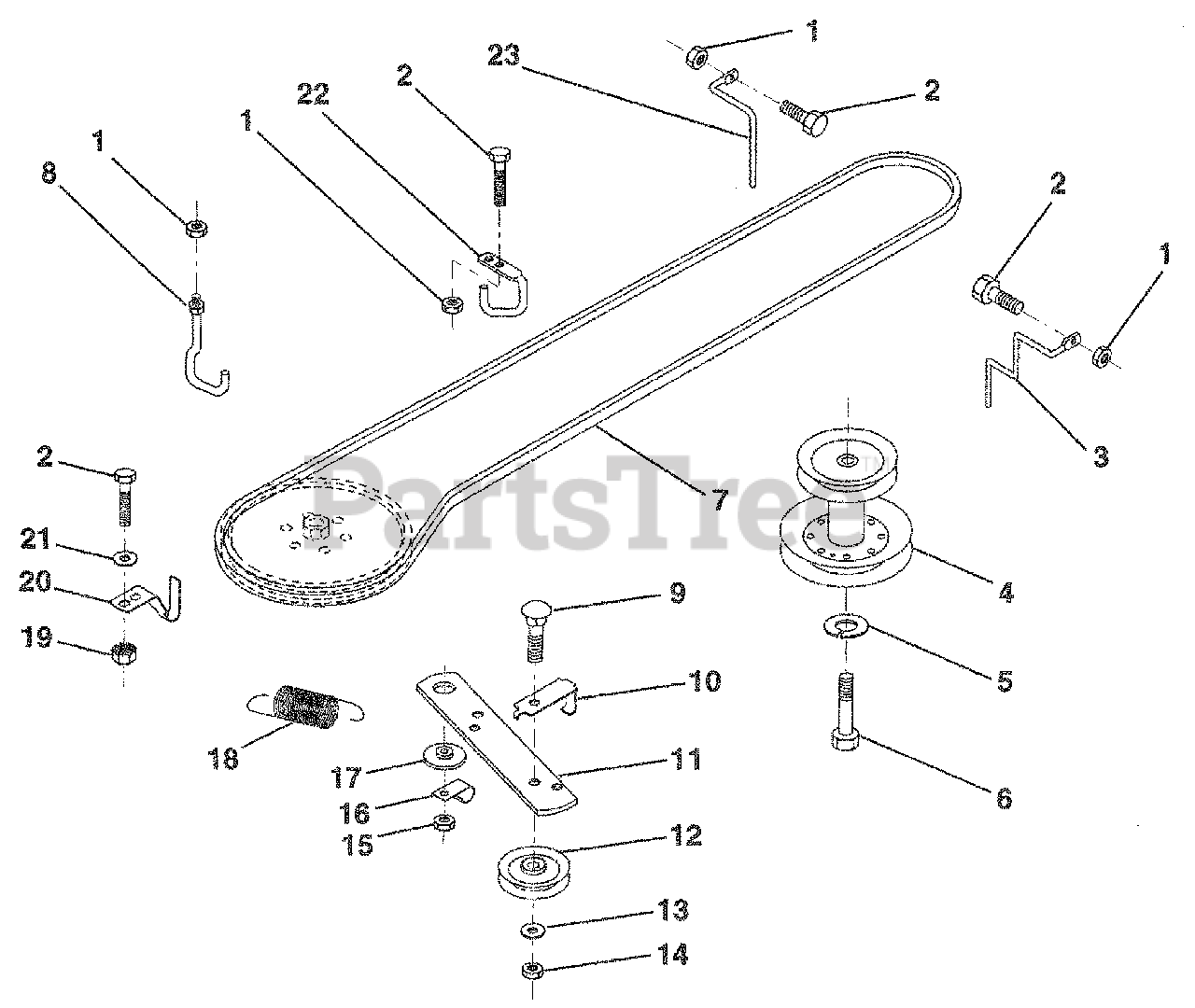

Ground Drive Parts Diagram

  • Title
1

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760512

Bolt, Hex Hd 5/16 -18 UNC x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532131205

Keeper.Mower Drive, R. H.

$

$

Not available

4

Husqvarna 532134828

Pulley, Engine
(Superseded to 532138029)

$42.99

$

Usually ships in 3-10 days

0

5

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

6

Husqvarna 871170744

Bolt, Fin. Hex 7/16-20

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532126520

Traction, V-Belt Drive
(Superseded to 532419271)

$60.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532133356

Keeper, T/A Ground Drive Belt

$

$

Not available

9

Husqvarna 872140612

Bolt, Carr. 3/8 -16 UNC x 1-1/2

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna 5321233396

Keeper, Belt Ground Drive idler

$

$

Currently unavailable

11

Husqvarna 532123395

Arm, Ground Drive Clutch
(Superseded to 532140911)

$

$

Not available

12

Husqvarna 532123674

idler, Flat

$31.99

$

In Stock, only 1 left!

0

13

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 873930600

Nut, Centerlock 3/8 -16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873680600

Nut, Crowniock 3/8 -16 UNC

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532126471

Clip, insulated

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

18

Husqvarna 532131459

Spring Extension

$

$

Not available

19

Husqvarna 873510500

Nut, Keps 5/16-18 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532123891

Keeper, T/A Ground Drive Belt

$

$

Not available

21

Husqvarna 319111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Currently unavailable

22

Husqvarna 532123404

Keeper, Frame Ground Drive Belt

$

$

Not available

23

Husqvarna 532131204

Keeper, Mower Drive, L. H.

$

$

Not available
