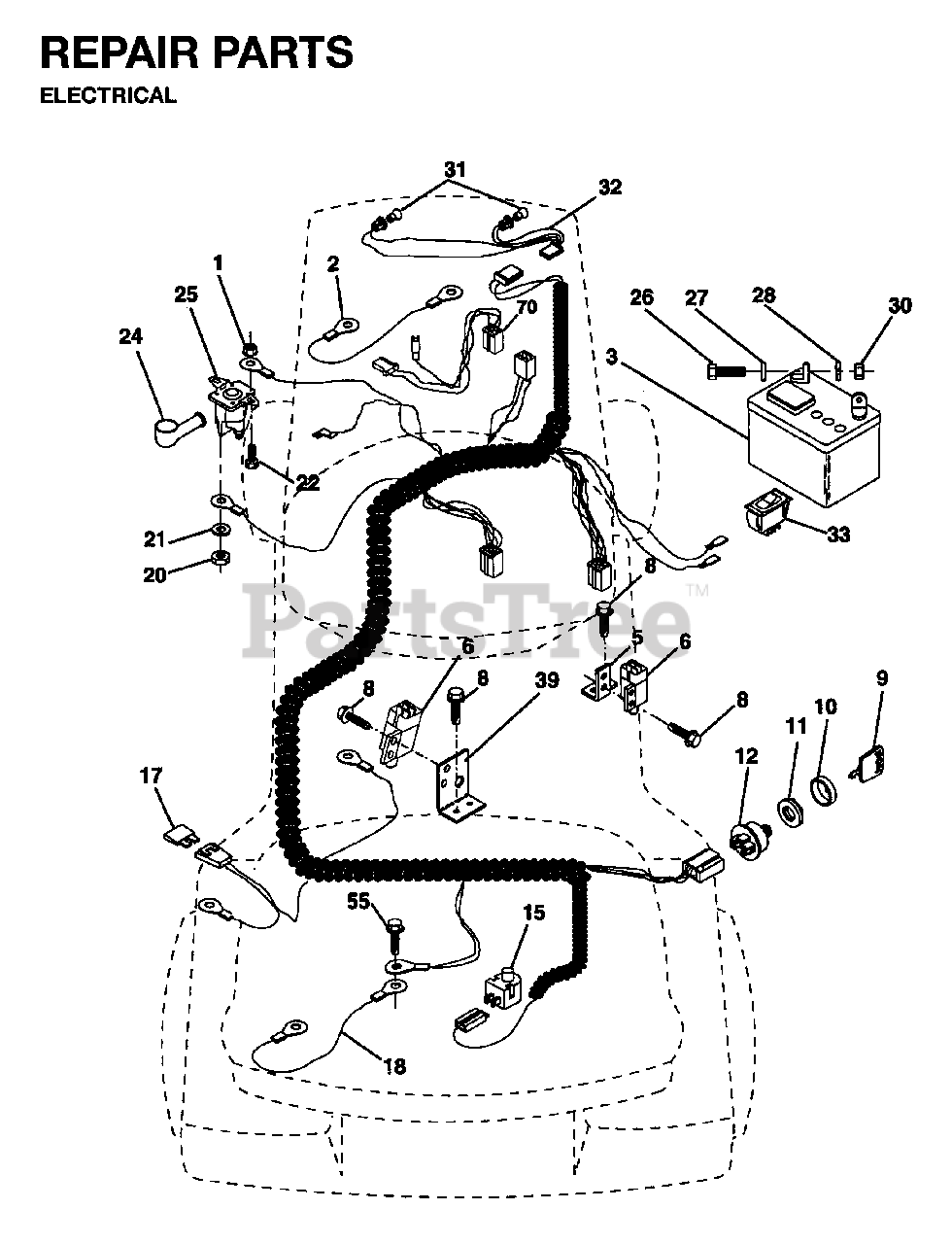

LR 12 - Jonsered Rear-Engine Riding Mower (1995-01) ELECTRICAL Parts Diagram

Rear-Engine Riding Mower

ELECTRICAL Parts Diagram

  • Title
1

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

2

Jonsered 532108423

CABLE ASM

$8.99

$

Usually ships in 3-10 days

0

3

Jonsered 532144924

No Description Available
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

5

Jonsered 532108236

BRACKET LT

$2.99

$

Usually ships in 3-10 days

0

6

Jonsered 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 14

0

9

Jonsered 532140402

KEY-STEEL DELTA
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

10

Jonsered 532141226

COVER SWITCH KEY

$5.99

$

Usually ships in 3-10 days

0

11

Jonsered 532140400

NUT, IGNITION
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

12

Jonsered 532144921

IGNITION SWITCH
(Superseded to 532145499)

$66.99

$

In Stock, only 1 left!

0

15

Jonsered 532121305

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

17

$6.49

$

Usually ships in 3-10 days

0

18

Jonsered 532128353

No Description Available

$3.99

$

Usually ships in 3-10 days

0

20

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

22

Jonsered 874780408

BOLT
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0

24

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

25

Jonsered 532145763

No Description Available
(Superseded to 532109946)

$24.99

$

In Stock, only 2 left!

0

26

$7.49

$

In Stock, only 1 left!

0

27

$2.99

$

Usually ships in 3-10 days

0

28

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

30

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

31

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

32

Jonsered 532136850

HARNESS LIGHT SOCKET

$

$

Not available

33

Jonsered 532110712

SWITCH LT

$9.49

$

In Stock, only 4 left!

0

39

$2.99

$

Usually ships in 3-10 days

0

55

$6.49

$

Usually ships in 3-10 days

0

70

Jonsered 532140413

HARNESS, ENGINE

$

$

Not available
