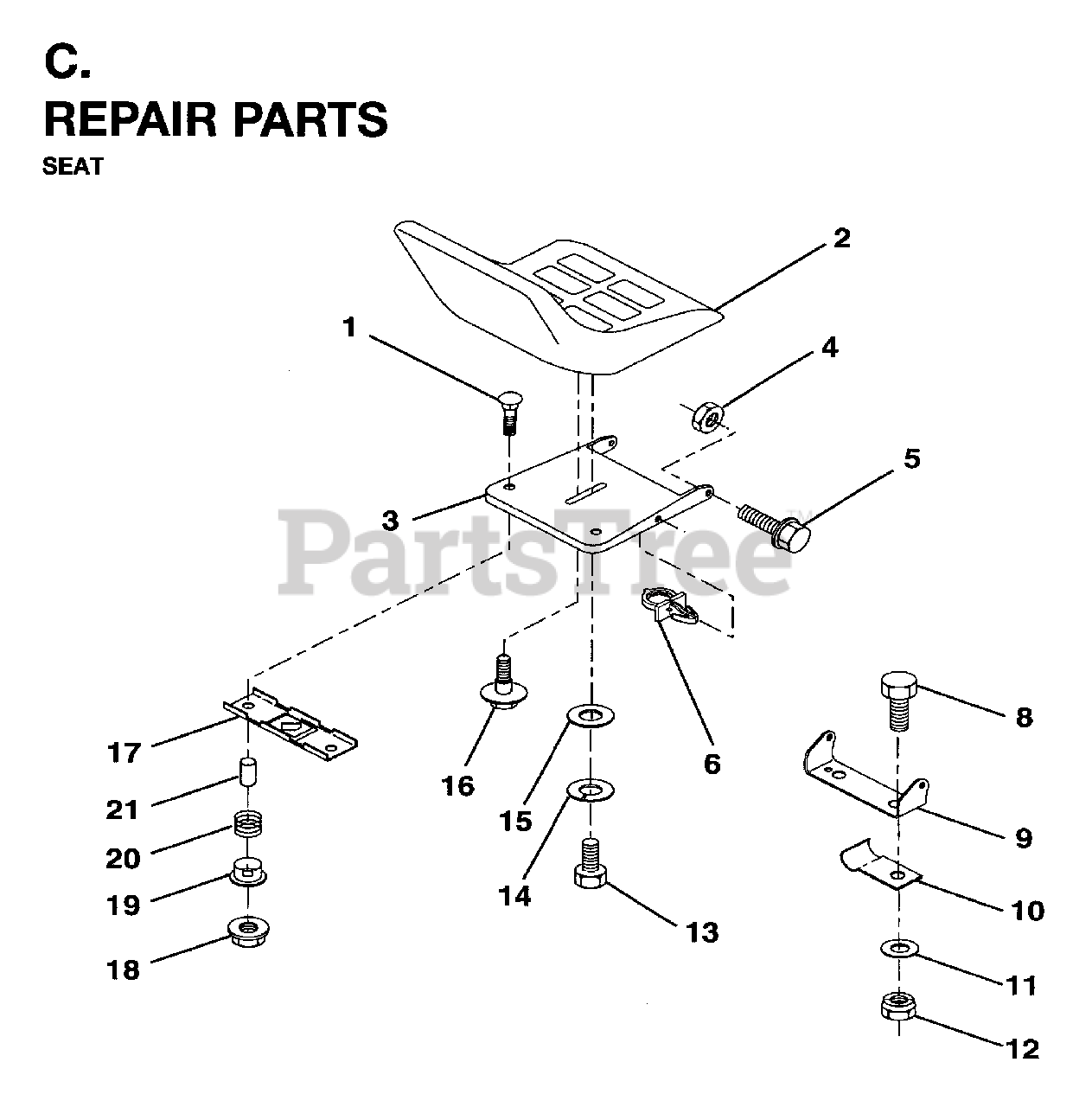

LR 12 C (954820181) - Jonsered Rear-Engine Riding Mower (1996-01) SEAT Parts Diagram

Rear-Engine Riding Mower

SEAT Parts Diagram

  • Title

1

Jonsered 872050411

BOLT CARRIAGE 1/4-20X1 3/8

$

$

Not available

2

Jonsered 532127427

SEAT
(Superseded to 532140119)

$206.99

$

Usually ships in 3-10 days

0

3

Jonsered 532140552

SEAT PAN
(Superseded to 532155925)

$21.99

$

Usually ships in 3-10 days

0

4

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

5

Jonsered 532139888

BOLT

$6.49

$

In Stock, only 1 left!

0

6

Jonsered 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

8

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

9

Jonsered 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

12

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 8

0

13

Jonsered 874780814

BOLT
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

14

Jonsered 810040800

LOCKWASHER

$6.99

$

Usually ships in 3-10 days

0

15

Jonsered 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

16

Jonsered 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0

17

Jonsered 532121246

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

18

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

19

Jonsered 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

20

Jonsered 532121250

SPRING

$7.49

$

Usually ships in 3-10 days

0

21

Jonsered 532134300

SPACER SPLIT 28X.96

$7.49

$

Usually ships in 3-10 days

0
