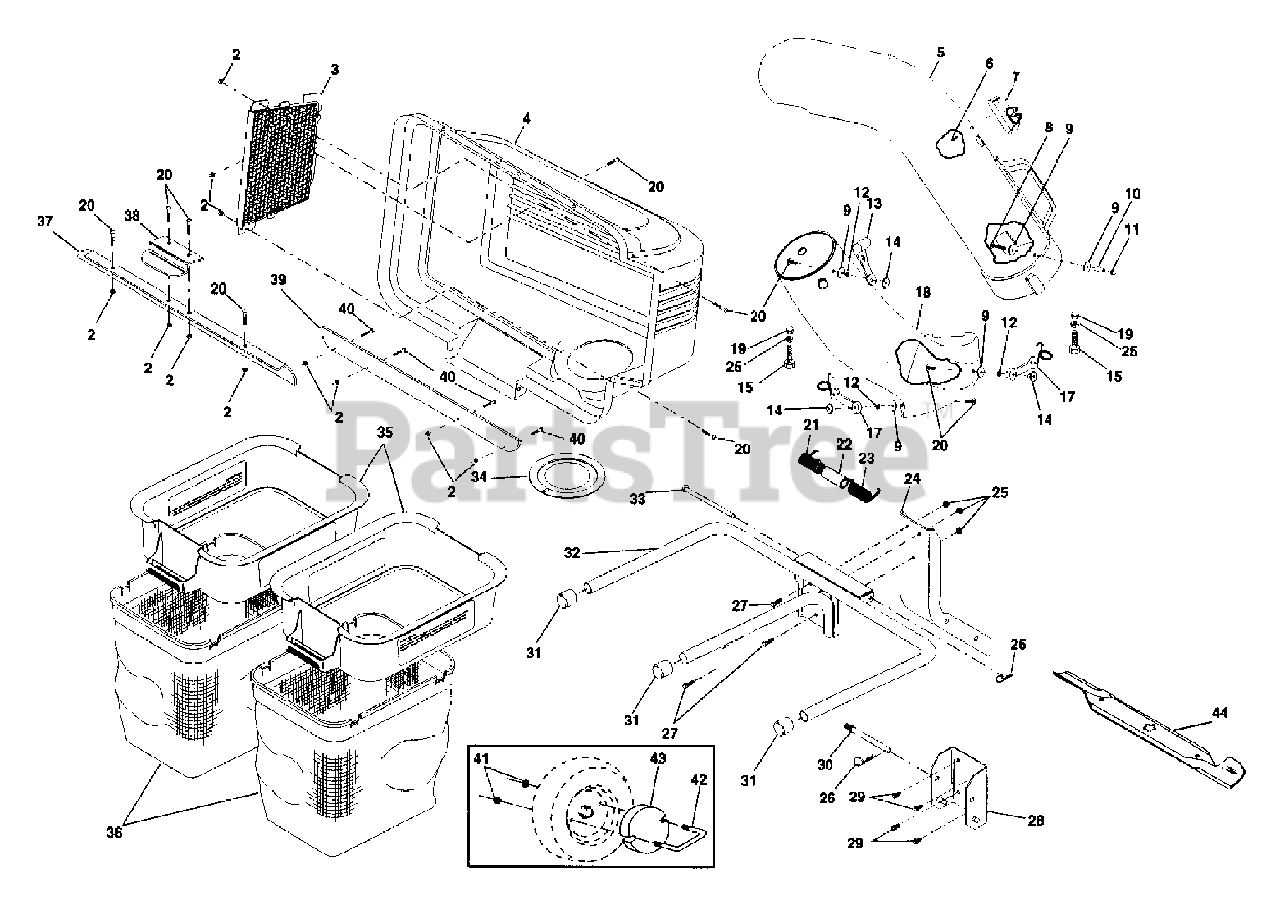

LR 12 (954003411) - Jonsered Rear-Engine Riding Mower (1997-04) BAGGER Parts Diagram

Rear-Engine Riding Mower

BAGGER Parts Diagram

  • Title
2

$6.49

$

Usually ships in 3-10 days

0

3

Jonsered 532127533

COVER SCREEN

$18.99

$

Usually ships in 3-10 days

0

4

Jonsered 532140654

COVER BAGGER TOP
(Superseded to 532160274)

$121.99

$

Usually ships in 3-10 days

0

5

Jonsered 532128598

UPPER CHUTE

$56.99

$

Usually ships in 3-10 days

0

$5.99

$

Usually ships in 3-10 days

0

7

Jonsered 532140572

INDICATOR DUMP BAG

$8.99

$

In Stock, only 1 left!

0

8

Jonsered 532087175

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

$4.99

$

Usually ships in 3-10 days

0

10

Jonsered 532007206

SPACER LT

$7.49

$

In Stock, Qty 6

0

11

Jonsered 532060867

NUT
(Superseded to 60867)

$

$

Not available

12

Jonsered 810071000

LOCKWASHER

$4.99

$

In Stock, Qty 11

0

13

Jonsered 532109808

HOOD LATCH T

$6.99

$

In Stock, Qty 14

0

14

Jonsered 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

15

Jonsered 874930516

BOLT GT
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532130758

LATCH ASSEMBLY
(Superseded to 532160793)

$

$

Not available

18

Jonsered 532128599

CHUTE LOWER 36"

$133.99

$

Usually ships in 3-10 days

0

19

Jonsered 532133841

ACORN NUT

$2.99

$

Usually ships in 3-10 days

0

20

Jonsered 871181010

No Description Available

$

$

Not available

21

Jonsered 532132796

SPRING COVER LH

$6.99

$

In Stock, only 1 left!

0

22

Jonsered 532133235

SPACER.COVER.BAGGER

$7.49

$

In Stock, only 1 left!

0

23

Jonsered 532132983

SPRING COVER RH

$6.99

$

In Stock, only 1 left!

0

24

Jonsered 532127720

SUPPORT POST

$

$

Not available

25

Jonsered 532063124

No Description Available
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

26

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

27

Jonsered 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

26

Jonsered 532130689

No Description Available

$

$

Not available

29

$6.49

$

Usually ships in 3-10 days

0

30

Jonsered 532131137

SUPPORT POST PIN

$13.99

$

In Stock, only 2 left!

0

31

Jonsered 532134496

TUBING PLUG
(Superseded to 532174083)

$7.49

$

In Stock, only 3 left!

0

32

Jonsered 532126919

BAGGER FRAME

$

$

Not available

33

Jonsered 532128600

HINGE PIN
(Superseded to 532192786)

$17.99

$

Usually ships in 3-10 days

0

34

Jonsered 532127534

GASKET COVER

$13.99

$

Usually ships in 3-10 days

0

35

Jonsered 532129585

CONTAINER TOP
(Superseded to 532183286)

$34.99

$

Usually ships in 3-10 days

0

36

Jonsered 532132431

CONTAINER BOTTOM
(Superseded to 532400226)

$87.99

$

In Stock, only 2 left!

0

37

Jonsered 532132256

SEAL, COVER

$

$

Not available

38

Jonsered 532130895

LATCH CER38

$7.49

$

Usually ships in 3-10 days

0

39

Jonsered 532135495

SEAL STRIP
(Superseded to 532155042)

$18.99

$

In Stock, only 1 left!

0

40

Jonsered 871161010

SCREW
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

41

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

42

$

$

Not available

43

Jonsered 532123635

WEIGHT, FRT WHEEL

$

$

Not available

44

Jonsered 531013126

No Description Available

$

$

Not available
