LR 12 (954002701-D) - Husqvarna Lawn Tractor (1996-01) Steering Wheel Parts Diagram

Lawn Tractor

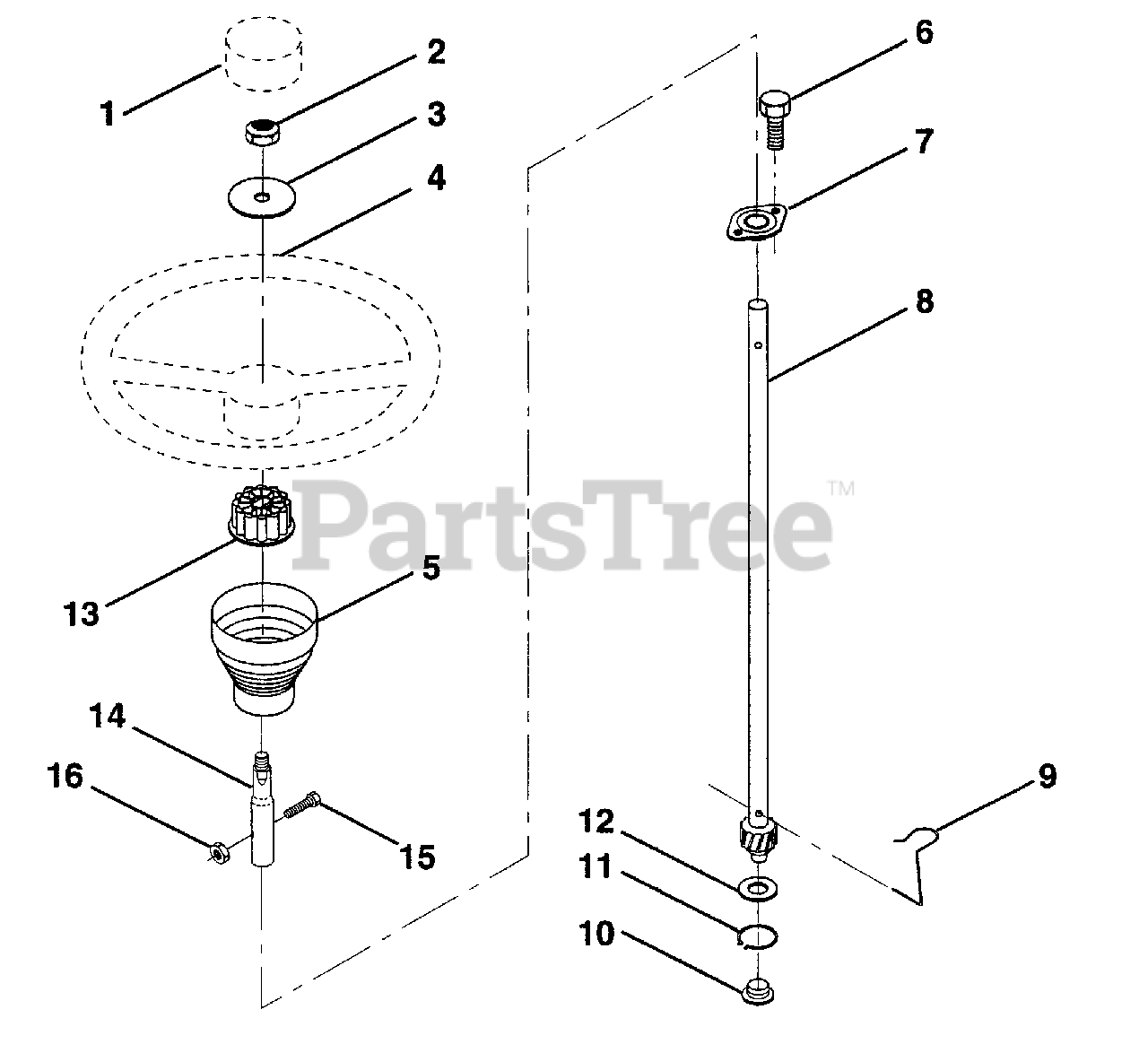

Steering Wheel Parts Diagram

  • Title

1

Husqvarna 532126805

Insert, Steering Wheel
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532124701

Locknut 3/8-24 UNF
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 819133808

Washer 12/32 x 2-3/8 x 8 Gauge
(Superseded to 819133812)

$

$

Not available

4

Husqvarna 532121472

Steering Wheel
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532121897

Sleeve, Steering

$

$

Not available

6

Husqvarna 817431008

Screw, Hex Head #10-16 x 1/2
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532102803

Bushing, Steering
(Superseded to 532155107)

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532147391

Shaft, Steering
(Superseded to 532148966)

$

$

Not available

9

Husqvarna 532124210

Clip, Steering

$

$

Not available

10

Husqvarna 532123438

Bushing, Lower, Steering

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 812000045

Ring, Retaining

$7.49

$

In Stock, only 4 left!

0

12

Husqvarna 819211616

Washer 21/32 x 1 x 16 Gauge

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532104820

Adaptor, Steering Wheel

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532147392

Extension Shaft Steering
(Superseded to 532154307)

$42.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874780520

Bolt Fin Hex 5/16-18 Unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

Nut, Lock Hex w/Ins 5/16-18 Unc

$3.99

$

Usually ships in 3-10 days

0
