LR 12 (954002701-D) - Husqvarna Lawn Tractor (1996-01) Ground Drive Parts Diagram

Lawn Tractor

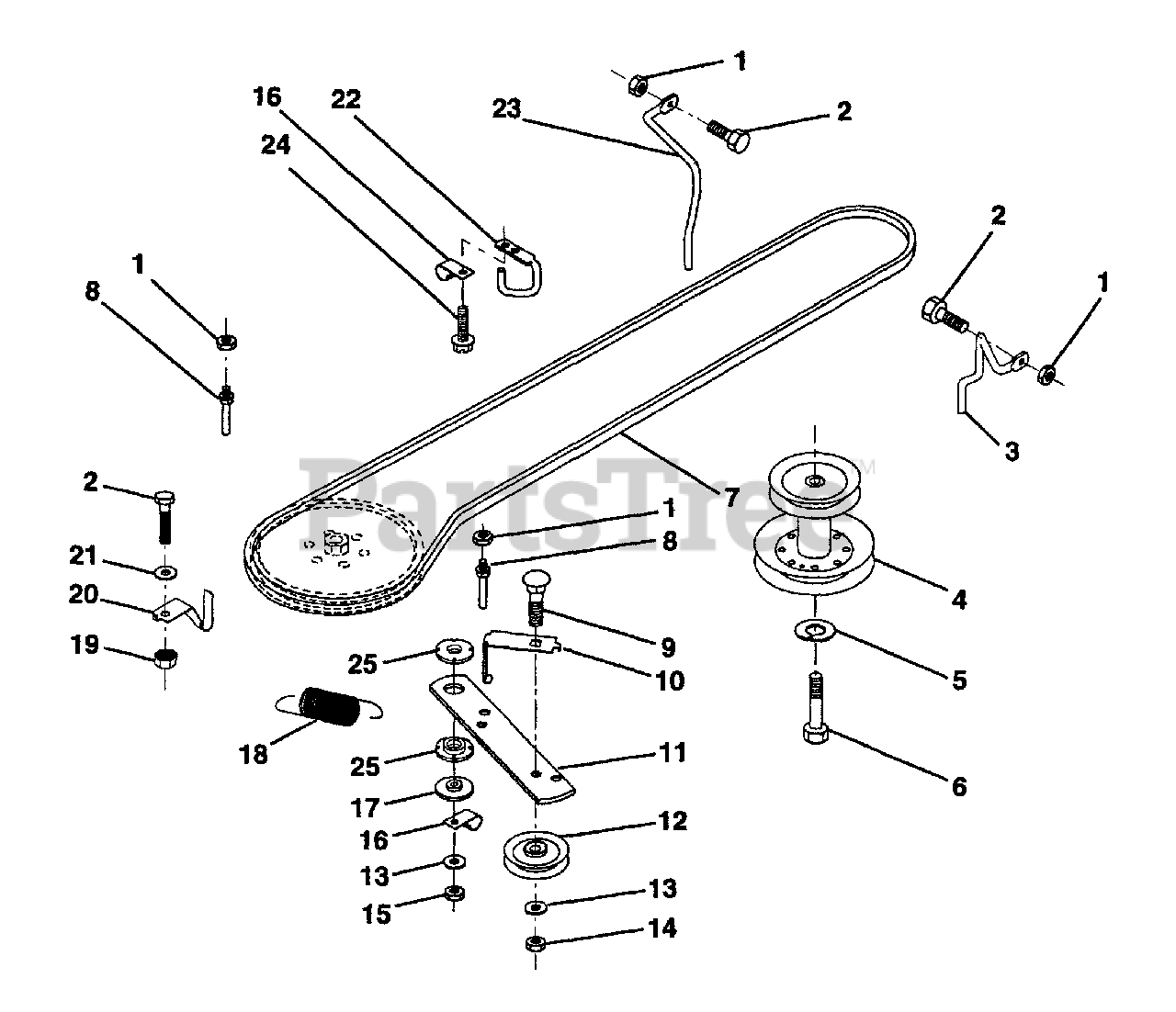

Ground Drive Parts Diagram

  • Title

1

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760512

Bolt, Hex Head 5/16-18 UNC x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532141341

Keeper, Mower Drive, R.H.

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532138029

Pulley, Engine
(Superseded to 532140189)

$42.99

$

Usually ships in 3-10 days

0

5

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

6

Husqvarna 871170744

Bolt, Hex Hd. 7/16-20 UNF Grade 5

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124525

Traction, V-Belt Drive

$48.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532123405

Keeper, T/A, Ground Drive Belt
(Superseded to 532156109)

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 872140612

Bolt, Carriage 3/8-16 UNC x 1-1/2

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532123396

Keeper, Ground Drive Belt Idler

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532150926

Arm, Ground Drive Clutch

$

$

Not available

12

Husqvarna 532123674

Idler, Flat

$31.99

$

In Stock, only 1 left!

0

13

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 873930600

Nut, Hex, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873680600

Nut, Hex, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

16

UNKNOWN

$

$

Not available

17

Husqvarna 532150932

Spacer, Retainer

$

$

Not available

18

Husqvarna 532131459

Spring, Extension

$

$

Not available

19

Husqvarna 873510500

Nut, Hex, Keps 5/16-18 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532139919

Keeper, T/A, Ground Drive Belt

$2.99

$

Usually ships in 3-10 days

0

21

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Gauge

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532123404

Keeper, Frame Ground Drive Belt

$

$

Not available

23

Husqvarna 532146792

Keeper, Belt LH

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 817720408

Screw, THD Cut
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532150935

Bushing Nylon

$

$

Not available

35

Husqvarna 532126472

Clip Insulated

$

$

Not available
