LR 12 (954002701-D) - Husqvarna Lawn Tractor (1996-01) Brake/Rear Mower Lift Assembly Parts Diagram

Lawn Tractor

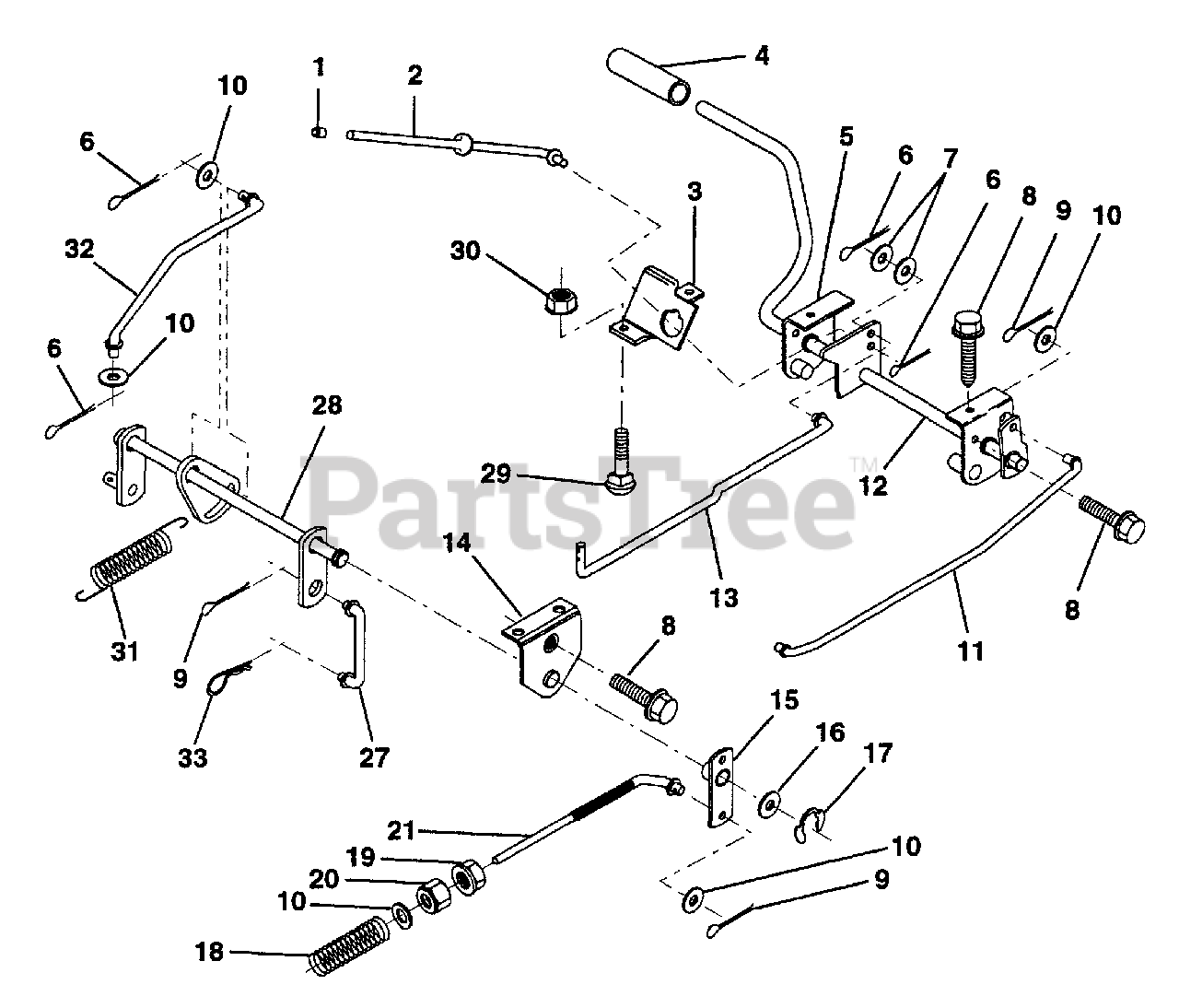

Brake/Rear Mower Lift Assembly Parts Diagram

  • Title
1

Husqvarna 532071673

Cap, Plunger

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532123436

Rod, Parking Brake

$

$

Not available

3

Husqvarna 532123437

Bracket, Parking Brake

$

$

Not available

4

Husqvarna 532008883

Cover, Pedal
(Superseded to 510089501)

$6.49

$

In Stock, Qty 14

0

5

Husqvarna 532132205

Bracket, Clutch/Brake Pedal, L.H.

$

$

Not available

6

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

7

Husqvarna 819131016

Washer 13/32 x 5/8 x 16 Gauge

$6.49

$

In Stock, Qty 5

0

8

Husqvarna 817490508

Screw, Hex Head, Thd., Roll. 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532123543

Rod, Brake, Front

$

$

Not available

12

Husqvarna 532139934

Assembly, Clutch/Brake Pedal

$

$

Not available

13

Husqvarna 532123394

Rod, Clutch

$

$

Not available

14

Husqvarna 532121978

Bracket, Lift Shaft

$

$

Not available

15

Husqvarna 532133332

Assembly, Brake, Pivot, Arm

$

$

Not available

16

Husqvarna 819251816

Washer 25/32 x 1-1/8 x 16 Gauge

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 812000034

Ring, Klip

$

$

Not available

18

Husqvarna 532151332

Spring, Brake Rod

$6.49

$

In Stock, only 1 left!

0

19

Husqvarna 873350600

Nut, Hex, Jam 3/8-16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 873800600

Nut, Lock Hex w/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532131460

Rod, Brake, Rear
(Superseded to 532131461)

$13.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532136780

Link, Lift, Rear

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532140777

Assembly, Rear Mower Lift

$

$

Not available

29

Husqvarna 872110506

Bolt, Rd Hd Sqnk 5/16-18 UNC

$7.49

$

In Stock, Qty 20+

0

30

Husqvarna 873510500

Nut, Hex, Keps 5/16-16 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532133095

Spring, Counterbalance

$

$

Not available

32

Husqvarna 532133721

Link, Lift Lever

$

$

Not available

33

Husqvarna 532127670

Retainer Spring

$

$

Currently unavailable
