LR 12 (954002701-B) - Husqvarna Lawn Tractor (1994-10) Mower Lift Lever Parts Diagram

Lawn Tractor

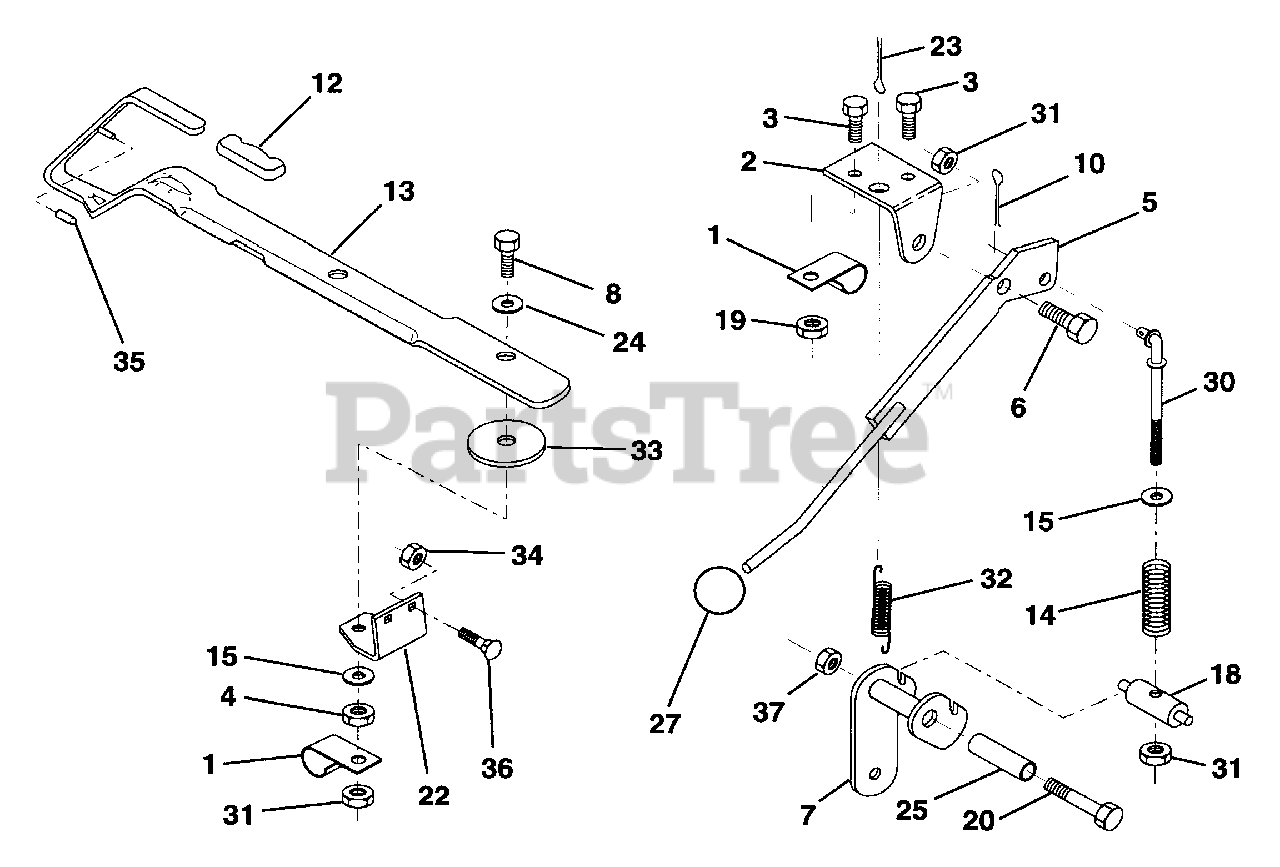

Mower Lift Lever Parts Diagram

  • Title
1

Husqvarna 532126470

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532122018

Bracket, Mower Clutch

$

$

Not available

3

Husqvarna 871110408

Bolt, Hex Head, Fin. 1/4-20 UNC x 1/2 Grade 5
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873800600

Nut, Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532145187

Assembly, Clutch Lever

$

$

Not available

6

Husqvarna 532106451

Bolt, Shoulder

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532141435

Assembly, Mower Clutch Arm

$

$

Not available

8

Husqvarna 874930624

Bolt, Hex Head 3/8-16 UNC x 1-1/2

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

12

Husqvarna 532122027

Handle, Lift Lever

$

$

Not available

13

Husqvarna 532136658

Assembly, Lift Handle

$

$

Not available

14

Husqvarna 532133939

Spring, Compression

$

$

Not available

15

Husqvarna 819131616

Washer 13/32 x 1 x 11 Gauge
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532135107

Trunnion, Threaded 3/8-16

$

$

Not available

19

Husqvarna 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

20

Husqvarna 874760644

Bolt, Hex Head, Fin. 3/8-16 UNC x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532132561

Bracket, Lift Lever

$

$

Not available

23

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

24

Husqvarna 532007672

Washer 25/64 x 1-1/4 x 12 Gauge

$

$

Not available

25

Husqvarna 532121933

Tube, Spacer

$

$

Not available

$

$

Not available

30

Husqvarna 532135039

Rod, Tension, Clutch

$

$

Not available

31

Husqvarna 873930600

Nut, Centerlock
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532133435

Spring, Extension, Return

$

$

Not available

33

Husqvarna 532062333

Washer .390 x 1.437 x .074

$

$

Not available

34

Husqvarna 873800500

Nut, Crownlock 5/16-18

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532133603

Cap, Vinyl, Red

$2.99

$

Usually ships in 3-10 days

0

36

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0
